TE Connectivity 1469169-1 Equivalent & Substitute Parts

Part Overview

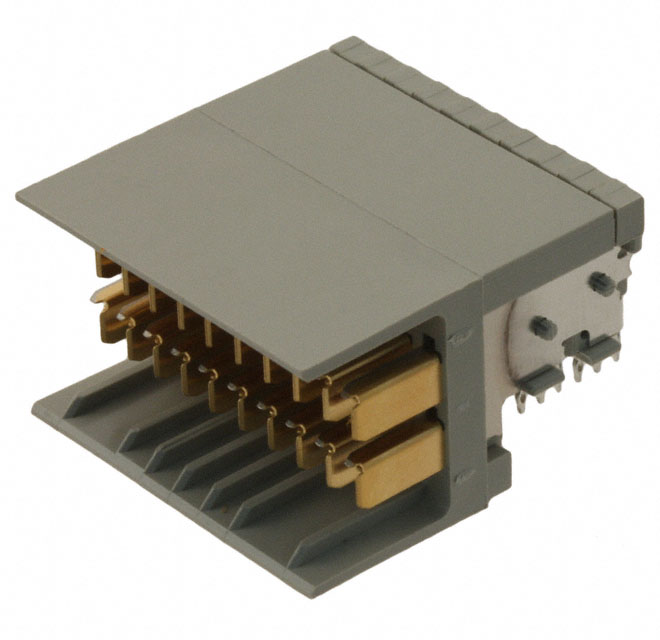

The TE Connectivity 1469169-1 is a 60-position high-speed backplane connector header with male pins and blades, designed for board edge mounting in through-hole applications. This connector features a right-angle configuration with 4 rows and 10 columns, utilizing a 0.098" (2.50mm) pitch. The part is classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

1469169-1

TE Connectivity AMP ConnectorsIn Stock: 9651469169-1 Datasheet

Current PartRFQ

6469169-1

TE Connectivity AMP ConnectorsIn Stock: 14066469169-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1469169-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Number of positions: 60
• Pitch: 0.098" (2.50mm)
• Contact layout: 40 Signal, 20 Ground
• Voltage rating: 250V
• Operating temperature range: -65°C ~ 105°C

Mechanical Compatibility Parameters:

• Connector type: Header, Male Pins and Blades
• Mounting type: Board Edge, Through Hole, Right Angle
• Number of rows: 4
• Number of columns: 10
• Termination method: Press-Fit

Regulatory Compliance Parameters:

• Material flammability rating: UL94 V-0
• Moisture sensitivity level: 1 (Unlimited)

The substitute part 6469169-1 maintains full equivalence across all critical electrical, mechanical, and regulatory parameters while offering the advantage of active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 6469169-1 is the direct functional equivalent to the obsolete 1469169-1. Both components share identical electrical and mechanical specifications across all critical parameters, ensuring direct substitution without design modification.

The 6469169-1 offers significant advantages for new designs and ongoing production:

Product Status: The 6469169-1 maintains active product status, ensuring long-term availability and supply chain continuity. The 1469169-1 is classified as obsolete and subject to discontinuation.

Regulatory Compliance: The 6469169-1 is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements. The 1469169-1 is RoHS non-compliant and REACH affected, presenting compliance challenges for new applications and markets with strict environmental regulations.

Enhanced Specifications: The 6469169-1 provides documented contact finish specifications (gold plating at 30.0µin thickness) and current rating (0.700A), offering greater design certainty and performance documentation compared to the main part.

Packaging: The 6469169-1 is supplied in tube packaging, facilitating automated assembly and inventory management.

For applications currently using the 1469169-1, transition to the 6469169-1 is recommended to ensure regulatory compliance, maintain supply availability, and benefit from enhanced product documentation.

Frequently Asked Questions (FAQ)

Q: Can the 6469169-1 be used as a direct replacement for the 1469169-1 in existing designs?

A: Yes. The 6469169-1 is electrically and mechanically equivalent to the 1469169-1 across all critical parameters, including position count, pitch, connector type, mounting configuration, and contact layout. No design modifications are required for substitution.

Q: What are the key differences between these two parts?

A: The primary differences are product status and regulatory compliance. The 1469169-1 is obsolete and RoHS non-compliant, while the 6469169-1 is active and ROHS3 compliant. The 6469169-1 also provides documented contact finish specifications and current rating information.

Q: Why is the 1469169-1 classified as obsolete?

A: Obsolescence is determined by the manufacturer based on market demand, product lifecycle, and regulatory requirements. The availability of the active equivalent 6469169-1 provides a clear migration path for users of the obsolete part.

Q: Are there any compatibility concerns when switching from 1469169-1 to 6469169-1?

A: No compatibility concerns exist. Both parts maintain identical electrical specifications (voltage rating, operating temperature range, contact layout) and mechanical specifications (mounting type, pitch, row/column configuration). The parts are functionally interchangeable.

Q: What is the significance of the ROHS3 compliance on the 6469169-1?

A: ROHS3 compliance indicates that the 6469169-1 meets current European Union Restriction of Hazardous Substances regulations. This certification is required for products sold in EU markets and is increasingly required by global customers. The 1469169-1, being RoHS non-compliant, may face restrictions in certain markets.

Q: Does the gold contact finish on the 6469169-1 affect performance compared to the 1469169-1?

A: The gold contact finish on the 6469169-1 provides enhanced corrosion resistance and contact reliability. Both parts are designed for the same electrical and mechanical performance within the specified operating parameters.

Q: What packaging options are available for the 6469169-1?

A: The 6469169-1 is supplied in tube packaging, which is standard for automated assembly processes and provides efficient inventory management.

Q: Are there any lead time or availability differences between these parts?

A: The 6469169-1 is an active product with established supply channels, while the 1469169-1 is obsolete and subject to limited availability. For new orders and ongoing production, the 6469169-1 is the recommended choice for supply continuity.
