TE Connectivity 146130-7 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 146130-7 is a surface mount rectangular connector header with 16 positions at 2.54mm pitch, configured as a 2-row breakaway header with male pins. This component is classified as obsolete within the AMPMODU Mod II series. The part features gold-plated mating contacts, tin-lead plated posts, and operates across a temperature range of -65°C to 125°C with a 3A current rating per contact at 30VAC.

Due to the obsolete product status of the 146130-7, equivalent and substitute parts from active manufacturers are necessary to ensure design continuity, supply chain reliability, and compliance with current regulatory standards including RoHS3 requirements.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-65°C ~ 125°C
Current Rating	3A
Voltage Rating	30VAC
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 146130-7 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 16
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header, Breakaway
Contact Type: Male Pin
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Push-Pull
Operating Temperature Range: -65°C ~ 125°C minimum
Current Rating: 3A minimum per contact
Material Flammability Rating: UL94 V-0

Acceptable Variations:

Contact Finish - Mating: Gold or Tin (both acceptable for electrical compatibility)
Contact Finish Thickness - Mating: Variations within specification range
Insulation Material: Liquid Crystal Polymer (LCP) or Thermoplastic (both acceptable)
Contact Material: Copper Alloy or Phosphor Bronze (both acceptable)
Packaging: Tube, Bulk, or Tape & Reel (application-dependent)
Product Status: Active preferred over obsolete

Substitute parts are grouped by packaging type and contact finish specification to facilitate selection based on procurement and assembly requirements.

Parameter Comparison

Parameter	146130-7 (Main)	5-146130-7	95278-101-16LF	95278-101B16LF	95278-401-16LF	95278-401A16LF	95278-401B16LF	95278-801-16LF	95278-801A16LF	95278-801B16LF	TSM-108-01-F-DV
Manufacturer	TE Connectivity	TE Connectivity	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Amphenol ICC (FCI)	Samtec Inc.
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Cuttable
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	16	16	16	16	16	16	16	16	16	16	16
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.230" (5.84mm)	0.230" (5.84mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.232" (5.90mm)	0.230" (5.84mm)
Insulation Height	0.090" (2.29mm)	0.090" (2.29mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Gold	Gold	Gold, GXT™	Gold, GXT™	Tin	Tin	Tin	Gold, GXT™	Gold, GXT™	Gold, GXT™	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	78.7µin (2.00µm)	78.7µin (2.00µm)	78.7µin (2.00µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	3.00µin (0.076µm)
Contact Material	Copper Alloy	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Liquid Crystal Polymer (LCP)
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-55°C ~ 125°C
Current Rating	3A	3A	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	3A per Contact	Not specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant	ROHS3 Compliant

Engineering Selection Recommendations

Direct Equivalent (Recommended Primary Choice):

The TE Connectivity 5-146130-7 is the direct equivalent to the obsolete 146130-7. This part maintains identical electrical and mechanical specifications while offering active product status and ROHS3 compliance. The 5-146130-7 is functionally interchangeable with the original part and is the preferred selection for design continuity.

Alternative Substitutes (Amphenol ICC BERGSTIK® Series):

The Amphenol ICC BERGSTIK® series connectors (95278 base part number variants) provide functional equivalence across all critical parameters. These parts are available in multiple packaging configurations and contact finish options:

Gold-plated variants (95278-101-16LF, 95278-101B16LF, 95278-801-16LF, 95278-801A16LF, 95278-801B16LF): Suitable for applications requiring gold mating contacts for enhanced corrosion resistance and signal integrity.
Tin-plated variants (95278-401-16LF, 95278-401A16LF, 95278-401B16LF): Suitable for cost-sensitive applications where tin plating meets electrical requirements.

All BERGSTIK® variants feature active product status, RoHS compliance, and identical pitch, position count, and row spacing specifications. Packaging options include Bulk, Tube, and Tape & Reel configurations to accommodate different procurement and assembly workflows.

Alternative Substitute (Samtec TSM Series):

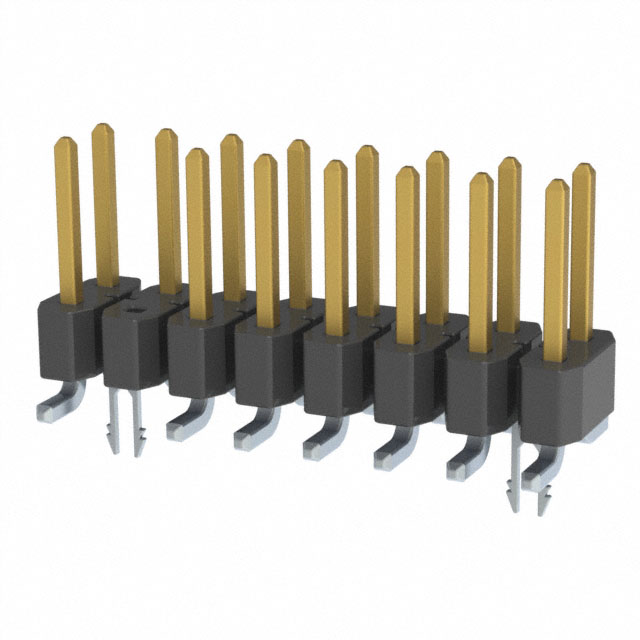

The Samtec TSM-108-01-F-DV offers functional equivalence with cuttable header design capability. This part maintains the 2.54mm pitch, 16-position, 2-row configuration with surface mount solder termination. The TSM series features ROHS3 compliance and active product status. The operating temperature range extends to -55°C minimum (versus -65°C for the main part), which is acceptable for most applications. The cuttable design provides additional flexibility for custom connector configurations.

Compliance Considerations:

All recommended substitute parts carry active product status and RoHS compliance certifications, addressing the regulatory limitations of the obsolete 146130-7. Selection between TE Connectivity 5-146130-7, Amphenol ICC BERGSTIK® variants, or Samtec TSM-108-01-F-DV should be based on packaging requirements, contact finish specifications, and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 5-146130-7 be used as a direct replacement for the 146130-7?

A: Yes. The 5-146130-7 is the direct equivalent with identical electrical and mechanical specifications. It maintains the same 16-position, 2-row configuration at 2.54mm pitch, surface mount solder termination, and push-pull fastening. The primary differences are active product status and ROHS3 compliance.

Q: What are the key differences between the TE Connectivity 5-146130-7 and Amphenol ICC BERGSTIK® variants?

A: The primary differences are contact material (Copper Alloy versus Phosphor Bronze), insulation material (LCP versus Thermoplastic), and contact finish thickness options. All variants maintain identical pitch, position count, row spacing, mounting type, and operating temperature range. The choice between these options depends on application-specific requirements for contact material properties and insulation characteristics.

Q: Are there packaging differences between the substitute parts?

A: Yes. The 5-146130-7 is supplied in Tube packaging. Amphenol ICC BERGSTIK® variants are available in Bulk, Tube, or Tape & Reel configurations. Samtec TSM-108-01-F-DV is supplied in Tube packaging. Selection should be based on procurement volume and assembly process requirements.

Q: What is the significance of contact finish variations (Gold versus Tin)?

A: Contact finish affects corrosion resistance and signal integrity. Gold-plated contacts (30.0µin or 15.0µin thickness) provide superior corrosion resistance and are preferred for applications requiring long-term reliability in harsh environments. Tin-plated contacts (78.7µin thickness) are suitable for standard applications and offer cost advantages. Both finishes meet the electrical requirements of the 3A current rating and 30VAC voltage specification.

Q: Can the Samtec TSM-108-01-F-DV be used in place of the 146130-7?

A: Yes, with one consideration. The TSM-108-01-F-DV operates across -55°C to 125°C, whereas the 146130-7 operates across -65°C to 125°C. For applications requiring operation below -55°C, the TSM series is not suitable. For all other applications, the TSM-108-01-F-DV provides functional equivalence with identical pitch, position count, and row spacing.

Q: What is the difference between breakaway and cuttable header designs?

A: Breakaway headers feature pre-scored sections that allow individual connector positions to be separated by breaking along defined lines. Cuttable headers, such as the Samtec TSM-108-01-F-DV, allow custom cutting to create connectors of any desired position count. Both designs maintain the same electrical and mechanical interface specifications.

Q: Are all substitute parts RoHS compliant?

A: Yes. All recommended substitute parts carry RoHS compliance certifications (ROHS3 or RoHS Compliant status). The original 146130-7 is RoHS non-compliant, making compliance upgrade a key advantage of substitution.

Q: What is the significance of the contact finish thickness variations?

A: Contact finish thickness affects durability and wear resistance. Thicker finishes (78.7µin for tin, 30.0µin for gold) provide greater protection against wear from repeated mating cycles. Thinner finishes (15.0µin for gold, 3.00µin for gold) reduce material cost while maintaining electrical performance for standard application cycles. Selection depends on expected mating cycle frequency and environmental exposure.

Q: Can these connectors be used for board-to-board or cable applications?

A: The TE Connectivity 146130-7 and 5-146130-7 are specified for both board-to-board and cable applications. The Amphenol ICC BERGSTIK® variants and Samtec TSM-108-01-F-DV are specified for board-to-board applications. Verify application requirements before selection.

Q: What is the moisture sensitivity level (MSL) for these parts?

A: All recommended substitute parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity and no special storage or handling requirements.
