Phoenix Contact 1460286 Heavy Duty Connector Hood - Equivalent & Substitute Parts

Part Overview

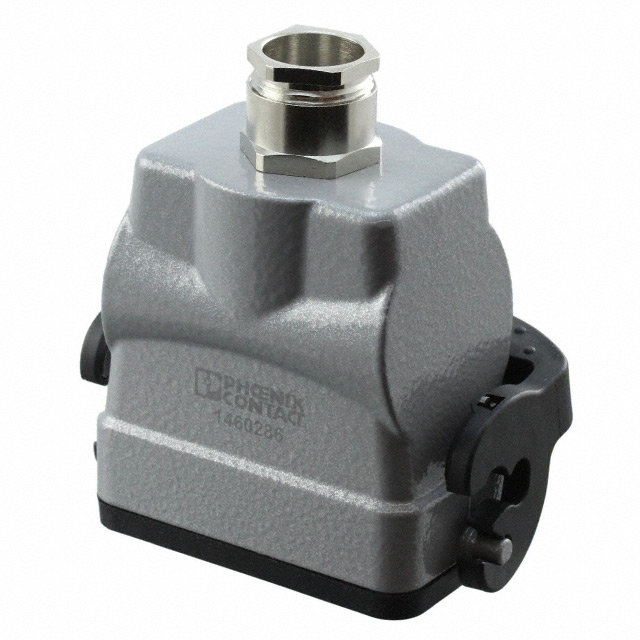

The Phoenix Contact 1460286 is a Heavy Duty Connector Hood - Coupling for bottom entry applications with PG16 thread size and B10 size classification. This component provides IP65 ingress protection (dust tight, water resistant) and operates across -40°C to 125°C. The part is currently obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and new design implementations where legacy compatibility is required.

Substiute Parts

1460286

Phoenix ContactIn Stock: 9971460286 Datasheet

Current PartRFQ

1412587

Phoenix ContactIn Stock: 12181412587 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1460286 is determined by the following critical parameters:

• Connector Type & Style: Must be Hood - Coupling with Bottom Entry configuration
• Size Classification: Must be B10 size
• Thread Size: Must be PG16
• Series Compatibility: HEAVYCON® B series
• Operating Temperature: Must support -40°C to 125°C range
• Housing Material: Aluminum, Die Cast construction
• RoHS Compliance: Must maintain RoHS Compliant status

The substitute part 1412587 maintains all core mechanical and electrical parameters while providing enhanced ingress protection (IP66/IP67/IP69K versus IP65) and improved environmental resistance through salt water resistant features. Both parts share identical size, thread, and temperature specifications, enabling direct functional substitution.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1412587 is the direct functional equivalent for the obsolete 1460286. Selection should be based on the following engineering criteria:

For Direct Replacement: Part 1412587 is suitable where the original 1460286 is no longer available. Both parts maintain identical mechanical interfaces (B10 size, PG16 thread, bottom entry configuration) and thermal operating range (-40°C to 125°C). RoHS compliance is maintained in both versions.

For Enhanced Environmental Performance: Part 1412587 provides superior ingress protection (IP66/IP67/IP69K) compared to the original IP65 rating, with additional salt water resistance. This makes it appropriate for applications requiring higher environmental sealing or corrosive environment exposure.

Compliance Considerations: Both parts carry RoHS Compliant certification and EAR99 ECCN classification, ensuring regulatory alignment for industrial applications.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1412587 directly replace 1460286 in existing installations?

A: Yes. Both parts share identical connector type (Hood - Coupling), size (B10), thread size (PG16), bottom entry style, and operating temperature range (-40°C to 125°C). Mechanical and electrical compatibility is maintained.

Q: What is the primary difference between these two parts?

A: The 1412587 provides enhanced ingress protection (IP66/IP67/IP69K versus IP65) and includes salt water resistant features. The 1412587 also features two locking clips on the hood top compared to one on the 1460286.

Q: Are there any dimensional differences?

A: Minor dimensional variations exist. The 1460286 measures 2.874" L x 1.693" W x 3.071" H, while the 1412587 measures 2.874" L x 1.732" W x 2.953" H. Length and width are effectively identical; height differs by approximately 0.118 inches.

Q: Does the 1412587 maintain the same RoHS compliance status?

A: Yes. Both parts are RoHS Compliant and carry identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications.

Q: What is the inventory status for these parts?

A: The 1460286 (obsolete) has 921 pieces in stock. The 1412587 (active product) has 1143 pieces available, ensuring supply continuity for ongoing applications.

Q: Can the 1412587 be used in applications where IP65 is the specified requirement?

A: Yes. The 1412587 exceeds IP65 specifications with IP66/IP67/IP69K ratings, making it suitable for any application requiring IP65 or lower ingress protection levels.
