Phoenix Contact 1460124 Heavy Duty Connector Hood - Equivalent & Substitute Parts

Part Overview

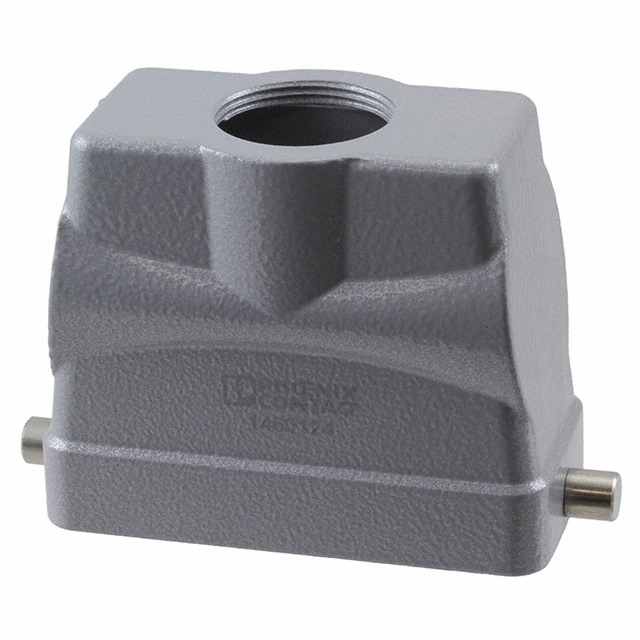

The Phoenix Contact 1460124 is a heavy duty connector hood designed for top entry applications with M32 thread size in the HEAVYCON® B series. This component provides IP65 ingress protection (dust tight, water resistant) and operates across a temperature range of -40°C to 125°C. The part is currently classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations.

Substiute Parts

1460124

Phoenix ContactIn Stock: 7911460124 Datasheet

Current PartRFQ

1412689

Phoenix ContactIn Stock: 11281412689 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1460124 is determined by the following critical parameters:

Primary Matching Criteria:

• Connector type: Hood
• Style: Top entry configuration
• Size designation: B16
• Thread size: M32
• Series compatibility: HEAVYCON® B
• Housing material: Aluminum, die cast construction
• Operating temperature range: -40°C to 125°C minimum

Secondary Compatibility Factors:

• Ingress protection rating equal to or exceeding IP65
• RoHS compliance status
• Locking mechanism: Locking clip on base bottom
• Mechanical dimensions within acceptable tolerance

The substitute part 1412689 maintains all primary matching criteria while providing enhanced ingress protection (IP66/IP67/IP69K) and improved environmental resistance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1412689 serves as a direct functional substitute for the obsolete 1460124 model. Both components share identical mechanical interfaces, electrical specifications, and thermal operating parameters within the HEAVYCON® B series.

The 1412689 provides enhanced environmental protection through upgraded ingress protection ratings (IP66/IP67/IP69K versus IP65), making it suitable for applications requiring higher levels of dust and water ingress resistance. The substitute maintains full compatibility with existing M32 threaded installations and B16 connector configurations.

The 1412689 carries active product status with ROHS3 compliance certification, ensuring long-term availability and regulatory alignment for new designs and system replacements. The substitute is currently in stock with 1041 units available.

Frequently Asked Questions (FAQ)

Q: Can the 1412689 be used as a direct replacement for the 1460124 in existing installations?

A: Yes. Both components maintain identical mechanical mounting interfaces (M32 thread, B16 size, top entry configuration) and identical thermal operating ranges (-40°C to 125°C). The 1412689 provides equal or superior environmental protection.

Q: What is the difference in ingress protection between these two models?

A: The 1460124 provides IP65 protection (dust tight, water resistant). The 1412689 provides IP66/IP67/IP69K protection (dust tight, water resistant, and waterproof). The upgraded rating offers enhanced sealing for applications exposed to high-pressure water jets or submersion conditions.

Q: Are there dimensional differences between the two models?

A: Minor dimensional variation exists in width: the 1460124 measures 1.693" (43.00mm), while the 1412689 measures 1.732" (44.00mm). This 0.039" difference is within standard mechanical tolerance for hood connector applications and does not affect mounting compatibility.

Q: Why is the 1460124 listed as obsolete?

A: The 1460124 has been superseded by the 1412689 within the Phoenix Contact product line. The newer model provides enhanced environmental protection and improved compliance certifications while maintaining full mechanical and electrical compatibility.

Q: What compliance certifications apply to the substitute part?

A: The 1412689 carries ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for electronic component manufacturing and distribution.
