Part Overview

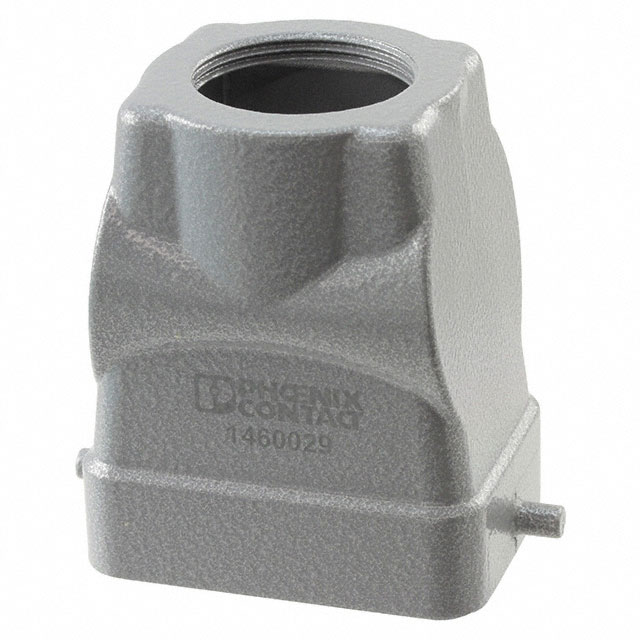

The Phoenix Contact 1460029 is a Heavy Duty Connector Hood for top entry applications with M32 thread size, B6 configuration, and IP65 ingress protection rating. This connector is classified as Obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new installations where equivalent functionality is required. The part operates across a wide temperature range of -40°C to 125°C and is housed in die-cast aluminum with powder coating.

Substiute Parts

1460029

Phoenix ContactIn Stock: 7151460029 Datasheet

Current PartRFQ

1412567

Phoenix ContactIn Stock: 11241412567 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1460029 is determined by the following critical parameters:

• Connector Type & Style: Must be Hood connector with Top Entry configuration
• Size Designation: Must be B6 size class
• Thread Size: Must be M32 thread specification
• Series Compatibility: Must belong to HEAVYCON® B series
• Operating Temperature: Must support -40°C to 125°C range
• Housing Material & Construction: Must be aluminum die-cast construction
• Regulatory Compliance: Must maintain ROHS3 compliance and REACH Unaffected status

The substitute part 1412567 meets all these core substitution criteria while offering enhanced ingress protection (IP66/IP69K versus IP65) and additional salt water resistance features. Both parts share identical mechanical interfaces, thread specifications, and temperature operating ranges, enabling direct functional substitution within the HEAVYCON® B connector ecosystem.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1412567 is the qualified substitute for the obsolete 1460029 connector hood. Both parts maintain identical mechanical and electrical specifications within the HEAVYCON® B series, ensuring direct compatibility in existing installations and new designs.

The 1412567 offers superior ingress protection with IP66/IP69K rating compared to the IP65 specification of the 1460029, providing enhanced dust and water resistance suitable for more demanding environmental conditions. The addition of salt water resistance in the 1412567 extends application capability to corrosive environments.

Both parts maintain full ROHS3 compliance and REACH Unaffected status, satisfying current regulatory requirements. The 1412567 is currently in Active product status with established supply availability, whereas the 1460029 is Obsolete. For new designs and ongoing maintenance applications, the 1412567 is the recommended selection.

Frequently Asked Questions (FAQ)

Q: Can the 1412567 directly replace the 1460029 in existing installations?

A: Yes. Both connectors share identical mechanical interfaces, M32 thread specifications, B6 size designation, and operating temperature ranges (-40°C to 125°C). The 1412567 provides enhanced ingress protection without requiring design modifications.

Q: What is the difference in ingress protection between these parts?

A: The 1460029 provides IP65 protection (dust tight, water resistant). The 1412567 provides IP66/IP69K protection (dust tight, water resistant, and waterproof). The higher rating offers greater protection in wet and high-pressure spray environments.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the 1460029 and 1412567 are ROHS3 compliant and REACH Unaffected, meeting current regulatory standards.

Q: Why is the 1460029 listed as Obsolete?

A: The 1460029 has been discontinued by Phoenix Contact. The 1412567 represents the current active product offering within the HEAVYCON® B series with equivalent core functionality and enhanced environmental protection capabilities.

Q: Are there packaging differences between these parts?

A: The 1460029 was supplied with standard packaging. The 1412567 is supplied in Bulk packaging. Both maintain identical connector specifications and mechanical dimensions.

Q: What is the salt water resistance feature in the 1412567?

A: The 1412567 includes salt water resistance, extending its application suitability to marine and coastal environments where corrosive salt spray exposure is a consideration. The 1460029 does not specify this feature.
