TE Connectivity AMP Connectors 1452329-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1452329-1 is a 2-position rectangular connector receptacle housing with a 5.00mm pitch, designed for free-hanging in-line mounting applications. This component is classified as an active product and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or design flexibility across manufacturing batches and packaging configurations.

Substiute Parts

1452329-1

TE Connectivity AMP ConnectorsIn Stock: 8971452329-1 Datasheet

Current PartRFQ

4-963210-1

TE Connectivity AMP ConnectorsIn Stock: 19094-963210-1 Datasheet

Parametric EquivalentRFQ

826008-1

TE Connectivity AMP ConnectorsIn Stock: 1094826008-1 Datasheet

Parametric EquivalentRFQ

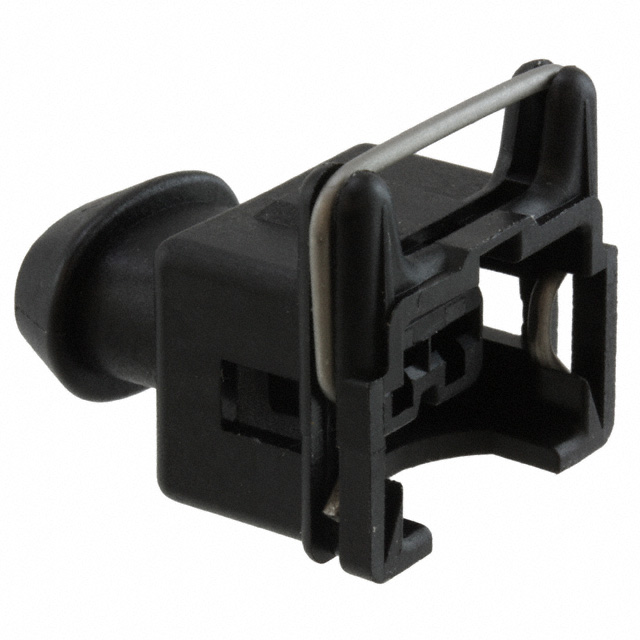

827551-3

TE Connectivity AMP ConnectorsIn Stock: 1169827551-3 Datasheet

Parametric EquivalentRFQ

928343-2

TE Connectivity AMP ConnectorsIn Stock: 15578928343-2 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1452329-1 are determined by equivalence in the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (2), pitch (5.00mm), number of rows (1), mounting type (free hanging in-line), and contact termination method (crimp). All substitute parts maintain these core electrical and mechanical specifications, ensuring functional interchangeability within the Junior Power Timer and Standard Timer series.

Variations among substitute parts include housing color and insulation material composition. The 1452329-1 features a black PBT housing with glass fill. Substitute parts 4-963210-1, 826008-1, 827551-3, and 928343-2 provide alternative color options (brown, gray, black, and natural respectively) and different insulation material formulations (PBT glass-filled, PA66 nylon, PA66 nylon glass-filled, and PA66 nylon respectively). These material and color variations do not affect the core functional parameters that define substitutability.

Parameter Comparison

Engineering Selection Recommendations

All five parts listed maintain active product status and comply with RoHS regulations, ensuring regulatory compliance for current manufacturing environments. The 1452329-1 and 4-963210-1 both achieve ROHS3 compliance, while 826008-1, 827551-3, and 928343-2 meet RoHS compliance standards. Selection between these parts should be based on specific application requirements regarding housing color and insulation material properties.

The 1452329-1 and 827551-3 both feature black housing, with the primary difference being insulation material composition (PBT glass-filled versus PA66 nylon glass-filled). The 4-963210-1 provides a brown housing alternative with PBT glass-filled insulation. The 826008-1 offers gray housing with PA66 nylon insulation. The 928343-2 provides natural housing with PA66 nylon insulation and specifies an operating temperature range of -40°C to 110°C.

All parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications for the core connector function. Packaging configurations vary, with some parts available in bulk packaging and others in standard packaging.

Frequently Asked Questions (FAQ)

Q: What determines whether a part can substitute for the 1452329-1?

A: Substitution is determined by equivalence in connector type (receptacle), contact type (female socket), number of positions (2), pitch (5.00mm), number of rows (1), mounting type (free hanging in-line), and contact termination method (crimp). All listed substitute parts meet these criteria.

Q: Are there differences in electrical performance between the 1452329-1 and its substitutes?

A: The core electrical specifications remain equivalent across all substitute parts. Differences exist only in housing color and insulation material composition, which do not affect the fundamental connector function.

Q: What is the significance of insulation material differences?

A: The 1452329-1 uses PBT (polybutylene terephthalate) with glass fill, while some substitutes use PA66 (polyamide) nylon with or without glass fill. These material variations may influence mechanical properties and environmental resistance characteristics specific to application requirements.

Q: Does the 928343-2 have different operating specifications?

A: The 928343-2 specifies an operating temperature range of -40°C to 110°C, whereas the 1452329-1 does not specify an operating temperature range in the provided data. This temperature specification should be considered when selecting parts for temperature-sensitive applications.

Q: What packaging options are available?

A: The 1452329-1 is available in standard packaging. Substitute parts 4-963210-1, 827551-3, and 928343-2 are available in bulk packaging. The 826008-1 packaging type is not specified in the provided data.

Q: Are all parts RoHS compliant?

A: Yes, all parts listed are RoHS compliant. The 1452329-1 and 4-963210-1 specifically achieve ROHS3 compliance, while 826008-1, 827551-3, and 928343-2 meet RoHS compliance standards.

Q: Can I use these parts interchangeably in my design?

A: Yes, these parts are functionally interchangeable based on their equivalent electrical and mechanical parameters. Selection should account for specific requirements regarding housing color, insulation material, and operating temperature specifications.
