Part Overview

The TE Connectivity 145166-4 is a 184-position female PCI card edge connector designed for PCI 5V 64-bit applications. This connector features a 0.050" (1.27mm) pitch, dual read-out configuration, and gold-plated phosphor bronze contacts suitable for through-hole solder termination with staggered contact arrangement. The connector includes board guide features and accommodates 0.062" (1.57mm) card thickness.

The 145166-4 maintains active product status and is currently in stock inventory. Identifying equivalent and substitute parts is necessary to support procurement flexibility, manage supply chain alternatives, and address specific compliance or packaging requirements for production environments.

Substiute Parts

145166-4

TE Connectivity AMP ConnectorsIn Stock: 876145166-4 Datasheet

Current PartRFQ

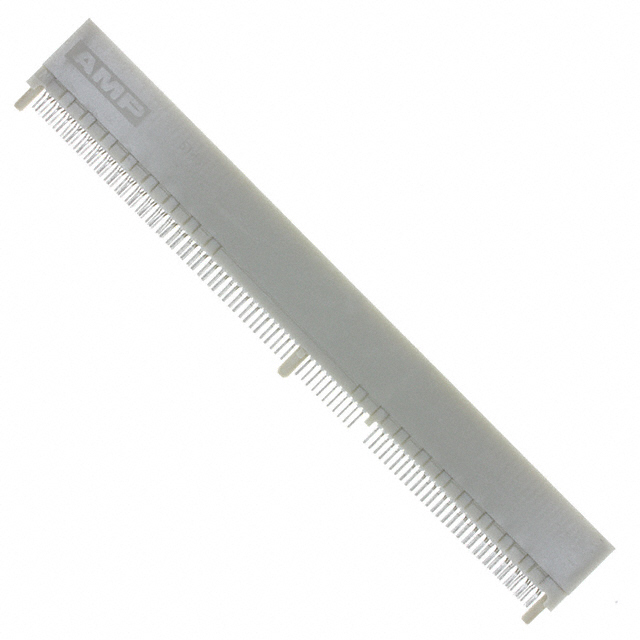

5145166-4

TE Connectivity AMP ConnectorsIn Stock: 7855145166-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 145166-4 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part 5145166-4 qualifies as a direct equivalent based on the following criteria:

Electrical Parameters (Must Match Exactly):

• 184 position count
• 0.050" (1.27mm) pitch spacing
• PCI 5V 64-bit card type specification
• Female gender configuration
• Dual read-out functionality
• Gold contact finish with 30.0µin (0.76µm) thickness
• Phosphor bronze contact material

Mechanical Parameters (Must Match Exactly):

• 2-row configuration with 49, 11, 32 position distribution
• 0.062" (1.57mm) card thickness accommodation
• Through-hole mounting type
• Solder termination with staggered contact arrangement
• Board guide feature inclusion
• Natural color thermoplastic insulation material

The substitute part 5145166-4 maintains identical electrical and mechanical specifications to the main part 145166-4, with the primary distinction being packaging format (Bulk versus standard packaging) and RoHS compliance status.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5145166-4 provides complete functional and mechanical equivalence to the 145166-4 across all electrical and physical specifications. Selection between these parts is determined by compliance and packaging requirements:

Select 145166-4 when:

• RoHS non-compliant applications are acceptable
• Standard packaging format is required for inventory management
• Legacy system compatibility is specified

Select 5145166-4 when:

• RoHS compliance is mandated by design specifications or regulatory requirements
• Bulk packaging format aligns with procurement and assembly processes
• Supply chain flexibility requires access to RoHS-compliant alternatives

Both parts maintain identical electrical performance, mechanical compatibility, and physical dimensions. The 5145166-4 represents the RoHS-compliant variant of the same connector design within the Standard Edge .050 series. Current inventory availability supports either selection without lead-time impact.

Frequently Asked Questions (FAQ)

Q: Are the 145166-4 and 5145166-4 electrically interchangeable?

A: Yes. Both connectors provide identical electrical specifications including 184-position capacity, 0.050" pitch, PCI 5V 64-bit support, gold contact finish, and dual read-out configuration. They function identically in circuit applications.

Q: What is the primary difference between these two parts?

A: The primary differences are RoHS compliance status and packaging format. The 5145166-4 is RoHS compliant and supplied in bulk packaging, while the 145166-4 is RoHS non-compliant with standard packaging. All electrical and mechanical parameters are identical.

Q: Can I substitute 5145166-4 for 145166-4 in existing designs?

A: Yes, provided that RoHS compliance does not conflict with existing design specifications. The 5145166-4 maintains complete mechanical and electrical compatibility with the 145166-4 across all functional parameters.

Q: Does packaging format affect connector performance?

A: No. Packaging format (standard versus bulk) does not affect connector electrical performance, mechanical fit, or reliability. Packaging selection is determined by procurement and assembly workflow requirements.

Q: Are both parts suitable for through-hole PCB assembly?

A: Yes. Both the 145166-4 and 5145166-4 are designed for through-hole solder termination with staggered contact arrangement and board guide features supporting standard PCB assembly processes.

Q: What card thickness do these connectors accommodate?

A: Both connectors are designed to accommodate 0.062" (1.57mm) card thickness, consistent with PCI 5V 64-bit specification requirements.

Q: Is there a lead-time difference between these substitute parts?

A: Both parts maintain active product status with current inventory availability. No lead-time advantage exists between the two options based on provided inventory data.
