TE Connectivity AMP Connectors 1-440133-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-440133-5 is a 15-position rectangular connector receptacle housing designed for high-performance interconnect applications. This connector operates within the temperature range of -25°C to 105°C and utilizes a 2.50mm pitch configuration with crimp-style female socket contacts. The part is currently active in production status and RoHS compliant, making it suitable for modern electronic assembly requirements. Identifying equivalent substitute parts becomes necessary when managing inventory constraints, ensuring supply chain continuity, or accommodating design flexibility across manufacturing environments.

Substiute Parts

1-440133-5

TE Connectivity AMP ConnectorsIn Stock: 10851-440133-5 Datasheet

Current PartRFQ

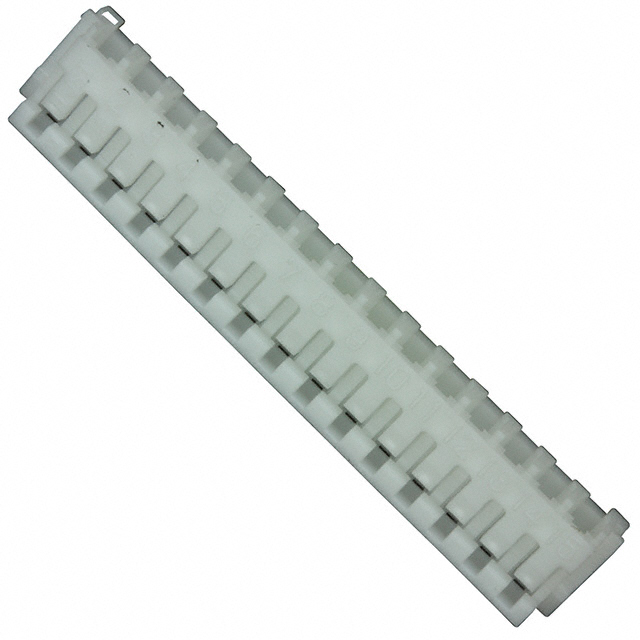

EHR-15

JST Sales America Inc.In Stock: 20934EHR-15 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 1-440133-5 are identified based on strict electrical and mechanical parameter alignment. The following criteria determine substitution eligibility:

Critical Matching Parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (15)
• Pitch specification (0.098" / 2.50mm)
• Number of rows (1)
• Mounting type (Free Hanging / In-Line)
• Contact termination method (Crimp)
• Insulation material (Polyamide PA66, Nylon 6/6)
• Color (Natural)
• Moisture Sensitivity Level (1 / Unlimited)

Substitute parts must maintain compatibility across all these parameters to ensure direct functional equivalence in circuit board assembly and interconnect applications. Operating temperature range variations and RoHS certification status are noted but do not preclude substitution eligibility when all mechanical and electrical parameters align.

Parameter Comparison

Engineering Selection Recommendations

The JST Sales America EHR-15 connector housing serves as a direct functional equivalent to the TE Connectivity 1-440133-5 based on alignment of all critical mechanical and electrical parameters. Both parts are active products with current production status and maintain full compliance with environmental regulations.

Compliance Considerations:

• Both parts achieve RoHS compliance (TE Connectivity: RoHS Compliant; JST: ROHS3 Compliant)
• Both parts maintain REACH Unaffected status
• Both parts carry MSL 1 (Unlimited) moisture sensitivity classification

Temperature Range Differential: The TE Connectivity 1-440133-5 operates across -25°C to 105°C, while the JST EHR-15 operates across -25°C to 85°C. Applications requiring sustained operation above 85°C should retain the TE Connectivity part. Applications operating within the -25°C to 85°C range support either part selection.

Inventory and Availability: The JST EHR-15 maintains significantly higher inventory levels (20,852 pcs) compared to the TE Connectivity 1-440133-5 (998 pcs), supporting extended supply chain availability for high-volume production requirements.

Frequently Asked Questions (FAQ)

Q: Can the JST EHR-15 directly replace the TE Connectivity 1-440133-5 in all applications?

A: The JST EHR-15 provides direct mechanical and electrical compatibility across all standard interconnect applications. The operating temperature range difference (-25°C to 85°C versus -25°C to 105°C) requires evaluation only for applications requiring sustained operation above 85°C. All other electrical and mechanical parameters align completely.

Q: What does the 15-position specification mean?

A: The 15-position designation indicates the connector housing accommodates 15 individual crimp contacts arranged in a single row configuration. Both the main part and substitute maintain this identical position count and row arrangement.

Q: Are contacts included with these connector housings?

A: No. Both the TE Connectivity 1-440133-5 and JST EHR-15 are supplied as housings only. Crimp contacts must be sourced separately and inserted into the housing during assembly.

Q: What does the 2.50mm pitch specification indicate?

A: Pitch refers to the center-to-center distance between adjacent contact positions. The 2.50mm (0.098") pitch is identical for both parts, ensuring mechanical compatibility with mating connectors and printed circuit board layouts designed for this spacing.

Q: How do RoHS and ROHS3 compliance differ?

A: Both designations indicate compliance with Restriction of Hazardous Substances regulations. RoHS3 represents the current iteration of the directive. Both parts meet environmental compliance requirements for modern electronics manufacturing.

Q: What is Moisture Sensitivity Level 1?

A: MSL 1 (Unlimited) indicates the component has no moisture sensitivity restrictions. These parts do not require special dry-pack storage or handling procedures and can be stored under standard warehouse conditions.

Q: Can these housings be used interchangeably in existing designs?

A: Yes. The identical pitch, position count, row configuration, mounting type, and contact termination method ensure these housings function interchangeably in designs originally specified for either part number.
