Phoenix Contact 1434853 Sensor Actuator Box - Equivalent & Substitute Parts

Part Overview

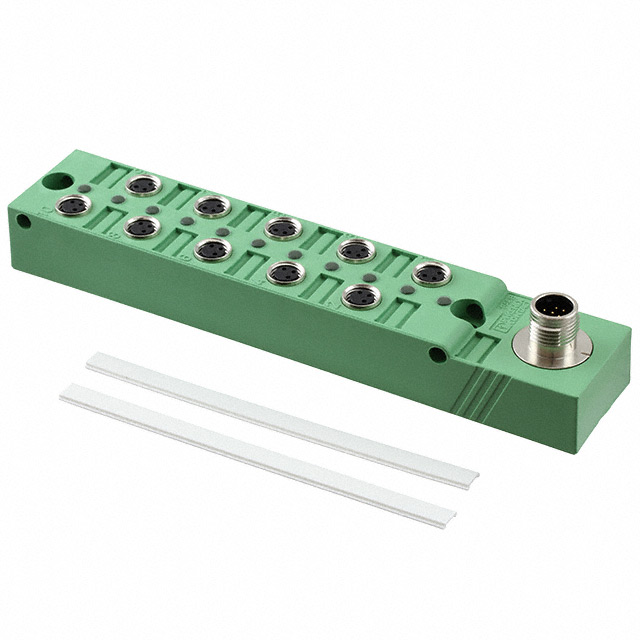

The Phoenix Contact 1434853 is a sensor actuator box designed for use with circular connectors in industrial automation applications. This component provides a protective enclosure with connector openings for M8 and M12 circular connectors. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new installations where legacy compatibility is required.

Substiute Parts

1434853

Phoenix ContactIn Stock: 7951434853 Datasheet

Current PartRFQ

1197576

Phoenix ContactIn Stock: 8781197576 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1434853 is determined by the following critical parameters:

• Accessory Type: Must be Actuator Box
• Material Composition: Must be Polybutylene Terephthalate (PBT)
• Environmental Protection: Must maintain Dust Tight and Waterproof ratings
• Connector Compatibility: Must support M8 and/or M12 circular connector interfaces
• RoHS Compliance: Must maintain RoHS Compliant status

The substitute part 1197576 shares the core functional classification and material specification. However, differences exist in connector opening count and supported shell sizes, which must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1197576 is an active product substitute for the obsolete 1434853. Both components maintain identical material composition (PBT), environmental protection ratings (Dust Tight, Waterproof), and RoHS compliance status.

Selection between these parts depends on application-specific requirements:

• M12 Connector Requirement: The 1434853 supports both M8 and M12 shell sizes. The 1197576 supports M8 only. Applications requiring M12 connector compatibility must retain the 1434853 or identify alternative solutions.

• Connector Opening Count: The 1434853 provides 8 openings; the 1197576 provides 10 openings. Applications with fixed enclosure designs must account for this dimensional difference.

• Active Product Status: The 1197576 is currently in active production with confirmed inventory availability (785 Pcs), whereas the 1434853 is obsolete. For new designs and long-term supply chain stability, the 1197576 is the preferred selection when M8-only compatibility is acceptable.

Frequently Asked Questions (FAQ)

Q: Can the 1197576 replace the 1434853 in all applications?

A: Substitution is valid only for applications using M8 circular connectors exclusively. Applications requiring M12 connector support cannot use the 1197576 as a direct replacement.

Q: What is the significance of the connector opening count difference?

A: The 1434853 has 8 connector openings while the 1197576 has 10. This affects physical enclosure dimensions and the number of simultaneous connector interfaces. Mechanical fit and layout compatibility must be verified for the specific installation.

Q: Are both parts RoHS compliant?

A: Yes. Both the 1434853 and 1197576 are RoHS Compliant and maintain identical environmental protection ratings (Dust Tight, Waterproof).

Q: Why is the 1434853 listed as obsolete?

A: The 1434853 is classified as obsolete by Phoenix Contact. The 1197576 represents the active product line continuation with enhanced connector opening capacity and M8 standardization.

Q: Does packaging type affect substitution eligibility?

A: Packaging type (Bulk for 1197576 versus standard for 1434853) does not affect functional compatibility. Packaging differences relate to procurement and inventory management only.
