Honeywell 142PC15AW95 Pressure Sensor - Equivalent & Substitute Parts

Part Overview

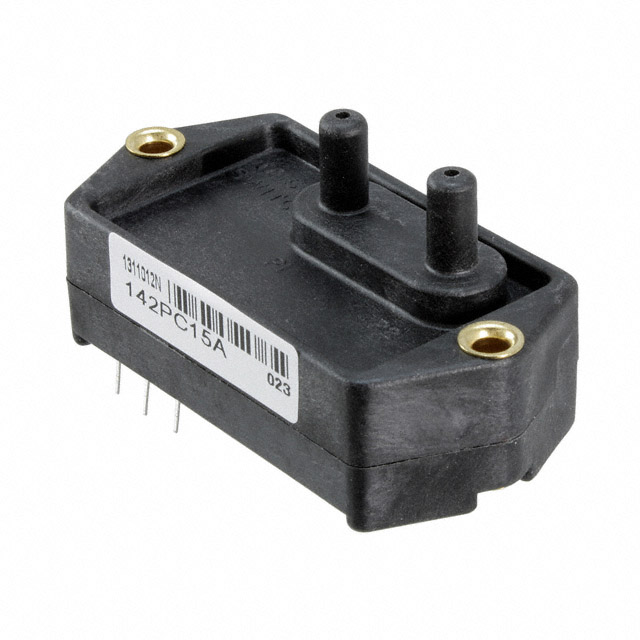

The Honeywell 142PC15AW95 is an absolute pressure sensor designed for board mount applications. This sensor measures pressure in the 2PSI to 15PSI range (13.79kPa to 103.42kPa) with amplified analog voltage output. The device features temperature compensation and operates across an industrial temperature range of -40°C to 85°C. The product maintains Active status with full RoHS compliance and MSL Level 1 rating, indicating broad availability and suitability for standard manufacturing environments. Identifying equivalent substitute parts ensures design flexibility, supply chain continuity, and component availability across production cycles.

Substiute Parts

142PC15AW95

Honeywell Sensing and Productivity SolutionsIn Stock: 1051142PC15AW95 Datasheet

Current PartRFQ

142PC15A

Honeywell Sensing and Productivity SolutionsIn Stock: 1104142PC15A Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 142PC15AW95 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

Pressure Specifications: Operating pressure range (2PSI ~ 15PSI), pressure type (Absolute), and maximum pressure rating (45PSI) must be identical.

Electrical Characteristics: Output voltage range (1V ~ 5.33V), supply voltage range (7V ~ 16V), output type (Analog Voltage), and accuracy (±0.4%) must match exactly.

Mechanical Interface: Port size (Male - 0.2" / 5mm Tube), port style (Barbless), and termination style (PC Pin) must be identical to ensure direct physical and electrical compatibility.

Package Configuration: The 3-SIP Module package type, Through Hole mounting, and PC Pin termination are mandatory for board-level integration.

Environmental Compliance: RoHS compliance and MSL Level 1 rating ensure regulatory and manufacturing process compatibility.

The 142PC15A qualifies as a parametric equivalent based on complete alignment across all specified parameters within the 140PC series.

Parameter Comparison

Engineering Selection Recommendations

Both the 142PC15AW95 and 142PC15A maintain Active product status within the Honeywell 140PC series, confirming ongoing manufacturer support and availability. Both components carry full RoHS compliance certification and MSL Level 1 rating, meeting standard manufacturing and environmental requirements without additional handling restrictions.

Selection between these parts should be based on inventory availability and supply chain considerations. The 142PC15A currently maintains higher inventory levels (1056 Pcs) compared to the 142PC15AW95 (944 Pcs), which may influence procurement decisions for high-volume applications or extended production schedules.

No technical differentiation exists between these components based on the provided specifications. Direct substitution is supported across all electrical, mechanical, and environmental parameters.

Frequently Asked Questions (FAQ)

Q: Can the 142PC15A directly replace the 142PC15AW95 in existing designs?

A: Yes. Both components are parametric equivalents with identical specifications across pressure range, electrical output, supply voltage, port configuration, package type, and operating temperature. Direct substitution requires no design modifications.

Q: Are there any differences in the 3-SIP Module package between these parts?

A: No. Both components use identical 3-SIP Module packaging with Through Hole mounting and PC Pin termination. Physical and electrical board integration is identical.

Q: Do both parts support the same pressure measurement range?

A: Yes. Both the 142PC15AW95 and 142PC15A measure absolute pressure from 2PSI to 15PSI (13.79kPa to 103.42kPa) with identical maximum pressure rating of 45PSI (310.26kPa).

Q: What is the output voltage compatibility between these sensors?

A: Both sensors produce identical analog voltage output ranging from 1V to 5.33V across the full pressure measurement range. Signal conditioning and interface circuits require no modification.

Q: Are both parts suitable for industrial temperature environments?

A: Yes. Both components operate across the identical temperature range of -40°C to 85°C with temperature compensation features, supporting standard industrial applications.

Q: Do both parts meet current RoHS and MSL requirements?

A: Yes. Both the 142PC15AW95 and 142PC15A are RoHS Compliant with MSL Level 1 rating, meeting current manufacturing and environmental compliance standards without restrictions.

Q: What supply voltage range do these sensors require?

A: Both sensors require identical supply voltage of 7V to 16V. Power supply design and regulation circuits are interchangeable between the two parts.
