TE Connectivity AMP Connectors 1418758-1 Equivalent & Substitute Parts

Part Overview

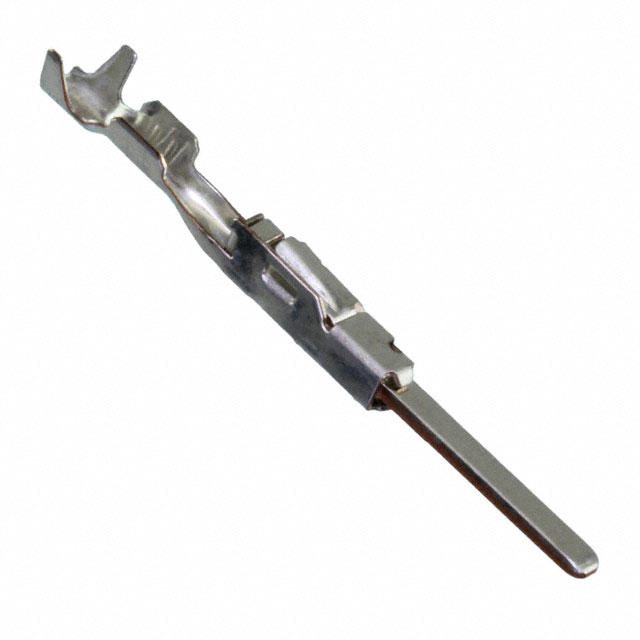

The TE Connectivity AMP Connectors 1418758-1 is a tab contact rectangular connector designed for wire termination in the 22-24 AWG range using crimp termination. This component belongs to the MCP series and features tin contact finish. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements.

Substiute Parts

1418758-1

TE Connectivity AMP ConnectorsIn Stock: 11241418758-1 Datasheet

Current PartRFQ

5-1418758-1

TE Connectivity AMP ConnectorsIn Stock: 258795-1418758-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for rectangular connector tab contacts is determined by alignment across the following critical parameters:

Manufacturer and Series Consistency: Both the main part and substitute must originate from TE Connectivity AMP Connectors within the MCP series to ensure mechanical and electrical compatibility within the connector system.

Contact Configuration: The tab contact type and crimp termination method must remain constant across substitutions to maintain compatibility with existing mating connectors and assembly tooling.

Wire Gauge Compatibility: The substitute part must accommodate the specified wire gauge range. The main part supports 22-24 AWG, while the substitute supports 22-23 AWG, representing a subset of the original specification that remains compatible for applications using 22-23 AWG wire.

Contact Finish: Tin finish must be maintained to ensure consistent electrical performance and corrosion resistance characteristics.

Regulatory Compliance: Both parts must meet RoHS requirements and maintain MSL 1 rating for storage and handling compatibility.

Product Status: The substitute part must be active and available to provide ongoing supply chain support.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5-1418758-1 is an active equivalent within the TE Connectivity AMP Connectors MCP series. Both parts maintain identical contact configuration, termination method, and contact finish specifications. The substitute part is manufactured using a stamped process and supports wire gauge 22-23 AWG, which represents a compatible subset of the original 22-24 AWG specification.

Selection of the substitute part is supported by its active product status, ensuring continued availability and supply chain reliability. Both parts maintain equivalent RoHS compliance and MSL 1 moisture sensitivity ratings, confirming compatibility with existing storage, handling, and assembly protocols.

For applications utilizing 22-23 AWG wire, the substitute part 5-1418758-1 provides direct functional equivalence. Applications requiring 24 AWG wire support should be evaluated against the wire gauge limitation of the substitute part.

Frequently Asked Questions (FAQ)

Q: Can 5-1418758-1 be used as a direct replacement for 1418758-1 in all applications?

A: The substitute part 5-1418758-1 is compatible for applications using 22-23 AWG wire. The original part supports 22-24 AWG, so applications specifically requiring 24 AWG wire support should be evaluated separately.

Q: What is the difference between the manufacturing processes of these two parts?

A: The main part 1418758-1 does not specify a manufacturing type, while the substitute part 5-1418758-1 is manufactured using a stamped process. Both parts maintain identical electrical and mechanical specifications for the supported wire gauge range.

Q: Are the RoHS compliance ratings equivalent between these parts?

A: Both parts are RoHS compliant. The main part carries ROHS3 designation while the substitute carries RoHS designation. Both meet regulatory requirements for the MCP series rectangular connectors.

Q: What packaging format is available for the substitute part?

A: The substitute part 5-1418758-1 is supplied in Cut Tape (CT) packaging format. The main part packaging format is not specified in the available documentation.

Q: Are moisture sensitivity levels identical between the parts?

A: Both parts maintain MSL 1 (Unlimited) rating, indicating identical moisture sensitivity handling requirements and storage compatibility.

Q: Why is the original part classified as obsolete?

A: The main part 1418758-1 is classified as obsolete, which is why the active substitute part 5-1418758-1 is recommended for new designs and ongoing production requirements.
