Phoenix Contact 1413094 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1413094 is a 2-position feed-through terminal block connector rated for 12-28 AWG wire gauges, with screw termination and polyamide insulation. This component is classified as Last Time Buy, indicating discontinued production status. Identifying equivalent substitute parts is necessary to ensure continued availability and support for new designs or replacement requirements in existing installations.

Key Parameters

Parameter	Value
Manufacturer Part Number	1413094
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Type	Feed Through
Number of Positions	2
Number of Levels	1
Wire Gauge Range (AWG)	12-28 AWG
Wire Gauge Range (mm²)	0.2-4 mm²
Current Rating (IEC)	24 A
Voltage Rating (IEC)	500 V
Current Rating (UL)	20 A
Voltage Rating (UL)	300 V
Termination Style	Screw
Terminal Width	5.2 mm
Insulation Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-2
Color	Blue
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1413094 is determined by the following critical parameters:

Mandatory Matching Parameters:

Number of Positions: 2
Number of Levels: 1
Termination Style: Screw
Terminal Width: 5.2 mm
Insulation Material: Polyamide (PA), Nylon
Color: Blue
Type: Feed Through

Electrical Compatibility Parameters:

Current Rating (IEC): 24 A minimum
Voltage Rating (IEC): 500 V minimum
Current Rating (UL): 20 A minimum
Voltage Rating (UL): 300 V minimum

Wire Gauge Compatibility:

Wire gauge range must accommodate the 12-28 AWG specification or a subset thereof

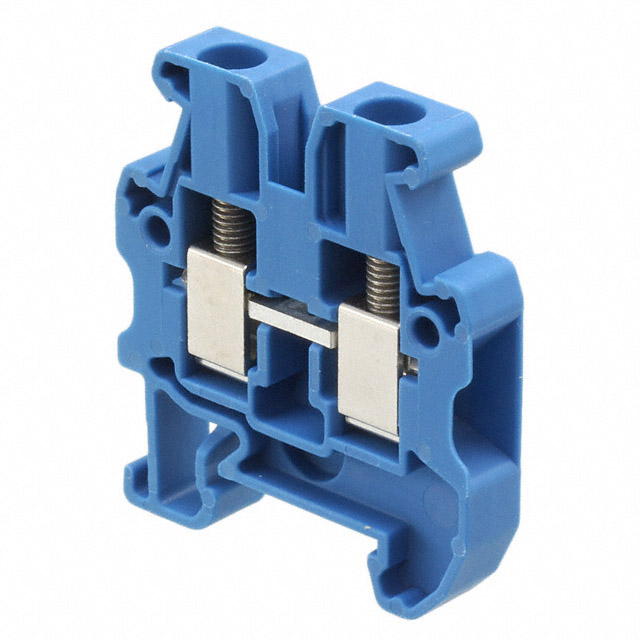

The Phoenix Contact 3248031 qualifies as a substitute based on these criteria, with the following considerations: the wire gauge range is restricted to 12-24 AWG (a subset of the original 12-28 AWG range), and the flammability rating is upgraded from UL94 V-2 to UL94 V-0.

Parameter Comparison

Parameter	1413094 (Main Part)	3248031 (Substitute)
Manufacturer Part Number	1413094	3248031
Manufacturer	Phoenix Contact	Phoenix Contact
Series	CLIPLINE MBK	CLIPLINE UT
Product Status	Last Time Buy	Active
Type	Feed Through	Feed Through
Number of Positions	2	2
Number of Levels	1	1
Wire Gauge Range (AWG)	12-28 AWG	12-24 AWG
Wire Gauge Range (mm²)	0.2-4 mm²	0.2-4 mm²
Current Rating (IEC)	24 A	24 A
Voltage Rating (IEC)	500 V	500 V
Current Rating (UL)	20 A	20 A
Voltage Rating (UL)	300 V	300 V
Termination Style	Screw	Screw
Terminal Width	5.2 mm	5.2 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Flammability Rating	UL94 V-2	UL94 V-0
Color	Blue	Blue
RoHS Status	RoHS Compliant	ROHS3 Compliant
Stripping Length	8 mm	9 mm

Engineering Selection Recommendations

The Phoenix Contact 3248031 is the designated substitute for the 1413094. Selection between these parts should be based on the following factors:

For New Designs or Replacement Stock: The 3248031 is the recommended choice. It maintains active product status, ensuring long-term availability and supply chain stability. The component carries ROHS3 compliance, representing current regulatory alignment. The upgraded flammability rating (UL94 V-0) provides enhanced fire performance compared to the original UL94 V-2 rating.

Wire Gauge Consideration: The 3248031 supports 12-24 AWG wire gauges. Applications requiring 28 AWG wire termination cannot use this substitute. For such applications, alternative sourcing or design modification is necessary.

Compliance and Certification: Both parts maintain equivalent electrical ratings (24 A IEC, 500 V IEC; 20 A UL, 300 V UL) and identical mechanical dimensions. The 3248031 represents current manufacturing standards with REACH Unaffected status and MSL 1 (Unlimited) moisture sensitivity rating.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3248031 directly replace the 1413094 in all applications?

A: Direct replacement is possible for applications using wire gauges within the 12-24 AWG range. Applications requiring 28 AWG termination capability cannot use the 3248031 as a substitute.

Q: What is the significance of the wire gauge range difference?

A: The 1413094 accommodates 12-28 AWG wire, while the 3248031 accommodates 12-24 AWG wire. The 3248031 cannot terminate 26 or 28 AWG wires. Verify your application's wire gauge requirements before substitution.

Q: Are the electrical ratings identical between these parts?

A: Yes. Both parts maintain identical current and voltage ratings under IEC and UL standards: 24 A / 500 V (IEC) and 20 A / 300 V (UL).

Q: What does the flammability rating upgrade mean?

A: The 3248031 carries UL94 V-0 rating compared to the 1413094's UL94 V-2 rating. UL94 V-0 represents superior flame resistance and self-extinguishing performance. This upgrade does not affect electrical or mechanical compatibility.

Q: Are there packaging or inventory differences?

A: Both parts are supplied in bulk packaging. The 3248031 has higher current inventory availability (1384 pcs) compared to the 1413094 (703 pcs). The 1413094 is classified as Last Time Buy, indicating discontinued production.

Q: What is the difference in stripping length?

A: The 1413094 specifies 8 mm stripping length, while the 3248031 specifies 9 mm. Verify that your termination equipment and assembly procedures accommodate the 9 mm requirement.

Q: Are both parts RoHS compliant?

A: Yes. The 1413094 is RoHS Compliant, and the 3248031 is ROHS3 Compliant. Both meet current environmental regulations.
