TE Connectivity 1410279-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1410279-1 is a 2-position backplane connector header with male blades designed for through-hole, right-angle mounting on printed circuit boards. This connector features press-fit termination and is part of the MULTIGIG RT series. The component is classified as Active product status with 1074 units currently in stock.

Substitute parts become necessary when specific packaging requirements, termination methods, or compliance standards differ from the original specification, or when inventory availability requires alternative sourcing while maintaining electrical and mechanical compatibility.

Substiute Parts

1410279-1

TE Connectivity AMP ConnectorsIn Stock: 11111410279-1 Datasheet

Current PartRFQ

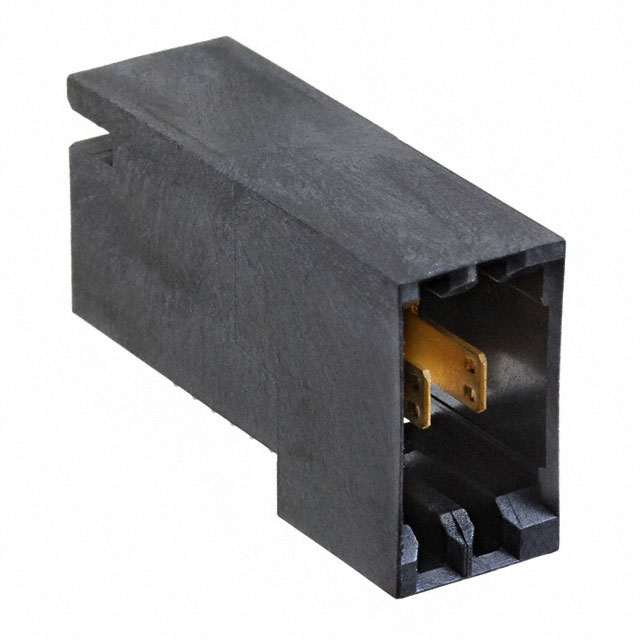

1410279-7

TE Connectivity AMP ConnectorsIn Stock: 10891410279-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for backplane connectors is determined by strict alignment of core electrical and mechanical parameters. The substitute part 1410279-7 shares the same base product number (1410279) and maintains compatibility through the following critical parameters:

Electrical Compatibility Parameters:

• Connector type: Header, Male Blades
• Number of positions: 2
• Pitch: 0.142" (3.60mm)
• Contact finish: Gold, 50.0µin (1.27µm)
• Connector style: Blade Power
• Contact layout: 2 Power

Mechanical Compatibility Parameters:

• Mounting type: Through Hole, Right Angle
• Color: Black
• Material flammability rating: UL94 V-0
• Moisture sensitivity level: 1 (Unlimited)

Variation Parameters:

• Termination method: Press-Fit (1410279-1) versus Solder (1410279-7)
• Packaging: Bulk (1410279-1) versus Tube (1410279-7)
• RoHS compliance: Non-compliant (1410279-1) versus ROHS3 Compliant (1410279-7)

Parameter Comparison

Engineering Selection Recommendations

1410279-1 Selection Criteria:

• Applications requiring press-fit termination assembly methods
• Designs where RoHS non-compliance is acceptable or not required
• Bulk packaging requirements for high-volume manufacturing operations
• Established designs with validated press-fit assembly processes

1410279-7 Selection Criteria:

• Applications requiring ROHS3 compliance for regulatory or customer requirements
• Designs utilizing solder termination assembly methods
• Tube packaging suitable for automated pick-and-place operations
• New designs where RoHS compliance is mandatory

Both parts maintain Active product status and share identical electrical performance specifications within their respective termination and compliance frameworks. Selection between these parts is determined by assembly methodology, regulatory compliance requirements, and packaging logistics rather than electrical or mechanical performance differences.

Frequently Asked Questions (FAQ)

Q: Can 1410279-7 be used as a direct replacement for 1410279-1 in existing designs?

A: Substitution is possible only if the PCB assembly process can accommodate solder termination instead of press-fit termination. The electrical and mechanical specifications are identical, but the termination method differs fundamentally. Assembly process validation is required.

Q: What is the primary difference between these two parts?

A: The main differences are termination method (press-fit versus solder) and RoHS compliance status (non-compliant versus ROHS3 compliant). Electrical ratings, connector geometry, and contact specifications are identical.

Q: Are there current rating or voltage rating differences between these parts?

A: The 1410279-1 specifies 20A current rating and 250V voltage rating. The 1410279-7 does not provide current or voltage ratings in the available documentation. Electrical performance should be confirmed with the manufacturer for the substitute part.

Q: Does packaging affect connector performance?

A: Packaging (bulk versus tube) does not affect electrical or mechanical performance. Packaging selection is based on manufacturing logistics, automated assembly compatibility, and inventory management requirements.

Q: What is the operating temperature range for both parts?

A: The 1410279-1 specifies -55°C to 105°C operating temperature. The 1410279-7 does not provide operating temperature specification in the available documentation.

Q: Are both parts suitable for backplane applications?

A: The 1410279-1 is explicitly specified for backplane and orthogonal connector usage. The 1410279-7 connector usage classification is not provided in the available documentation. Application suitability should be confirmed with the manufacturer.

Q: What does MSL 1 (Unlimited) mean?

A: Moisture Sensitivity Level 1 indicates the component has unlimited shelf life and does not require special moisture control handling during storage or transport.
