Phoenix Contact 1408342 Heavy Duty Connector Hood - Equivalent & Substitute Parts

Part Overview

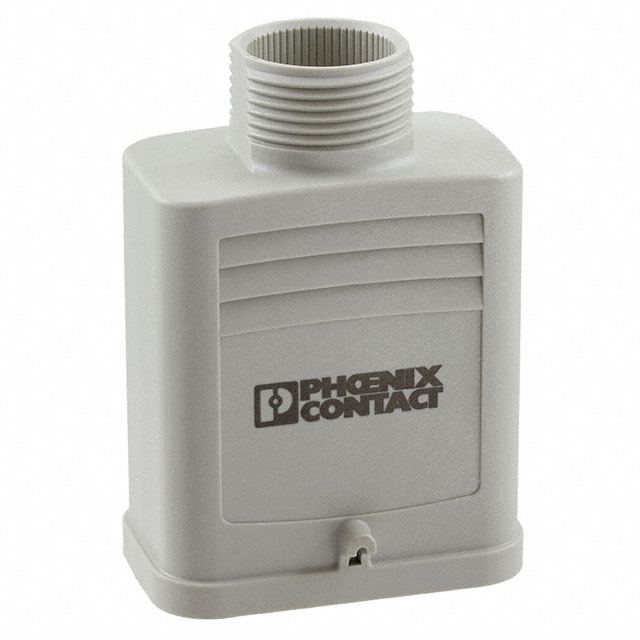

The Phoenix Contact 1408342 is a Heavy Duty Connector Hood designed for top entry applications with PG16 thread size. This connector provides IP65/IP66 ingress protection, making it suitable for dust-tight and water-resistant installations in industrial environments. The product is currently classified as Obsolete, necessitating identification of functionally equivalent alternatives from the active product portfolio to ensure continued system support and procurement availability.

Substiute Parts

1408342

Phoenix ContactIn Stock: 9751408342 Datasheet

Current PartRFQ

1012520

Phoenix ContactIn Stock: 7981012520 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 1408342 is determined by the following critical parameters:

• Connector Type & Style: Hood connector with top entry configuration
• Ingress Protection: IP65/IP66 rating for dust-tight and water-resistant performance
• Lock Mechanism: Locking clip on base bottom
• Series Compatibility: HEAVYCON® series
• Thread Interface: Thread size compatibility (PG16 or equivalent metric thread)
• Environmental Compliance: RoHS compliance and operating temperature range

The substitute part 1012520 maintains functional equivalence through identical connector type, style, ingress protection capability, and locking mechanism. The primary difference is the thread size transition from PG16 to M25, which represents a standard metric thread substitution within industrial connector applications. Both parts operate within overlapping temperature ranges and maintain RoHS compliance.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1012520 serves as the active product substitute for the obsolete 1408342. Selection of this substitute is supported by the following engineering factors:

Product Status: The 1012520 maintains Active product status, ensuring ongoing manufacturer support, availability, and compliance with current regulatory requirements. The 1408342 Obsolete status indicates end-of-life status and potential procurement constraints.

Compliance & Certifications: Both parts maintain RoHS compliance and EAR99 ECCN classification. The 1012520 provides enhanced operating temperature capability (-40°C to 125°C versus -40°C to 100°C), offering broader environmental performance margins.

Functional Equivalence: Both connectors maintain identical connector type (Hood), style (Top Entry), lock mechanism (Locking Clip on Base Bottom), and series designation (HEAVYCON®). The ingress protection rating of the 1012520 (IP66) meets or exceeds the IP65/IP66 specification of the main part.

Material & Dimensional Considerations: The 1012520 utilizes Polyamide (PA) nylon housing versus Polycarbonate (PC) in the 1408342, providing enhanced chemical and thermal resistance. Thread size transition from PG16 to M25 requires mechanical interface verification in the installation environment.

Frequently Asked Questions (FAQ)

Q: Can the 1012520 directly replace the 1408342 in existing installations?

A: Functional replacement is supported through equivalent connector type, style, ingress protection, and locking mechanism. However, the thread size change from PG16 to M25 requires verification of the mounting interface and enclosure thread compatibility. Mechanical adaptation may be necessary depending on the installation configuration.

Q: What are the key differences between these two parts?

A: The primary differences are: (1) Thread size: PG16 versus M25; (2) Housing material: Polycarbonate versus Polyamide nylon; (3) Operating temperature upper limit: 100°C versus 125°C; (4) Product status: Obsolete versus Active; (5) Housing color specification: Not specified versus Black.

Q: Does the material change from PC to PA affect performance?

A: Both materials provide suitable performance for heavy duty connector applications. Polyamide nylon offers enhanced chemical resistance and thermal stability at elevated temperatures. Material selection should be evaluated based on specific environmental exposure conditions in the installation environment.

Q: Is the ingress protection rating equivalent?

A: The 1408342 specifies IP65/IP66 protection. The 1012520 specifies IP66 protection. IP66 rating meets the IP65 requirement and exceeds the minimum IP65/IP66 specification, providing equivalent or superior dust-tight and water-resistant performance.

Q: What is the significance of the Active versus Obsolete product status?

A: Active status (1012520) indicates current production, ongoing manufacturer support, and compliance with current standards. Obsolete status (1408342) indicates end-of-life, with potential procurement limitations and lack of ongoing technical support. Migration to active products ensures long-term supply chain reliability.

Q: Are there packaging differences between these parts?

A: The 1408342 packaging is not specified. The 1012520 is supplied in Bulk packaging. Packaging configuration should be verified against procurement and inventory management requirements.
