Phoenix Contact 1402982 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1402982 is a 2-position feed-through terminal block connector designed for wire gauges 10-26 AWG (0.2-6 mm²). This component operates at 32 A (IEC) / 30 A (UL) and 500 V (IEC) / 600 V (UL), utilizing screw termination with polyamide insulation rated UL94 V-0. The part is currently in Last Time Buy status, indicating discontinued production. Identifying equivalent substitute parts is necessary to ensure continued availability and maintain design compatibility in new procurement cycles.

Substiute Parts

1402982

Phoenix ContactIn Stock: 7491402982 Datasheet

Current PartRFQ

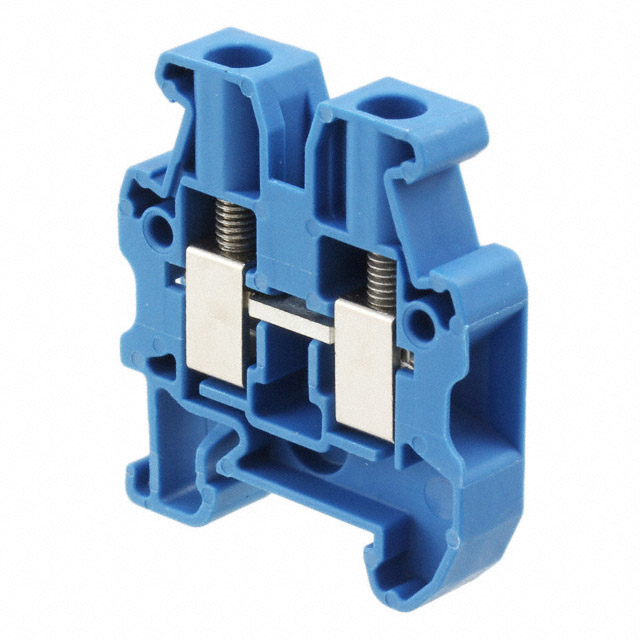

3248036

Phoenix ContactIn Stock: 11873248036 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 3248036 qualifies as a substitute for the 1402982 based on the following critical parameters:

Matching Parameters:

• Manufacturer: Phoenix Contact (same manufacturer ensures design compatibility)
• Category: Terminal Blocks (identical product category)
• Type: Feed Through (same functional type)
• Number of Positions: 2 (identical connector configuration)
• Number of Levels: 1 (identical level structure)
• Terminal Width: 6.2 mm (identical mechanical interface)
• Termination Style: Screw (identical connection method)
• Current Rating (IEC): 32 A (identical electrical capacity)
• Voltage Rating (IEC): 500 V (identical voltage specification)
• Current Rating (UL): 30 A (identical UL current rating)
• Insulation Material: Polyamide (PA), Nylon (identical material composition)
• Flammability Rating: UL94 V-0 (identical safety certification)
• Wire Gauge Range (mm²): 0.2-6 mm² (identical metric wire range)
• Color: Blue (identical visual identification)
• RoHS Status: ROHS3 Compliant (equivalent environmental compliance)

Differing Parameters:

• Wire Gauge Range (AWG): 3248036 supports 10-24 AWG (subset of 1402982's 10-26 AWG range)
• Voltage Rating (UL): 3248036 rated 300 V (lower than 1402982's 600 V)
• Stripping Length: 3248036 requires 9 mm (versus 1402982's 8 mm)
• Series: 3248036 belongs to CLIPLINE UT series (versus 1402982's CLIPLINE MBK series)
• Product Status: 3248036 is Active (versus 1402982's Last Time Buy status)

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 3248036 is suitable as a substitute for the 1402982 in applications where the following conditions are met:

Acceptable Substitution Conditions:

• Wire gauge requirements do not exceed 24 AWG (3248036 supports 10-24 AWG only)
• System voltage does not exceed 300 V UL rating (3248036 is rated 300 V UL versus 1402982's 600 V UL)
• Installation procedures can accommodate 9 mm stripping length (versus 8 mm for the original part)
• Design accepts CLIPLINE UT series mechanical interface (versus CLIPLINE MBK series)

Product Status Advantage: The 3248036 is in Active production status, ensuring long-term availability and supply chain continuity compared to the 1402982's Last Time Buy status.

Compliance Equivalence: Both parts maintain identical IEC electrical ratings (32 A / 500 V), identical UL current rating (30 A), identical UL94 V-0 flammability certification, and equivalent RoHS compliance status.

Frequently Asked Questions (FAQ)

Q: Can the 3248036 replace the 1402982 in all applications?

A: No. The 3248036 has two limiting factors: it supports wire gauges only up to 24 AWG (excluding 25-26 AWG), and its UL voltage rating is 300 V (versus 1402982's 600 V UL). Substitution is valid only when both wire gauge and voltage requirements fall within the 3248036's specifications.

Q: What is the significance of the different stripping lengths (8 mm vs. 9 mm)?

A: Stripping length defines the amount of insulation that must be removed from the wire before insertion. The 3248036 requires 9 mm preparation versus 8 mm for the 1402982. Installation procedures must be adjusted accordingly to ensure proper wire seating and electrical contact.

Q: Are the IEC and UL ratings equivalent between these parts?

A: IEC ratings are identical (32 A / 500 V for both parts). UL ratings differ: the 1402982 is rated 30 A / 600 V, while the 3248036 is rated 30 A / 300 V. Current capacity is equivalent, but voltage capacity differs.

Q: Why does the 3248036 support a narrower AWG range?

A: The 3248036 is specified for 10-24 AWG, which excludes the 25-26 AWG range supported by the 1402982. This represents a design difference between the CLIPLINE UT series (3248036) and CLIPLINE MBK series (1402982).

Q: Is the 3248036 mechanically compatible with existing 1402982 installations?

A: Both parts share identical terminal width (6.2 mm), 2-position configuration, and screw termination. However, they belong to different series (CLIPLINE UT versus CLIPLINE MBK), which may affect mounting or panel compatibility depending on the specific installation design.

Q: What is the inventory status for these parts?

A: The 1402982 has 695 pieces in stock (Last Time Buy status). The 3248036 has 1106 pieces in stock (Active status), indicating ongoing availability.
