TE Connectivity AMP Connectors 1363301-1 MCX Plug Coaxial Connector Equivalent & Substitute Parts

Part Overview

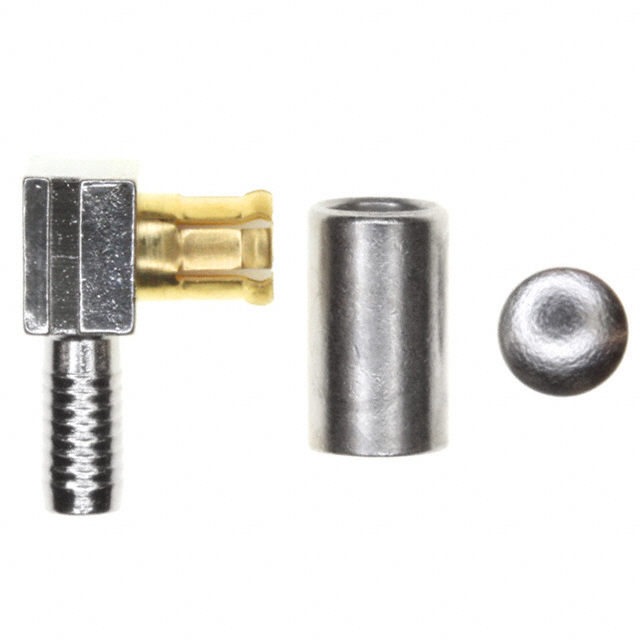

The TE Connectivity AMP Connectors 1363301-1 is an MCX connector plug with male pin configuration, rated for 50 ohms impedance, and designed for right-angle solder termination applications. This coaxial RF connector operates at frequencies up to 6 GHz and is compatible with RG-316 cable groups. The part is currently classified as obsolete, necessitating identification of active equivalent and substitute components that maintain electrical and mechanical compatibility for ongoing system support and new designs.

Substiute Parts

1363301-1

TE Connectivity AMP ConnectorsIn Stock: 7011363301-1 Datasheet

Current PartRFQ

1060904-1

TE Connectivity Aerospace, Defense and MarineIn Stock: 11451060904-1 Datasheet

DirectRFQ

16_MCX-50-2-11/133_NH

Huber+Suhner, Inc.In Stock: 123016_MCX-50-2-11/133_NH Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1363301-1 is determined by strict alignment with the following critical parameters: MCX connector style, male pin plug configuration, 50 ohms impedance, solder contact termination, crimp shield termination, free hanging right-angle mounting, and maximum frequency of 6 GHz. All substitute parts must maintain these core electrical and mechanical specifications to ensure functional compatibility within existing RF circuit designs.

The identified substitute parts are grouped into two categories:

Direct Manufacturer Substitute (TE Connectivity Aerospace, Defense and Marine): Part 1060904-1 is manufactured by TE Connectivity and maintains identical connector style, type, impedance, termination methods, mounting configuration, and frequency rating. This part is currently active in production.

Parametric Equivalent (Huber+Suhner, Inc.): Part 16_MCX-50-2-11/133_NH is a cross-manufacturer equivalent that satisfies all core electrical parameters including MCX style, male pin plug, 50 ohms impedance, solder termination, crimp shield termination, right-angle mounting, and 6 GHz frequency capability. This part is also currently active in production.

Parameter Comparison

Engineering Selection Recommendations

TE Connectivity 1060904-1: This part is the primary substitute for the obsolete 1363301-1. Both parts are manufactured by TE Connectivity and share identical electrical specifications, including impedance, frequency rating, voltage rating, and insertion loss. The 1060904-1 maintains the same operating temperature range (-65°C ~ 165°C) and mating cycle rating (500 cycles). Both parts are ROHS3 compliant and REACH affected. The 1060904-1 is currently in active production status, ensuring long-term availability and supply chain continuity. The primary difference is packaging configuration (bulk versus original packaging) and cable group specification (RD-316 Double Braid versus RG-316).

Huber+Suhner 16_MCX-50-2-11/133_NH: This part provides parametric equivalence across all critical RF and mechanical parameters. It maintains MCX connector style, male pin plug configuration, 50 ohms impedance, solder termination, and 6 GHz frequency capability. The part is ROHS3 compliant and currently in active production. Notable differences include a reduced operating temperature range (-55°C ~ 155°C versus -65°C ~ 165°C), lower voltage rating (170 V versus 335 V), and REACH unaffected status. The insertion loss specification is not provided for this part. Selection of this part requires confirmation that the reduced temperature range and voltage rating are acceptable for the specific application.

Frequently Asked Questions (FAQ)

Q: Can the 1060904-1 be used as a direct replacement for the 1363301-1 in all applications?

A: The 1060904-1 maintains identical electrical specifications and operating parameters as the 1363301-1, including impedance, frequency rating, voltage rating, and insertion loss. Both parts are ROHS3 compliant and REACH affected. The primary consideration is cable group compatibility: the 1363301-1 specifies RG-316 while the 1060904-1 specifies RD-316 Double Braid. Verify that the double braid cable specification is compatible with your system requirements.

Q: What are the key differences between the TE Connectivity 1060904-1 and the Huber+Suhner 16_MCX-50-2-11/133_NH?

A: Both parts satisfy the core MCX connector specifications and 50 ohms impedance requirement. The primary differences are: (1) operating temperature range: 1060904-1 supports -65°C ~ 165°C while 16_MCX-50-2-11/133_NH supports -55°C ~ 155°C; (2) voltage rating: 1060904-1 is rated 335 V while 16_MCX-50-2-11/133_NH is rated 170 V; (3) REACH status: 1060904-1 is REACH affected while 16_MCX-50-2-11/133_NH is REACH unaffected; (4) insertion loss: 1060904-1 specifies 0.1 dB while 16_MCX-50-2-11/133_NH does not provide this specification.

Q: Is the Huber+Suhner 16_MCX-50-2-11/133_NH suitable for applications requiring the full -65°C ~ 165°C temperature range?

A: The Huber+Suhner part operates within -55°C ~ 155°C, which does not cover the full temperature range of the original 1363301-1. Applications requiring operation at temperatures below -55°C or above 155°C must use the TE Connectivity 1060904-1 or confirm that the reduced temperature range is acceptable for the specific use case.

Q: What is the significance of the voltage rating difference between the substitute parts?

A: The 1363301-1 and 1060904-1 are both rated 335 V, while the Huber+Suhner 16_MCX-50-2-11/133_NH is rated 170 V. Applications operating at voltages above 170 V require use of either the original part or the 1060904-1. Confirm your system voltage requirements before selecting the Huber+Suhner alternative.

Q: Are all three parts ROHS3 compliant?

A: Yes, all three parts (1363301-1, 1060904-1, and 16_MCX-50-2-11/133_NH) are ROHS3 compliant. However, the REACH status differs: the 1363301-1 and 1060904-1 are REACH affected, while the Huber+Suhner part is REACH unaffected. Verify REACH compliance requirements for your specific application and regulatory jurisdiction.

Q: What packaging differences exist between the substitute parts?

A: The 1363301-1 original packaging includes 3 pieces (1 connector, 1 end cap, 1 ferrule). The 1060904-1 includes 2 pieces (1 connector, 1 end cap) in bulk packaging. The Huber+Suhner 16_MCX-50-2-11/133_NH does not specify included components. Verify that the packaging configuration and included components meet your assembly and inventory requirements.

Q: Can the cable group specifications (RG-316 versus RD-316 Double Braid) be used interchangeably?

A: The 1363301-1 specifies RG-316 cable group compatibility, while the 1060904-1 specifies RD-316 Double Braid. These are different cable specifications with different electrical and mechanical properties. Confirm that your system design can accommodate the double braid cable specification before selecting the 1060904-1, or verify that the cable group difference does not impact system performance.
