3M 13-6 Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

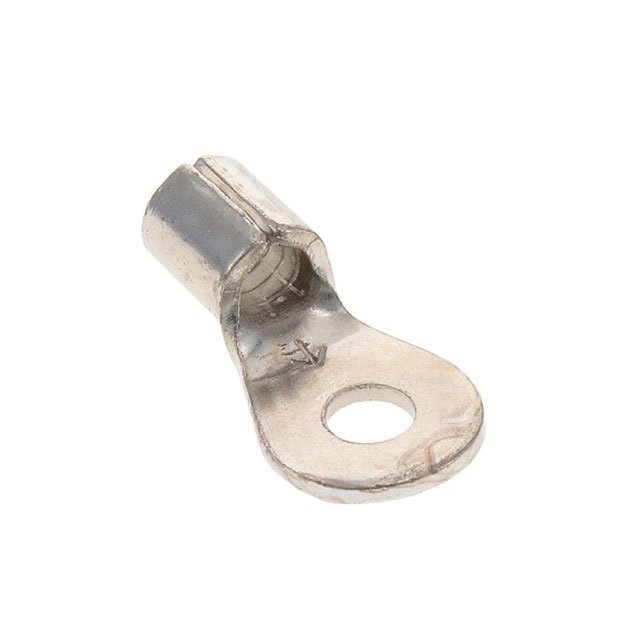

The 3M 13-6 is a circular ring terminal connector designed for 10-12 AWG wire gauges with a #6 stud crimp termination. This non-insulated copper terminal features a tin contact finish and butted seam construction, suitable for free-hanging in-line mounting applications. The part is ROHS3 compliant and currently active in production with 905 units in stock. Equivalent parts are identified when identical electrical and mechanical specifications are maintained across manufacturers, ensuring direct functional interchangeability in circuit assemblies and wiring harnesses.

Substiute Parts

13-6

3MIn Stock: 95813-6 Datasheet

Current PartRFQ

P10-6R-L

Panduit CorpIn Stock: 1134P10-6R-L Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The Panduit Corp P10-6R-L qualifies as a direct substitute for the 3M 13-6 based on the following critical parameters:

• Terminal Type: Both are circular ring terminals
• Stud/Tab Size: Both feature #6 stud configuration
• Wire Gauge: Both accommodate 10-12 AWG wire
• Termination: Both use crimp termination method
• Insulation: Both are non-insulated
• Contact Material: Both use copper with tin finish
• Mounting: Both are free-hanging in-line design
• Compliance: Both are ROHS3 compliant and REACH unaffected

Minor dimensional variations exist (thickness, width, and length) within acceptable tolerances for this terminal category. The P10-6R-L incorporates a brazed seam with serrated termination versus the 3M butted seam design, representing alternative manufacturing approaches that do not affect functional equivalence for standard wiring applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 13-6 and Panduit P10-6R-L are active production components with full regulatory compliance. Selection between these parts should be based on availability and lead time requirements. The 3M 13-6 currently maintains 905 units in stock, while the Panduit P10-6R-L has 1101 units available. Both parts meet ROHS3 and REACH compliance requirements, making either suitable for regulated applications. The dimensional differences in width and length are within acceptable mechanical tolerances for standard wiring harness assemblies and do not impact electrical performance or stud interface compatibility.

Frequently Asked Questions (FAQ)

Q: Can the Panduit P10-6R-L directly replace the 3M 13-6 in existing assemblies?

A: Yes. Both terminals share identical wire gauge (10-12 AWG), stud size (#6), termination method (crimp), and contact specifications (copper with tin finish). The minor dimensional variations do not affect functional interchangeability in standard applications.

Q: What is the difference between butted seam and brazed seam construction?

A: The 3M 13-6 uses butted seam construction, while the Panduit P10-6R-L uses brazed seam with serrated termination. Both approaches provide secure wire termination; the difference represents alternative manufacturing methods without impact on electrical performance.

Q: Are both parts compliant with environmental regulations?

A: Yes. Both the 3M 13-6 and Panduit P10-6R-L are ROHS3 compliant and REACH unaffected, meeting current environmental and hazardous substance restrictions.

Q: What packaging is available for these terminals?

A: Both parts are supplied in bulk packaging, suitable for high-volume assembly operations and component procurement workflows.

Q: Do these terminals require insulation?

A: No. Both the 3M 13-6 and Panduit P10-6R-L are non-insulated terminals. Insulation must be applied separately if required by the application design.
