MCX Connector Jack 133-9701-231 Equivalent & Substitute Parts

Part Overview

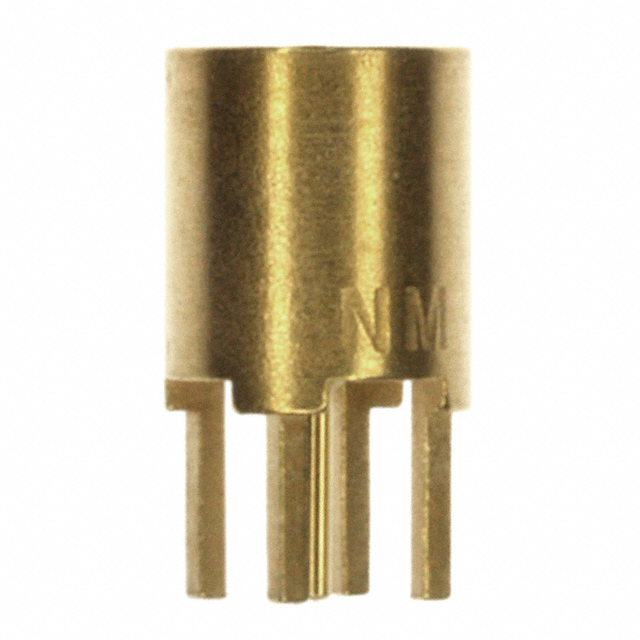

The Cinch Connectivity Solutions Johnson 133-9701-231 is an MCX connector jack, female socket rated for 50 ohms impedance. This through-hole solder-mount component operates across -65°C to 165°C and supports frequencies up to 6 GHz. The part is active in production with RoHS compliance and unlimited moisture sensitivity rating. Equivalent and substitute parts are identified when design requirements permit component sourcing flexibility, manufacturing continuity needs arise, or inventory constraints necessitate alternative suppliers while maintaining electrical and mechanical compatibility.

Substiute Parts

133-9701-231

Cinch Connectivity Solutions JohnsonIn Stock: 967133-9701-231 Datasheet

Current PartRFQ

133-3701-231

Cinch Connectivity Solutions JohnsonIn Stock: 10248133-3701-231 Datasheet

SimilarRFQ

133-9701-201

Cinch Connectivity Solutions JohnsonIn Stock: 883133-9701-201 Datasheet

Parametric EquivalentRFQ

133-9701-211

Cinch Connectivity SolutionsIn Stock: 2555133-9701-211 Datasheet

Parametric EquivalentRFQ

919-NM109J-51P

Amphenol RFIn Stock: 1353919-NM109J-51P Datasheet

Parametric EquivalentRFQ

R113426097

Radiall USA, Inc.In Stock: 1085R113426097 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 133-9701-231 are qualified based on strict electrical and mechanical parameter alignment. All identified substitutes maintain the following core requirements: MCX connector style, jack female socket configuration, 50 ohm impedance, solder contact and shield termination, through-hole mounting with snap-on fastening, 6 GHz maximum frequency operation, 500 mating cycles, beryllium copper center contact material, PTFE dielectric, gold plating on center contact and body finish, and gold housing color. Operating temperature range, voltage rating, body material composition, and compliance certifications may vary within acceptable engineering tolerances for this connector category. All substitutes are active production parts with RoHS3 compliance or equivalent regulatory status.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain full electrical and mechanical compatibility with the 133-9701-231 across the core MCX jack female socket 50 ohm specification. Selection among substitutes is determined by application-specific operating temperature requirements and compliance certifications.

The 133-3701-231, 133-9701-201, and 133-9701-211 are direct Cinch Connectivity Solutions variants with identical operating temperature ranges (-65°C to 165°C) and full RoHS3 compliance with REACH affected status. These parts differ only in body material composition (brass, copper alloy, or copper) and are suitable for applications requiring the extended temperature envelope.

The 919-NM109J-51P from Amphenol RF operates within a narrower temperature range (-40°C to 155°C) and carries RoHS3 compliance with REACH affected status. This part is suitable for applications where the reduced temperature specification is acceptable.

The R113426097 from Radiall USA operates within the most restricted temperature range (-55°C to 125°C) and carries RoHS3 compliance. This part is packaged in box format rather than bulk and has not applicable MSL rating. Selection of this part is appropriate only when application temperature requirements fall within its specified operating range.
