TE Connectivity 1-338070-2 Equivalent & Substitute Parts

Part Overview

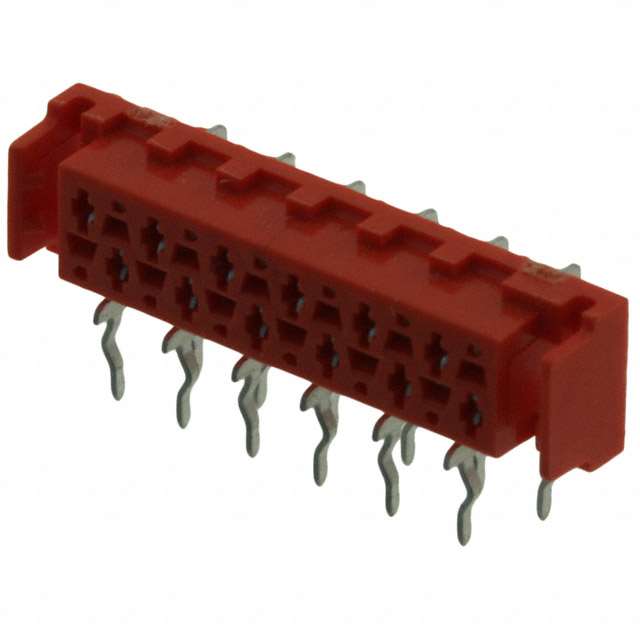

The TE Connectivity 1-338070-2 is a 12-position receptacle connector from the Micro-MaTch series, designed for board-to-board or cable applications. This connector features a 0.100" (2.54mm) pitch, right-angle through-hole mounting, and tin-plated forked contacts. The part is classified as Active and maintains full inventory availability with 2560 pieces in stock.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling functional interchangeability within defined application constraints.

Substiute Parts

1-338070-2

TE Connectivity AMP ConnectorsIn Stock: 26151-338070-2 Datasheet

Current PartRFQ

8-215570-2

TE Connectivity AMP ConnectorsIn Stock: 33998-215570-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1-338070-2 are identified based on the following critical parameters that determine functional compatibility:

Matching Parameters:

• Manufacturer: TE Connectivity AMP Connectors
• Series: Micro-MaTch
• Number of Positions: 12
• Number of Rows: 2
• Board-Side Pitch: 0.100" (2.54mm)
• Row Spacing: 0.100" (2.54mm)
• Contact Finish: Tin
• Mounting Type: Through Hole
• RoHS Status: ROHS3 Compliant
• Product Status: Active

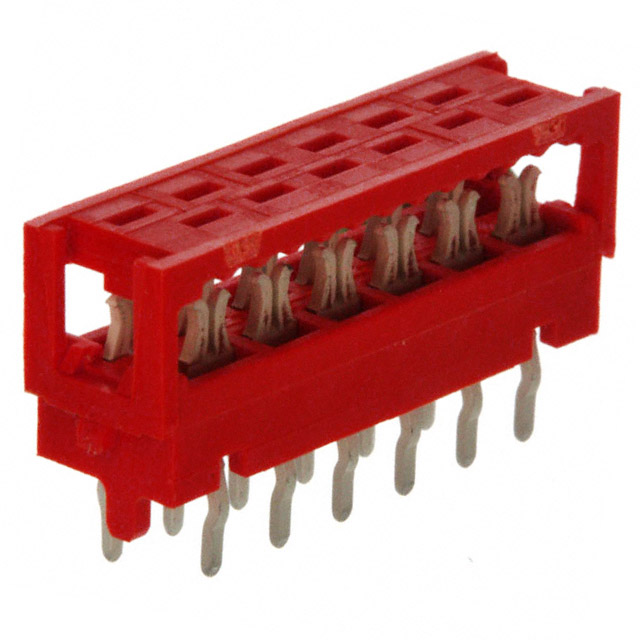

The substitute part 8-215570-2 shares the same connector family, position count, pitch specifications, and row configuration. Both parts are manufactured by TE Connectivity within the Micro-MaTch series and maintain identical board-side spacing and contact finish specifications. The primary functional difference lies in the connector interface type and cable termination method, which determines application-specific suitability.

Parameter Comparison

Engineering Selection Recommendations

Both the 1-338070-2 and 8-215570-2 maintain Active product status within the TE Connectivity Micro-MaTch series and satisfy ROHS3 compliance and REACH unaffected requirements. Selection between these parts is determined by application-specific interface requirements rather than electrical or environmental performance differences.

The 1-338070-2 receptacle connector with solder termination is suitable for applications requiring direct board-to-board or cable-to-board connections with soldered kinked pins. The 8-215570-2 ribbon cable DIP header with IDC termination is suitable for applications utilizing pre-terminated ribbon cables with press-fit board mounting.

Both parts support the same 12-position, 2-row configuration with 0.100" (2.54mm) pitch and maintain identical operating temperature ranges and voltage ratings. Component selection depends on whether the application requires a receptacle interface for mating connectors or a ribbon cable header interface for pre-assembled cable harnesses.

Frequently Asked Questions (FAQ)

Q: Can the 8-215570-2 directly replace the 1-338070-2 in existing designs?

A: Direct replacement depends on application interface requirements. The 1-338070-2 is a receptacle connector designed to mate with a complementary plug connector, while the 8-215570-2 is a ribbon cable DIP header designed to accept pre-terminated ribbon cables. Both share identical board-side pitch and row spacing, but the connector interface type differs. Replacement is possible only if the application can accommodate the different termination method.

Q: Are the pitch specifications identical between these parts?

A: Yes. Both parts maintain a 0.100" (2.54mm) board-side pitch and 0.100" (2.54mm) row spacing. The 8-215570-2 includes an additional 0.050" (1.27mm) cable-side pitch specification for ribbon cable accommodation, which does not affect board-level compatibility.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the 1-338070-2 and 8-215570-2 are ROHS3 compliant, REACH unaffected, and classified as Active products. Both maintain MSL 1 (Unlimited) moisture sensitivity levels and are manufactured by TE Connectivity within the Micro-MaTch series.

Q: What is the difference between solder termination and IDC termination?

A: The 1-338070-2 uses kinked pin solder termination, requiring manual soldering to the PCB. The 8-215570-2 uses IDC (Insulation Displacement Contact) termination, which accepts pre-terminated ribbon cables through a press-fit mounting method. The termination method determines the assembly process and cable interface type.

Q: Are the contact materials the same?

A: Both parts feature tin-plated contacts. The 1-338070-2 specifies phosphor bronze contact material with tin plating. Contact material specifications for the 8-215570-2 are not provided in the available parameters.

Q: What is the wire gauge specification for the 8-215570-2?

A: The 8-215570-2 accommodates 28 AWG stranded or solid wire in its IDC termination. This specification applies to the ribbon cable interface and does not affect board-level compatibility with the 0.100" (2.54mm) pitch requirement.
