Amphenol RF 132414 SMA Coaxial Connector Equivalent & Substitute Parts

Part Overview

The Amphenol RF 132414 is an SMA connector receptacle designed for board edge, end launch applications in 50 Ohm RF systems. This female socket connector features solder tab termination and operates across frequencies up to 18 GHz. The part maintains Active product status and is ROHS3 compliant with unlimited moisture sensitivity rating (MSL 1).

Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and design continuity across manufacturing environments where alternative connector configurations or packaging formats are acceptable within the specified electrical and mechanical parameters.

Substiute Parts

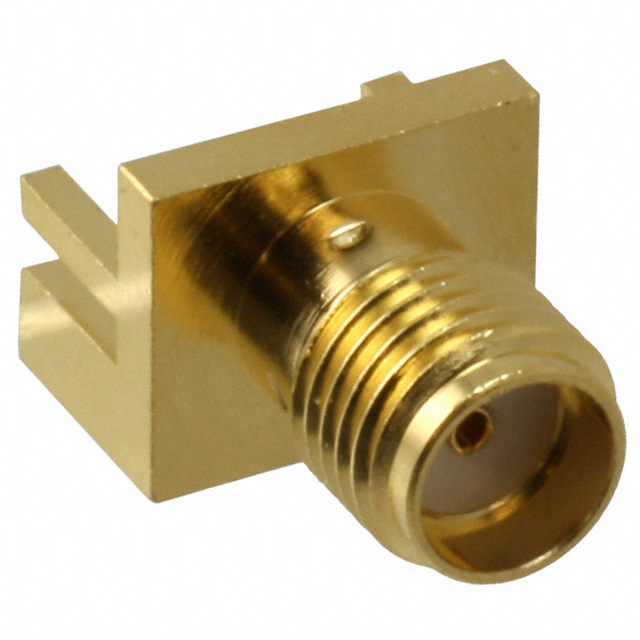

132414

Amphenol RFIn Stock: 1034132414 Datasheet

Current PartRFQ

132357-11

Amphenol RFIn Stock: 2680132357-11 Datasheet

Parametric EquivalentRFQ

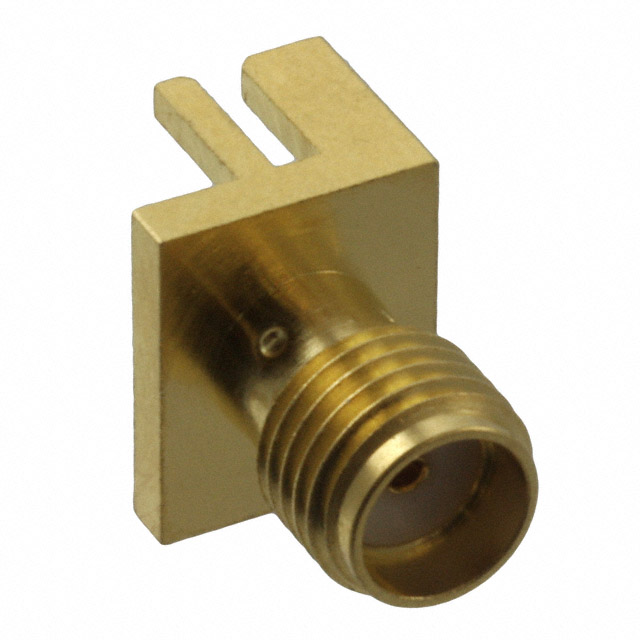

132430

Amphenol RFIn Stock: 898132430 Datasheet

Parametric EquivalentRFQ

142-0701-801

Cinch Connectivity Solutions JohnsonIn Stock: 9125142-0701-801 Datasheet

DirectRFQ

142-0701-841

Cinch Connectivity SolutionsIn Stock: 20579142-0701-841 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the Amphenol RF 132414 is based on strict electrical and mechanical parameter matching:

Parametric Equivalents (Amphenol RF Series): Parts 132357-11 and 132430 are classified as parametric equivalents. These parts maintain identical electrical specifications (50 Ohm impedance, 18 GHz frequency rating, -65°C to 165°C operating range, 500 mating cycles) and mechanical configuration (SMA receptacle, female socket, board edge end launch, solder termination). The primary distinction is packaging format: 132357-11 is supplied in Bulk packaging while 132430 is supplied in Bag packaging, matching the original 132414 bag format. Both parts share the same base product number (1324) and maintain full compliance with ROHS3 and REACH requirements.

Direct Manufacturer Equivalents (Cinch Connectivity Solutions): Parts 142-0701-801 and 142-0701-841 are classified as direct manufacturer equivalents from Cinch Connectivity Solutions Johnson. These parts satisfy all critical electrical parameters: 50 Ohm impedance, 18 GHz frequency capability, -65°C to 165°C operating temperature, 500 mating cycles, and identical dielectric material (PTFE). Mechanical configuration matches the primary application requirements: SMA jack (female socket), board edge end launch mounting, and solder termination. Both Cinch parts include an additional voltage rating specification (335 V) not provided for the Amphenol RF main part. Both are supplied in Bulk packaging and maintain ROHS3 and REACH compliance.

Key Parameters Determining Substitution:

• Connector style: SMA
• Connector type: Female socket (receptacle or jack terminology)
• Impedance: 50 Ohms
• Mounting configuration: Board edge, end launch
• Frequency range: 18 GHz maximum
• Operating temperature: -65°C to 165°C
• Termination method: Solder-based
• Mating cycles: 500
• Compliance: ROHS3, REACH

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed maintain Active product status and full compliance with ROHS3 and REACH regulatory requirements, matching the original Amphenol RF 132414 specification.

Amphenol RF 132357-11: This parametric equivalent is suitable for applications where bulk packaging is acceptable. Electrical and mechanical specifications are identical to the main part. Selection of this part supports inventory consolidation when bulk quantities are required.

Amphenol RF 132430: This parametric equivalent maintains bag packaging format consistent with the original part. All electrical and mechanical parameters are identical. This part is selected when packaging format preference aligns with the original specification.

Cinch Connectivity Solutions 142-0701-801 and 142-0701-841: These direct manufacturer equivalents satisfy all critical electrical and mechanical requirements. Both parts are supplied in bulk packaging. The 142-0701-841 variant provides higher inventory availability (20,558 pieces) compared to 142-0701-801 (9,111 pieces). Selection of Cinch parts is appropriate when cross-manufacturer sourcing is acceptable and bulk packaging meets procurement requirements.

All parts are suitable for 50 Ohm RF applications operating to 18 GHz with operating temperature range -65°C to 165°C and 500 mating cycle rating.

Frequently Asked Questions (FAQ)

Q: What is the primary difference between the Amphenol RF 132414 and its parametric equivalents 132357-11 and 132430?

A: The parametric equivalents maintain identical electrical and mechanical specifications. The distinction is packaging format: 132357-11 is supplied in Bulk packaging, while 132430 is supplied in Bag packaging (matching the original 132414). All three parts share the same base product number (1324) and are manufactured by Amphenol RF.

Q: Can Cinch Connectivity Solutions parts 142-0701-801 and 142-0701-841 be used as direct replacements for the Amphenol RF 132414?

A: Yes. Both Cinch parts satisfy all critical electrical parameters (50 Ohm impedance, 18 GHz frequency, -65°C to 165°C operating range, 500 mating cycles) and mechanical configuration (SMA female socket, board edge end launch, solder termination). Both maintain ROHS3 and REACH compliance. The primary difference is manufacturer and packaging format (Bulk).

Q: What is the difference between "Receptacle" and "Jack" terminology in the connector type specification?

A: Both terms refer to female socket connectors in SMA applications. The Amphenol RF parts use "Receptacle" terminology while the Cinch parts use "Jack" terminology. Both designations describe the same functional connector type: a female socket that accepts a male plug.

Q: Are there packaging considerations when selecting substitute parts?

A: Yes. The original Amphenol RF 132414 is supplied in Bag packaging. Parametric equivalent 132430 maintains this format. Parametric equivalent 132357-11 and both Cinch parts (142-0701-801 and 142-0701-841) are supplied in Bulk packaging. Selection should account for procurement quantity requirements and inventory management practices.

Q: Do all substitute parts meet the same compliance requirements as the original part?

A: Yes. All substitute parts listed are ROHS3 compliant and REACH affected, matching the original Amphenol RF 132414. All parts maintain Moisture Sensitivity Level 1 (Unlimited) rating.

Q: What is the inventory availability for each substitute part?

A: Amphenol RF 132357-11 has 2,572 pieces in stock. Amphenol RF 132430 has 888 pieces in stock. Cinch 142-0701-801 has 9,111 pieces in stock. Cinch 142-0701-841 has 20,558 pieces in stock. The original Amphenol RF 132414 has 1,005 pieces in stock.

Q: Are there any electrical performance differences between the substitute parts?

A: No. All substitute parts maintain identical electrical specifications: 50 Ohm impedance, 18 GHz maximum frequency, -65°C to 165°C operating temperature range, 500 mating cycles, and identical material composition (Beryllium Copper center contact, Brass body with Gold finish, PTFE dielectric).
