Amphenol RF 132409-10 Equivalent & Substitute Parts

Part Overview

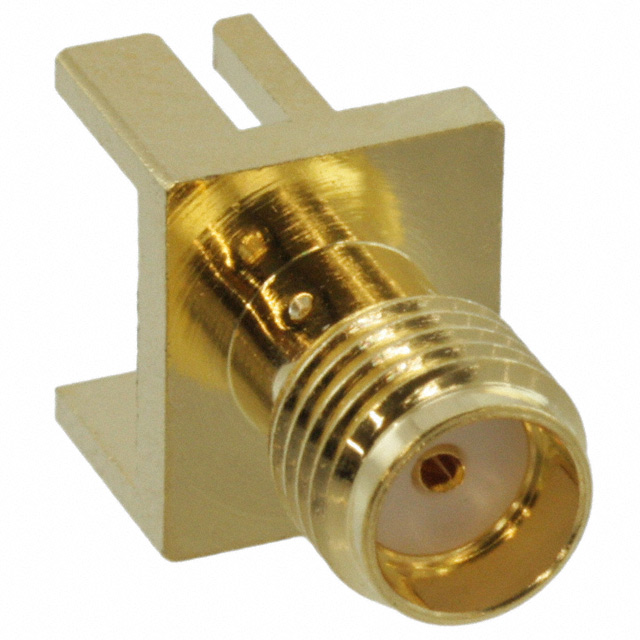

The Amphenol RF 132409-10 is an SMA Connector Receptacle, Female Socket rated for 50 Ohms impedance with board edge, end launch solder termination. This coaxial RF connector is designed for applications requiring frequencies up to 18 GHz and operates across a temperature range of -65°C to 165°C. The part maintains Active product status and is ROHS3 compliant with REACH affected designation. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in circuit designs.

Substiute Parts

132409-10

Amphenol RFIn Stock: 864132409-10 Datasheet

Current PartRFQ

132255-12

Amphenol RFIn Stock: 1305132255-12 Datasheet

Parametric EquivalentRFQ

132322

Amphenol RFIn Stock: 3405132322 Datasheet

Parametric EquivalentRFQ

132323

Amphenol RFIn Stock: 713132323 Datasheet

Parametric EquivalentRFQ

132432

Amphenol RFIn Stock: 2256132432 Datasheet

Parametric EquivalentRFQ

142-0701-801

Cinch Connectivity Solutions JohnsonIn Stock: 9125142-0701-801 Datasheet

DirectRFQ

72970

Pomona ElectronicsIn Stock: 181472970 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 132409-10 are classified based on strict alignment with the following critical parameters: SMA connector style, receptacle female socket configuration, 50 Ohm impedance, board edge end launch mounting, solder termination for both contact and shield, threaded fastening, 18 GHz maximum frequency, single port configuration, -65°C to 165°C operating temperature range, 500 mating cycles, beryllium copper center contact material, brass body with gold finish, PTFE dielectric, and ROHS3 compliance.

Amphenol RF parts 132255-12, 132322, 132323, and 132432 are parametric equivalents manufactured by Amphenol RF, sharing identical electrical and mechanical specifications with the main part. These parts differ only in packaging format (Bulk or Bag) and inventory levels.

Cinch Connectivity Solutions Johnson part 142-0701-801 is classified as a direct manufacturer substitute. While designated as a Jack rather than Receptacle in terminology, it maintains functional equivalence through identical SMA connector style, female socket configuration, 50 Ohm impedance, board edge end launch mounting, solder termination, threaded fastening, 18 GHz frequency rating, operating temperature range, mating cycles, material composition, and ROHS3 compliance. This part includes an additional voltage rating specification of 335 V.

Pomona Electronics part 72970 is a parametric equivalent offering identical electrical and mechanical parameters including SMA style, receptacle female socket, 50 Ohm impedance, board edge end launch mounting, solder termination, threaded fastening, 18 GHz frequency, operating temperature, mating cycles, and material specifications. This part specifies a 500 V voltage rating and carries ROHS3 compliance with REACH unaffected status.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain Active product status and ROHS3 compliance, establishing baseline compatibility with the Amphenol RF 132409-10 for applications requiring regulatory adherence.

Amphenol RF parametric equivalents (132255-12, 132322, 132323, 132432) are direct functional replacements manufactured by the same supplier. Selection among these parts is determined by packaging requirements: 132255-12 is supplied in Bulk packaging, while 132322, 132323, and 132432 are supplied in Bag packaging. Inventory availability ranges from 677 to 3308 pieces across these variants.

The Cinch Connectivity Solutions Johnson part 142-0701-801 provides cross-manufacturer substitution with identical electrical and mechanical specifications. This part carries a specified voltage rating of 335 V and is available in Bulk packaging with 9111 pieces in inventory.

The Pomona Electronics part 72970 offers an alternative cross-manufacturer option with equivalent performance parameters. This part specifies a 500 V voltage rating, carries REACH unaffected status, and is available in Bulk packaging with 1760 pieces in inventory.

Selection between Amphenol RF internal variants, Cinch Connectivity Solutions Johnson, and Pomona Electronics options depends on supply chain requirements, packaging preferences, voltage rating specifications, and regulatory compliance documentation needs.
