Amphenol RF 132289 SMA Coaxial Connector Receptacle Equivalent & Substitute Parts
Part Overview
The Amphenol RF 132289 is an SMA connector receptacle designed for 50 Ohm RF applications. This female socket connector features board edge, end launch mounting with solder termination and is rated for operation up to 18 GHz. The part is Active status and ROHS3 compliant. Equivalent and substitute parts are identified to support design flexibility, inventory management, and supply chain continuity for applications requiring SMA receptacle connectors with identical or compatible electrical and mechanical specifications.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 132289 |
| Manufacturer | Amphenol RF |
| Category | Coaxial Connectors (RF) |
| Connector Style | SMA |
| Connector Type | Receptacle, Female Socket |
| Impedance | 50 Ohms |
| Mounting Type | Board Edge, End Launch; Panel Mount |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Frequency - Max | 18 GHz |
| Operating Temperature | -65°C ~ 165°C |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Material | Brass |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitute parts for the Amphenol RF 132289 are classified into two categories based on parametric equivalence and compatibility:

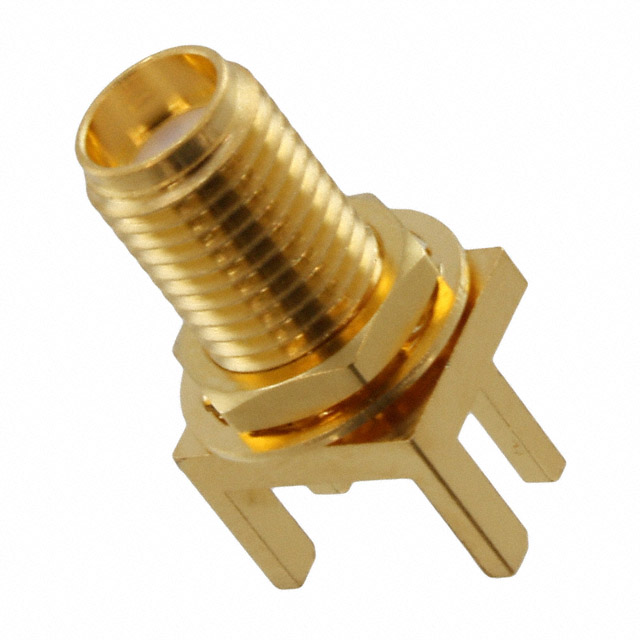

Parametric Equivalents (Amphenol RF): Parts 132371 and 132416 are direct parametric equivalents manufactured by Amphenol RF. These parts share identical electrical specifications (50 Ohm impedance, 18 GHz maximum frequency, solder termination), mechanical mounting characteristics (board edge, end launch, panel mount with bulkhead front side nut), materials (beryllium copper center contact, brass body with gold finish, PTFE dielectric), operating temperature range (-65°C to 165°C), mating cycle rating (500), and compliance status (ROHS3 compliant, REACH affected). The primary distinction is the base product number designation.
Direct and Similar Manufacturers (Cinch Connectivity Solutions Johnson): Parts 142-0701-871, 142-0701-881, 142-0711-871, and related variants from Cinch Connectivity Solutions are classified as direct or similar substitutes. These parts maintain electrical compatibility (50 Ohm impedance, 18 GHz maximum frequency, solder termination for contact and shield) and mechanical compatibility (board edge, end launch mounting, threaded fastening, beryllium copper center contact, brass body with gold finish, PTFE dielectric, -65°C to 165°C operating temperature, 500 mating cycles). Cinch parts include an additional voltage rating specification (335 V) not present in the Amphenol RF main part specification. Minor variations exist in packaging format (bulk versus bag/tray), mounting feature designation, and RoHS/REACH compliance status across specific Cinch variants.
Key Parameters Determining Substitution:
- Connector style: SMA
- Connector type: Female socket (receptacle/jack)
- Impedance: 50 Ohms
- Mounting type: Board edge, end launch
- Termination: Solder (contact and shield)
- Frequency rating: 18 GHz maximum
- Operating temperature: -65°C to 165°C
- Mating cycles: 500
- Center contact material: Beryllium copper
- Body material: Brass
- Dielectric material: PTFE
Parameter Comparison
| Parameter | 132289 (Amphenol RF) | 132371 (Amphenol RF) | 132416 (Amphenol RF) | 142-0701-871 (Cinch) | 142-0701-881 (Cinch) | 142-0711-871 (Cinch) |
|---|---|---|---|---|---|---|
| Manufacturer | Amphenol RF | Amphenol RF | Amphenol RF | Cinch Connectivity Solutions Johnson | Cinch Connectivity Solutions Johnson | Cinch Connectivity Solutions |
| Connector Style | SMA | SMA | SMA | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Mounting Type | Board Edge, End Launch; Panel Mount | Board Edge, End Launch; Panel Mount | Board Edge, End Launch; Panel Mount | Board Edge, End Launch; Panel Mount | Board Edge, End Launch | Board Edge, End Launch |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz | 18 GHz |
| Operating Temperature | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C |
| Mating Cycles | 500 | 500 | 500 | 500 | 500 | 500 |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Body Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Body Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Center Contact Plating | Gold | Gold | Gold | Gold | Gold | Gold |
| Dielectric Material | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| REACH Status | REACH Affected | REACH Affected | REACH Affected | REACH Affected | REACH Affected | REACH Affected |
Engineering Selection Recommendations
Amphenol RF Parametric Equivalents (132371, 132416): These parts are direct substitutes for the 132289 within the Amphenol RF product line. Both maintain identical electrical and mechanical specifications, operating parameters, and compliance certifications. Selection between 132289, 132371, and 132416 is based on inventory availability and supply chain requirements, as all three parts are Active status and ROHS3 compliant with REACH affected designation.
Cinch Connectivity Solutions Substitutes (142-0701-871, 142-0701-881, 142-0711-871, and variants): These parts provide cross-manufacturer substitution capability. All Cinch variants listed maintain the critical electrical parameters (50 Ohm impedance, 18 GHz frequency rating, solder termination) and mechanical compatibility (board edge end launch mounting, beryllium copper center contact, brass body with gold plating, PTFE dielectric, -65°C to 165°C operating temperature, 500 mating cycles). All listed Cinch parts are ROHS3 compliant and REACH affected, matching the compliance profile of the main part. Cinch parts include voltage rating specification (335 V) as an additional parameter. Selection of specific Cinch variants should account for packaging format differences (bulk versus tray) and any project-specific requirements regarding mounting feature designation.
Compliance Alignment: All substitute parts maintain ROHS3 compliance and REACH affected status consistent with the Amphenol RF 132289, ensuring regulatory alignment for applications subject to these requirements.
Frequently Asked Questions (FAQ)
Q: Can Amphenol RF 132371 and 132416 be used interchangeably with 132289?
A: Yes. Parts 132371 and 132416 are parametric equivalents to 132289. All three parts share identical electrical specifications (50 Ohm impedance, 18 GHz maximum frequency), mechanical mounting characteristics (board edge, end launch, panel mount with bulkhead front side nut), materials (beryllium copper center contact, brass body with gold finish, PTFE dielectric), operating temperature range (-65°C to 165°C), mating cycle rating (500), and compliance status (ROHS3 compliant, REACH affected). Substitution is based on availability and supply requirements.
Q: What is the difference between Amphenol RF receptacle and Cinch Jack terminology?
A: Both Amphenol RF receptacle and Cinch Jack designations refer to the same functional connector type: a female socket SMA connector. The terminology difference reflects manufacturer naming conventions but does not indicate functional or electrical differences. Both are compatible with standard SMA male plug connectors.
Q: Are Cinch Connectivity Solutions parts fully compatible with Amphenol RF 132289?
A: Cinch parts 142-0701-871, 142-0701-881, 142-0711-871, and related variants maintain electrical and mechanical compatibility with 132289. All parts share the same connector style (SMA), impedance (50 Ohms), frequency rating (18 GHz), mounting type (board edge, end launch), termination method (solder), materials (beryllium copper center contact, brass body with gold finish, PTFE dielectric), operating temperature range (-65°C to 165°C), and mating cycle rating (500). Cinch parts include an additional voltage rating specification (335 V) not present in the Amphenol RF specification. All listed Cinch variants are ROHS3 compliant and REACH affected.
Q: What packaging formats are available for substitute parts?
A: Amphenol RF 132289, 132371, and 132416 are supplied in bag packaging. Cinch Connectivity Solutions variants are supplied in bulk or tray packaging. Packaging format selection should be based on assembly process requirements and inventory management practices. Electrical and mechanical specifications are independent of packaging format.
Q: Do all substitute parts include the lockwasher and nut?

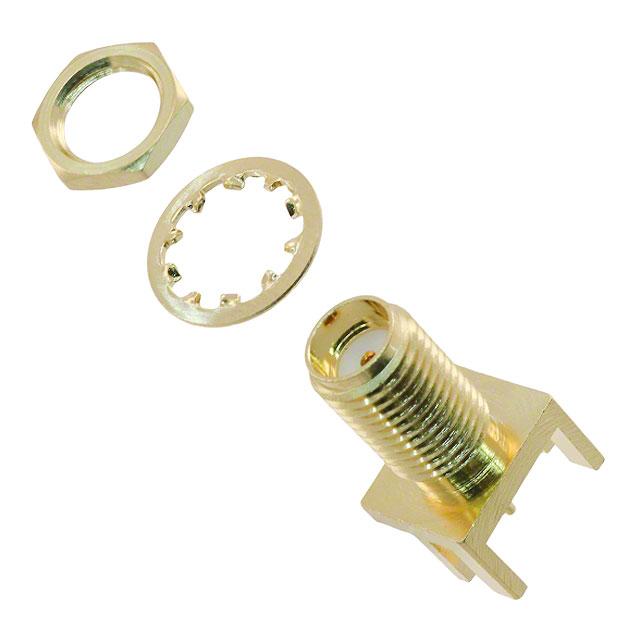

A: Amphenol RF parts 132289, 132371, and 132416 include 3 pieces per connector: 1 connector, 1 lockwasher, and 1 nut. Cinch Connectivity Solutions parts do not include lockwasher and nut accessories in their standard packaging. Verify accessory requirements for your application and procurement accordingly.
Q: Are there differences in RoHS or REACH compliance between substitute parts?
A: Amphenol RF parts 132289, 132371, and 132416 are all ROHS3 compliant and REACH affected. Most Cinch variants listed (142-0701-871, 142-0701-881, 142-0711-871, 142-0711-841) are ROHS3 compliant and REACH affected. Part 142-0701-806 and 142-0711-821 are RoHS compliant (not ROHS3) and REACH unaffected. Verify compliance requirements for your specific application before selecting parts with different compliance designations.
Q: What is the maximum frequency rating for these connectors?
A: All substitute parts listed are rated for maximum frequency operation up to 18 GHz. This rating applies to both Amphenol RF and Cinch Connectivity Solutions variants.
Q: Can these connectors be used in high-temperature applications?
A: Yes. All substitute parts are rated for operating temperatures from -65°C to 165°C. This temperature range supports both cryogenic and elevated temperature applications within the specified limits.
