Amphenol RF 132255 SMA Connector Receptacle Equivalent & Substitute Parts

Part Overview

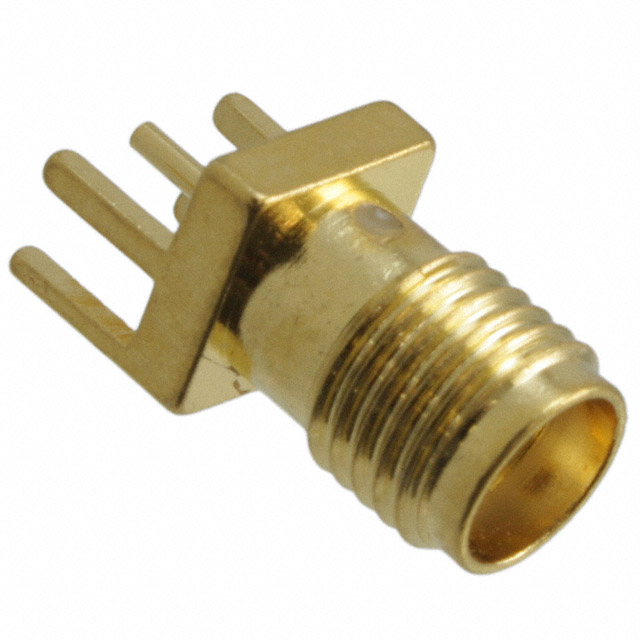

The Amphenol RF 132255 is an SMA connector receptacle designed for board edge, end launch applications with 50 ohm impedance. This female socket connector features solder termination and operates across a frequency range up to 18 GHz. The part is Active in product status and ROHS3 compliant, making it suitable for modern RF and microwave circuit applications requiring reliable coaxial connectivity.

Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support applications where alternative packaging formats or manufacturer sources are acceptable within the specified electrical and mechanical parameters.

Key Parameters

Parameter	Value
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Impedance	50 Ohms
Mounting Type	Board Edge, End Launch
Contact Termination	Solder
Shield Termination	Solder
Frequency Maximum	18 GHz
Operating Temperature Range	-65°C to 165°C
Mating Cycles	500
Center Contact Material	Beryllium Copper
Body Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 132255 are classified into three categories based on parametric equivalence and compatibility:

Parametric Equivalents (Amphenol RF Manufacturer): Parts 132255-12, 132322, 132323, and 132432 maintain identical electrical specifications including 50 ohm impedance, 18 GHz maximum frequency, solder termination, and operating temperature range of -65°C to 165°C. These parts differ only in packaging format (Bulk versus Bag) and inventory availability. All parametric equivalents share the same connector style (SMA), connector type (Receptacle, Female Socket), mounting configuration (Board Edge, End Launch), and material composition (Beryllium Copper center contact, Brass body with Gold finish, PTFE dielectric).

Direct Manufacturer Equivalents (Cinch Connectivity Solutions): Parts 142-0701-801 and 142-0701-851 are functionally equivalent SMA connectors from an alternative manufacturer. These parts maintain the same electrical parameters, impedance, frequency range, and operating temperature specifications. The primary distinction is the connector type designation (Jack versus Receptacle), which represents equivalent female socket functionality across manufacturers. Part 142-0701-851 specifies Solder Tab contact termination rather than standard Solder termination.

Similar Alternatives (Cinch Connectivity Solutions): Parts 142-0701-806, 142-0701-841, 142-0701-881, and 142-0711-821 provide SMA connector solutions with matching electrical performance and mechanical mounting. These alternatives differ in housing color and body finish specifications. Part 142-0701-806 features Silver housing with Nickel body finish and RoHS Compliant status (non-ROHS3). Parts 142-0701-841, 142-0701-881, and 142-0711-821 maintain Gold housing and Gold body finish consistent with the primary part.

Substitution eligibility is determined by matching the following critical parameters: Connector Style (SMA), Connector Type (Female Socket), Impedance (50 Ohms), Mounting Type (Board Edge, End Launch), Frequency Maximum (18 GHz), Operating Temperature Range (-65°C to 165°C), and Mating Cycles (500).

Parameter Comparison

Part Number	Manufacturer	Connector Type	Impedance	Frequency Max	Contact Termination	Housing Color	Body Finish	Operating Temp	RoHS Status	Packaging	Inventory
132255	Amphenol RF	Receptacle, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bag	1272 Pcs
132255-12	Amphenol RF	Receptacle, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bulk	1278 Pcs
132322	Amphenol RF	Receptacle, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bag	3308 Pcs
132323	Amphenol RF	Receptacle, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bag	677 Pcs
132432	Amphenol RF	Receptacle, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bag	2228 Pcs
142-0701-801	Cinch Connectivity Solutions Johnson	Jack, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bulk	9111 Pcs
142-0701-851	Cinch Connectivity Solutions	Jack, Female Socket	50 Ohms	18 GHz	Solder Tab	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Tray	2320 Pcs
142-0701-806	Cinch Connectivity Solutions	Jack, Female Socket	50 Ohms	18 GHz	Solder	Silver	Nickel	-65°C to 165°C	RoHS Compliant	Bulk	2749 Pcs
142-0701-841	Cinch Connectivity Solutions	Jack, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bulk	20558 Pcs
142-0701-881	Cinch Connectivity Solutions Johnson	Jack, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	ROHS3 Compliant	Bulk	3866 Pcs
142-0711-821	Cinch Connectivity Solutions	Jack, Female Socket	50 Ohms	18 GHz	Solder	Gold	Gold	-65°C to 165°C	RoHS Compliant	Bulk	2052 Pcs

Engineering Selection Recommendations

Amphenol RF Parametric Equivalents (132255-12, 132322, 132323, 132432): These parts are direct parametric substitutes for the primary part 132255. All maintain ROHS3 compliance and identical electrical specifications. Selection among these equivalents is determined by packaging requirements and inventory availability. Part 132255-12 is available in Bulk packaging, while parts 132322, 132323, and 132432 are supplied in Bag format. Part 132322 offers the highest inventory level at 3308 pieces.

Cinch Connectivity Solutions Direct Equivalents (142-0701-801, 142-0701-851): These parts provide cross-manufacturer substitution with full electrical and mechanical compatibility. Part 142-0701-801 features standard Solder contact termination and Bulk packaging with 9111 pieces in inventory. Part 142-0701-851 specifies Solder Tab contact termination and Tray packaging with 2320 pieces available. Both maintain ROHS3 compliance and identical operating parameters to the primary part.

Cinch Connectivity Solutions Similar Alternatives (142-0701-806, 142-0701-841, 142-0701-881, 142-0711-821): These parts maintain electrical equivalence and mechanical compatibility while differing in finish specifications or compliance certifications. Part 142-0701-806 features Nickel body finish with Silver housing and RoHS Compliant (non-ROHS3) status, suitable for applications where ROHS3 certification is not required. Parts 142-0701-841 and 142-0701-881 provide Gold finish matching the primary part with ROHS3 compliance; part 142-0701-841 offers the highest inventory at 20558 pieces. Part 142-0711-821 maintains Gold finish with RoHS Compliant status and 2052 pieces in inventory.

All substitute parts are Active in product status and maintain the critical electrical parameters: 50 ohm impedance, 18 GHz maximum frequency, -65°C to 165°C operating temperature range, and 500 mating cycles.

Frequently Asked Questions (FAQ)

Q: Can Amphenol RF part 132255 be directly replaced with Cinch Connectivity Solutions part 142-0701-801?

A: Yes. Both parts maintain identical electrical specifications including 50 ohm impedance, 18 GHz maximum frequency, solder termination, and operating temperature range of -65°C to 165°C. The connector type designation (Receptacle versus Jack) represents equivalent female socket functionality across manufacturers. Both parts are ROHS3 compliant and suitable for board edge, end launch applications.

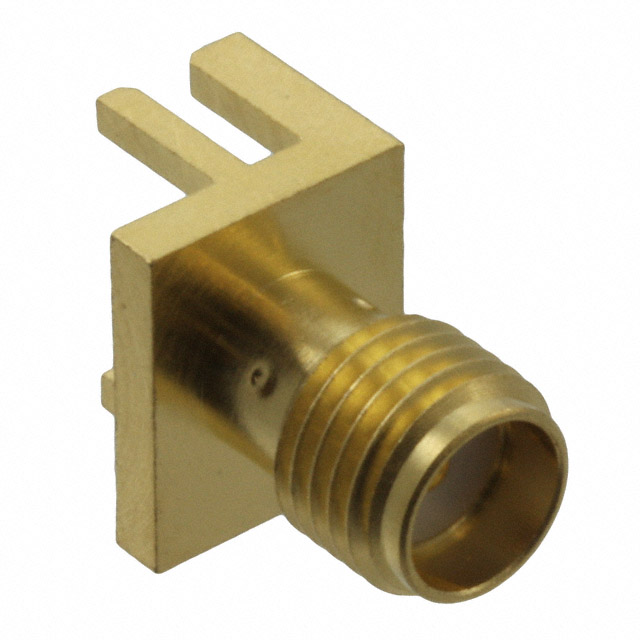

Q: What is the difference between part 132255 and 132255-12?

A: Parts 132255 and 132255-12 are parametric equivalents with identical electrical and mechanical specifications. The primary difference is packaging format: part 132255 is supplied in Bag packaging with 1272 pieces in inventory, while part 132255-12 is supplied in Bulk packaging with 1278 pieces in inventory. Both are ROHS3 compliant and Active in product status.

Q: Is part 142-0701-851 compatible with applications designed for part 132255?

A: Part 142-0701-851 maintains electrical equivalence with identical impedance, frequency range, and operating temperature specifications. The distinction is contact termination: part 142-0701-851 specifies Solder Tab termination rather than standard Solder termination. This difference affects board assembly methodology and should be evaluated against specific PCB design requirements. Both parts are ROHS3 compliant.

Q: Why does part 142-0701-806 have different finish specifications?

A: Part 142-0701-806 features Silver housing with Nickel body finish, compared to the Gold housing and Gold body finish of part 132255. This alternative finish specification maintains electrical equivalence and mechanical compatibility while offering different corrosion resistance characteristics. Part 142-0701-806 is RoHS Compliant but not ROHS3 certified. Selection should be based on application requirements for finish specifications and compliance certifications.

Q: Can parts 132322, 132323, and 132432 be used interchangeably with part 132255?

A: Yes. Parts 132322, 132323, and 132432 are parametric equivalents with identical electrical specifications, impedance, frequency range, operating temperature, and material composition. All are ROHS3 compliant and supplied in Bag packaging. Selection among these parts is determined by inventory availability and application quantity requirements.

Q: What is the significance of the voltage rating specification on Cinch parts?

A: Cinch Connectivity Solutions parts 142-0701-801, 142-0701-851, 142-0701-841, 142-0701-881, and 142-0711-821 specify a voltage rating of 335 V. This parameter is not provided for the Amphenol RF primary part 132255. The voltage rating indicates the maximum voltage the connector can safely handle. Applications requiring voltage rating verification should confirm compatibility with the 335 V specification of Cinch parts.

Q: Are all substitute parts suitable for high-frequency RF applications up to 18 GHz?

A: Yes. All substitute parts listed maintain the 18 GHz maximum frequency specification of the primary part 132255. All parts feature identical dielectric material (PTFE), center contact material (Beryllium Copper), and impedance (50 Ohms), which are critical parameters for RF performance. All parts are suitable for applications requiring operation across the full 18 GHz frequency range.

Q: What packaging options are available for substitution?

A: Packaging options include Bag (parts 132255, 132322, 132323, 132432), Bulk (parts 132255-12, 142-0701-801, 142-0701-806, 142-0701-841, 142-0701-881, 142-0711-821), and Tray (part 142-0701-851). Packaging selection should be based on assembly process requirements, inventory management practices, and quantity needs. All packaging formats maintain identical component specifications and performance characteristics.
