Amphenol RF 132215 SMA Coaxial Connector Equivalent & Substitute Parts

Part Overview

The Amphenol RF 132215 is an SMA connector receptacle designed for RF coaxial applications requiring 50 ohm impedance. This female socket connector features a panel mount configuration with solder cup termination for both center contact and shield. The part is classified as Active product status and is ROHS3 compliant with REACH affected designation. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications utilizing SMA receptacle connectors with identical electrical and mechanical specifications.

Substiute Parts

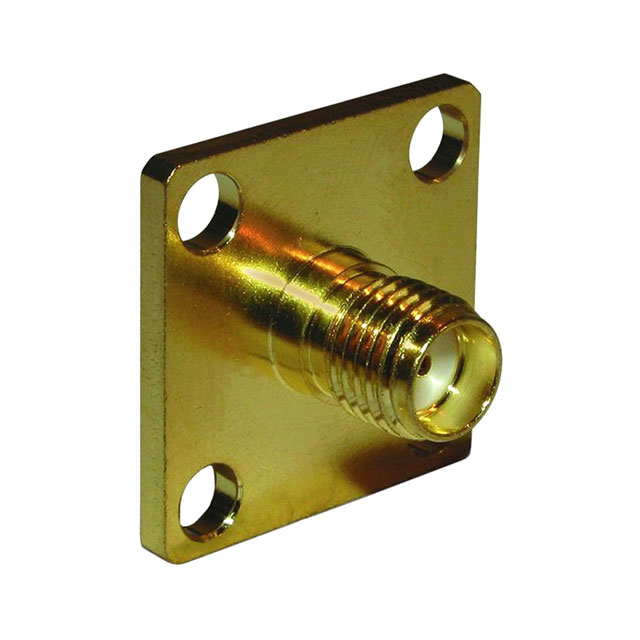

132215

Amphenol RFIn Stock: 1000132215 Datasheet

Current PartRFQ

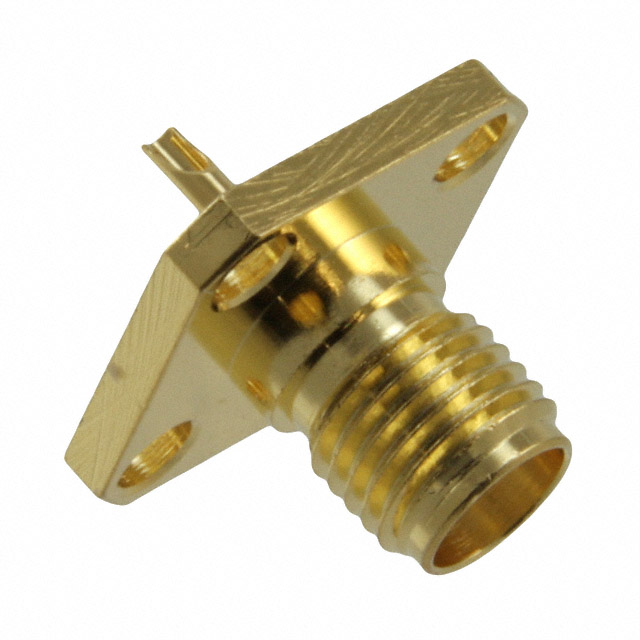

132142

Amphenol RFIn Stock: 1482132142 Datasheet

Parametric EquivalentRFQ

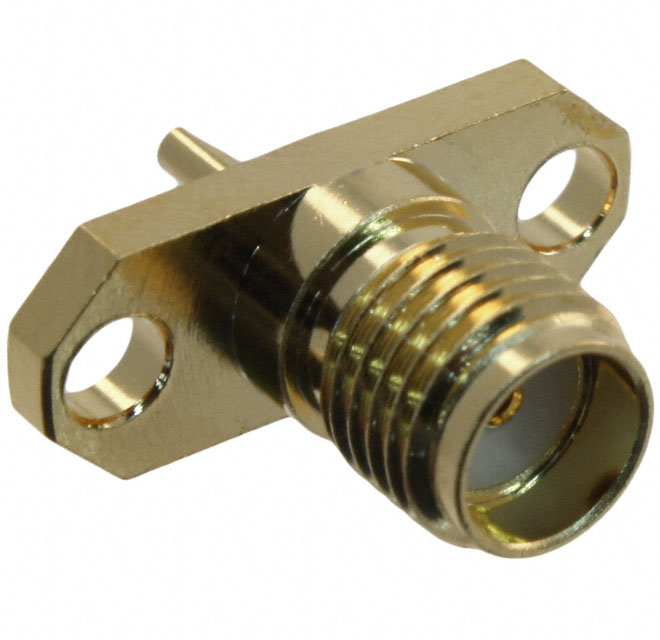

132143

Amphenol RFIn Stock: 1188132143 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 132215 are identified based on parametric equivalence across all critical electrical and mechanical specifications. The substitution logic is based on matching the following parameters:

• Connector style (SMA)
• Connector type (Receptacle, Female Socket)
• Impedance (50 Ohms)
• Contact and shield termination method (Solder Cup / Solder)
• Mounting configuration (Panel Mount with Flange)
• Fastening type (Threaded)
• Maximum frequency rating (12.4 GHz)
• Operating temperature range (-65°C ~ 165°C)
• Mating cycle rating (500)
• Material composition (Beryllium Copper center contact, Brass body, PTFE dielectric)
• Compliance certifications (ROHS3 Compliant, REACH Affected)

Parts 132142 and 132143 satisfy all these parameters and are classified as parametric equivalents. These parts are interchangeable for applications requiring SMA female receptacle connectors with solder termination and 50 ohm impedance.

Parameter Comparison

Engineering Selection Recommendations

All three parts (132215, 132142, and 132143) are classified as Active product status and carry identical compliance certifications including ROHS3 compliance and REACH affected designation. The parts share the same ECCN classification (EAR99) and HTSUS code (8536.69.4010), indicating equivalent regulatory treatment.

Selection between these parts is based on availability and inventory status. Part 132215 maintains 898 pieces in stock, part 132142 maintains 1470 pieces in stock, and part 132143 maintains 1156 pieces in stock. All parts are supplied in bag packaging and are new original inventory.

For applications requiring SMA female receptacle connectors with solder termination, 50 ohm impedance, and panel mount configuration, any of these three parts satisfy the electrical and mechanical requirements without modification or additional qualification.

Frequently Asked Questions (FAQ)

Q: Are parts 132142 and 132143 direct substitutes for part 132215?

A: Yes. Parts 132142 and 132143 are parametric equivalents to part 132215. All three parts share identical specifications across connector style, impedance, termination method, mounting configuration, frequency rating, operating temperature range, material composition, and compliance certifications.

Q: What determines whether a part can substitute for the 132215?

A: Substitution is determined by matching all critical parameters: SMA connector style, receptacle female socket type, 50 ohm impedance, solder cup contact termination, solder shield termination, panel mount with flange, threaded fastening, 12.4 GHz maximum frequency, -65°C to 165°C operating temperature, 500 mating cycles, beryllium copper center contact, brass body with gold finish, PTFE dielectric, and ROHS3 compliance.

Q: Can these parts be used interchangeably in existing designs?

A: Yes. The parts are electrically and mechanically equivalent and can be used interchangeably in applications designed for SMA female receptacle connectors with solder termination and 50 ohm impedance.

Q: What is the packaging format for these parts?

A: All three parts are supplied in bag packaging as new original inventory.

Q: Are there any temperature or frequency limitations that differ between these parts?

A: No. All three parts operate across the identical temperature range of -65°C to 165°C and support frequencies up to 12.4 GHz maximum.

Q: What is the moisture sensitivity level for these connectors?

A: All three parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.

Q: Do these parts have different compliance or regulatory classifications?

A: No. All three parts are ROHS3 compliant, REACH affected, classified as EAR99 for export control purposes, and carry the same HTSUS code (8536.69.4010).
