Amphenol RF 132150 SMA Coaxial Connector Equivalent & Substitute Parts

Part Overview

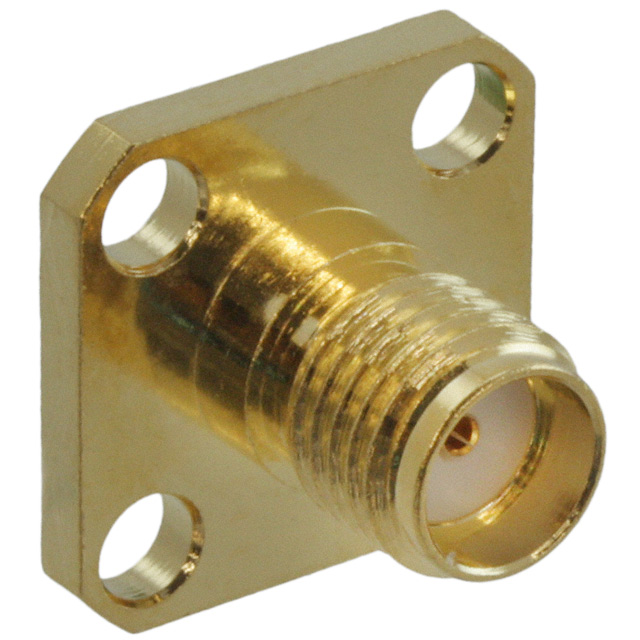

The Amphenol RF 132150 is an SMA Connector Receptacle, Female Socket rated for 50 Ohms impedance with solder termination and panel mount configuration. This component is classified as Active product status and is designed for RF coaxial applications requiring threaded fastening and gold-plated contacts. Substitute parts are identified when inventory constraints, lead time requirements, or specific application parameters necessitate alternative component selection while maintaining electrical and mechanical compatibility within the 50 Ohm SMA connector category.

Substiute Parts

132150

Amphenol RFIn Stock: 1205132150 Datasheet

Current PartRFQ

132204

Amphenol RFIn Stock: 1261132204 Datasheet

Parametric EquivalentRFQ

142-1701-191

Cinch Connectivity SolutionsIn Stock: 1399142-1701-191 Datasheet

SimilarRFQ

HRM-301(09)

Hirose Electric Co LtdIn Stock: 1142HRM-301(09) Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Amphenol RF 132150 are classified based on strict electrical and mechanical parameter alignment within the SMA coaxial connector category. Substitution eligibility is determined by the following mandatory parameters:

Core Substitution Criteria:

• Connector Style: SMA
• Connector Type: Receptacle, Female Socket
• Impedance: 50 Ohms
• Contact Termination: Solder
• Shield Termination: Solder
• Mounting Type: Panel Mount
• Mounting Feature: Flange
• Fastening Type: Threaded
• Number of Ports: 1
• Center Contact Material: Beryllium Copper
• Body Finish: Gold
• Center Contact Plating: Gold
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• RoHS Status: ROHS3 Compliant or RoHS Compliant
• Moisture Sensitivity Level (MSL): 1 (Unlimited)

Parametric Equivalents (132204, HRM-301(09)) maintain all core substitution criteria with identical or compatible specifications across electrical performance and mechanical interface.

Similar Manufacturers (142-1701-191) maintain core substitution criteria with noted variations in frequency maximum rating and additional features, classified as compatible alternative from different manufacturer.

Parameter Comparison

Engineering Selection Recommendations

Amphenol RF 132204 is a parametric equivalent to the Amphenol RF 132150, maintaining identical electrical specifications, impedance characteristics, operating temperature range, and mating cycle ratings. Both components are ROHS3 Compliant with MSL 1 classification. Selection between these two Amphenol RF variants is determined by inventory availability and packaging preference (both supplied in Bag format).

Hirose Electric HRM-301(09) is a parametric equivalent offering identical core electrical and mechanical parameters with the following distinctions: body material is Stainless Steel rather than Brass, operating temperature range is -55°C ~ 125°C (narrower than the main part), mating cycles are rated at 1000 (higher than the main part), and insertion loss is specified at 0.1dB. This component is RoHS Compliant and supplied in Bulk packaging. Selection is appropriate for applications requiring extended mating cycle durability and stainless steel construction, provided the operating temperature range is compatible with system requirements.

Cinch Connectivity Solutions 142-1701-191 is a similar manufacturer alternative maintaining core SMA 50 Ohm solder-terminated specifications. Distinctions include: maximum frequency rating of 18 GHz (higher than the main part), connector type designation as Jack rather than Receptacle, inclusion of Extended Insulation feature, and voltage rating specification of 335 V. This component is ROHS3 Compliant and supplied in Tray packaging. Selection is appropriate for applications requiring higher frequency capability and extended insulation properties.

All substitute parts maintain Active product status and are compliant with REACH and EAR99 export classification requirements.

Frequently Asked Questions (FAQ)

Q: Can the Amphenol RF 132204 be used as a direct replacement for the Amphenol RF 132150?

A: Yes. The 132204 maintains identical electrical specifications, impedance, termination method, mounting configuration, operating temperature range, and mating cycle rating. Both components are ROHS3 Compliant with MSL 1 classification. Selection between these parts is determined by inventory availability and packaging format preference.

Q: What are the key differences between the Hirose HRM-301(09) and the Amphenol RF 132150?

A: The HRM-301(09) differs in three parameters: body material is Stainless Steel (versus Brass), operating temperature range is -55°C ~ 125°C (versus -65°C ~ 165°C), and mating cycles are rated at 1000 (versus 500). The HRM-301(09) also specifies insertion loss at 0.1dB. All other electrical and mechanical parameters are identical. Selection depends on application requirements for temperature extremes and mechanical durability.

Q: Is the Cinch 142-1701-191 compatible with the Amphenol RF 132150?

A: The Cinch 142-1701-191 maintains core SMA 50 Ohm solder-terminated specifications and is mechanically compatible. Distinctions include maximum frequency rating of 18 GHz (higher capability), connector type designation as Jack, Extended Insulation feature, and voltage rating of 335 V. Selection is appropriate for applications requiring higher frequency performance and extended insulation properties.

Q: What packaging formats are available for these substitute parts?

A: Amphenol RF 132150 and 132204 are supplied in Bag format. Cinch 142-1701-191 is supplied in Tray format. Hirose HRM-301(09) is supplied in Bulk format. Packaging selection may be determined by assembly process requirements and inventory management protocols.

Q: Are all substitute parts RoHS compliant?

A: Yes. Amphenol RF 132150, 132204, and Cinch 142-1701-191 are ROHS3 Compliant. Hirose HRM-301(09) is RoHS Compliant. All parts maintain MSL 1 (Unlimited) moisture sensitivity classification and are REACH Affected.

Q: What is the maximum operating temperature for each substitute part?

A: Amphenol RF 132150 and 132204 operate from -65°C to 165°C. Cinch 142-1701-191 operates from -65°C to 165°C. Hirose HRM-301(09) operates from -55°C to 125°C. Application requirements for temperature extremes determine appropriate part selection.

Q: How do mating cycle ratings differ among these parts?

A: Amphenol RF 132150 and 132204 are rated for 500 mating cycles. Cinch 142-1701-191 is rated for 500 mating cycles. Hirose HRM-301(09) is rated for 1000 mating cycles. Applications requiring extended mechanical durability benefit from the higher mating cycle rating of the HRM-301(09).
