13-14-P Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The 13-14-P is a ring terminal connector manufactured by 3M, designed for 10-12 AWG wire applications with a 1/4" stud connection. This insulated circular terminal features a crimp termination method and is constructed with copper (ETP) contact material and tin finish. The part is actively produced and maintains ROHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, supply chain considerations, or application-specific requirements.

Substiute Parts

13-14-P

3MIn Stock: 170213-14-P Datasheet

Current PartRFQ

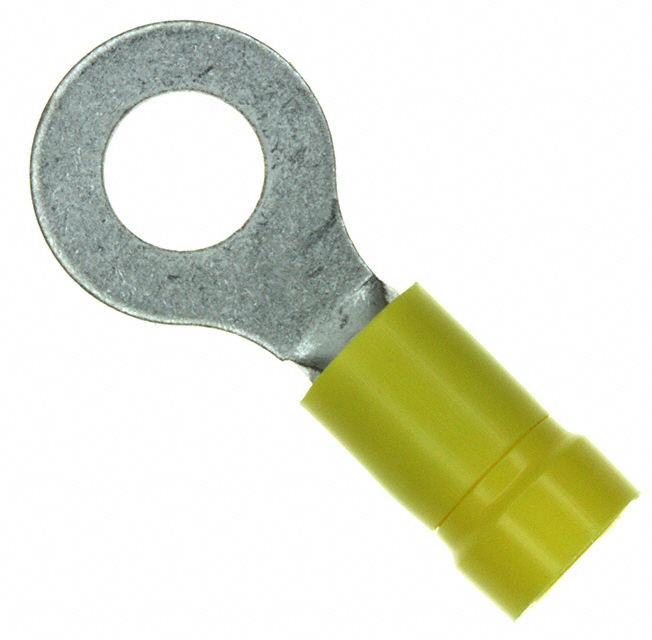

PV10-14R-L

Panduit CorpIn Stock: 822PV10-14R-L Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 13-14-P is determined by strict equivalence across the following critical parameters:

• Terminal Type: Must be Circular
• Stud/Tab Size: Must be 1/4 Stud
• Wire Gauge: Must be 10-12 AWG
• Termination Method: Must be Crimp
• Insulation: Must be Insulated
• Contact Material: Must be Copper-based
• Contact Finish: Must be Tin
• Mounting Type: Must be Free Hanging (In-Line)
• Regulatory Compliance: Must maintain ROHS3 compliance

The identified substitute part PV10-14R-L (Panduit Corp) meets all critical electrical and mechanical parameters. Dimensional variations in outer width (0.590" vs 0.520") and overall length (1.290" vs 1.230") remain within acceptable tolerances for this connector category and do not affect functional compatibility. Insulation diameter variation (0.250" vs 0.225") reflects manufacturing tolerance ranges for the 10-12 AWG wire gauge specification.

Parameter Comparison

Engineering Selection Recommendations

Both the 13-14-P and PV10-14R-L are active production parts with ROHS3 compliance and equivalent electrical performance for 10-12 AWG crimp ring terminal applications with 1/4" stud connections. Selection between these parts should be based on availability, lead time, and procurement requirements. The 13-14-P maintains higher current inventory (1663 pcs) compared to PV10-14R-L (735 pcs). Both parts satisfy identical regulatory requirements (ROHS3, EAR99 ECCN classification, 8536.90.4000 HTSUS code). The seam construction difference (butted seam vs. brazed seam) does not affect functional compatibility for standard applications within the specified wire gauge range.

Frequently Asked Questions (FAQ)

Q: Can PV10-14R-L be used as a direct replacement for 13-14-P?

A: Yes. Both parts meet identical electrical and mechanical specifications for 10-12 AWG wire gauge, 1/4" stud connection, crimp termination, and insulated circular terminal configuration. Dimensional tolerances remain within acceptable ranges for this connector category.

Q: What is the significance of the seam construction difference (butted vs. brazed)?

A: Seam construction method does not affect electrical performance or mechanical compatibility for ring terminal connectors in standard applications. Both construction methods provide adequate structural integrity for the specified wire gauge and stud size.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts are ROHS3 compliant, carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, and are actively produced. Moisture sensitivity levels differ only in documentation classification and do not affect field performance.

Q: What dimensional tolerances should be considered when substituting?

A: The outer width variation (0.590" to 0.520") and overall length variation (1.290" to 1.230") are within standard manufacturing tolerances for this connector type. Insulation diameter variation (0.250" to 0.225") reflects normal tolerance ranges for 10-12 AWG wire gauge specifications and does not compromise fit or function.

Q: Which part should be selected for new designs?

A: Either part is suitable for new designs. Selection should be based on supplier availability, lead time, and inventory status. Both parts carry equivalent active production status and regulatory compliance.
