TE Connectivity AMP Connectors 130529 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 130529 is a spade terminal connector designed for crimp termination of 13-17 AWG wire gauges. This component belongs to the Solistrand series and features a non-insulated, tin-plated copper construction suitable for free-hanging in-line mounting applications. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure design compatibility in new procurement cycles.

Substiute Parts

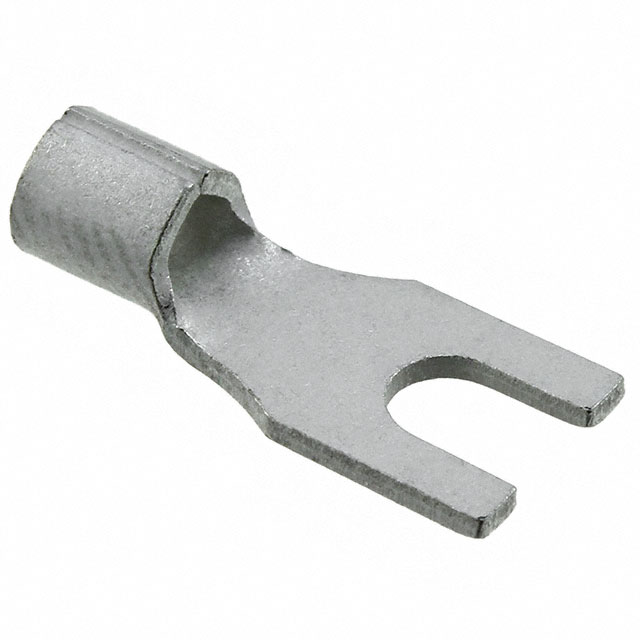

130529

TE Connectivity AMP ConnectorsIn Stock: 1054130529 Datasheet

Current PartRFQ

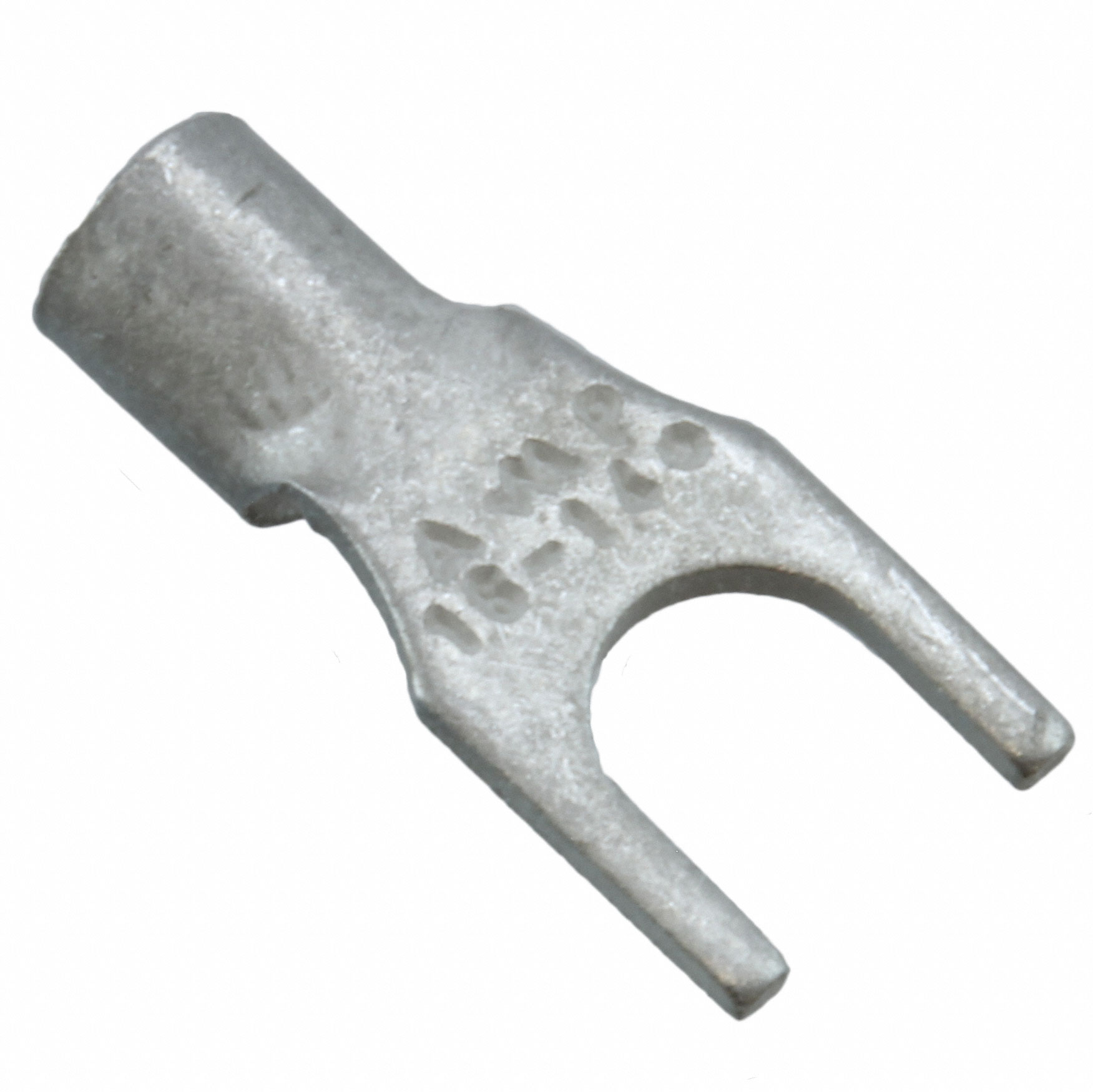

130534

TE Connectivity AMP ConnectorsIn Stock: 1200130534 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 130529 is based on strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Wire gauge range: 13-17 AWG
• Termination method: Crimp
• Contact material: Copper
• Contact finish: Tin
• Insulation type: Non-insulated
• Terminal type: Standard
• Mounting configuration: Free Hanging (In-Line)
• Series family: Solistrand
• Manufacturer: TE Connectivity AMP Connectors

The substitute part 130534 satisfies all mandatory parameters while providing additional dimensional specifications and active product status, making it suitable for direct replacement in applications requiring the 130529.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 130534 serves as the active equivalent for the obsolete 130529 based on the following engineering criteria:

Product Status Alignment: The 130534 maintains active product status within the Solistrand series, ensuring continued availability and manufacturing support. The 130529 is classified as obsolete and should be replaced in new designs and procurement activities.

Electrical and Mechanical Compatibility: Both parts share identical wire gauge specifications (13-17 AWG), termination method (crimp), contact material (copper), and contact finish (tin). The 130534 provides complete dimensional data including stud size (8 Stud), overall length (0.587"), and tongue opening (0.169"), enabling precise mechanical fit verification in existing assemblies.

Regulatory Compliance: The 130534 carries RoHS Compliant certification, meeting current environmental and hazardous substance restrictions. Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming export and tariff consistency.

Moisture and Environmental Performance: Both parts maintain MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage, handling, or deployment.

Frequently Asked Questions (FAQ)

Q: Can the 130534 directly replace the 130529 in existing assemblies?

A: The 130534 is electrically and mechanically compatible with the 130529 for applications requiring 13-17 AWG crimp spade terminals. Both parts feature identical wire gauge ranges, copper-tin contact construction, and non-insulated design. The 130534 provides complete dimensional specifications, enabling verification of fit within existing mounting configurations.

Q: What is the primary reason for substituting the 130529?

A: The 130529 is classified as obsolete. The 130534 is the active equivalent within the Solistrand series, ensuring continued supply chain access and manufacturing support for new procurement and design cycles.

Q: Are there packaging differences between these parts?

A: The 130529 packaging specification is not provided in available documentation. The 130534 is supplied in bulk packaging. Confirm packaging requirements with procurement specifications for your application.

Q: Does the 130534 meet current environmental standards?

A: The 130534 is RoHS Compliant, meeting current environmental and hazardous substance restrictions. The 130529 RoHS status is not specified in available documentation.

Q: What is the stud size of the 130534?

A: The 130534 features an 8 Stud configuration. The 130529 stud size is not specified in available documentation. Verify stud size compatibility with your application requirements before selection.

Q: Are both parts classified under the same export and tariff categories?

A: Yes. Both the 130529 and 130534 share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming export control and tariff consistency.
