Honeywell 12TS15-1 Toggle Switch DPDT Equivalent & Substitute Parts

Part Overview

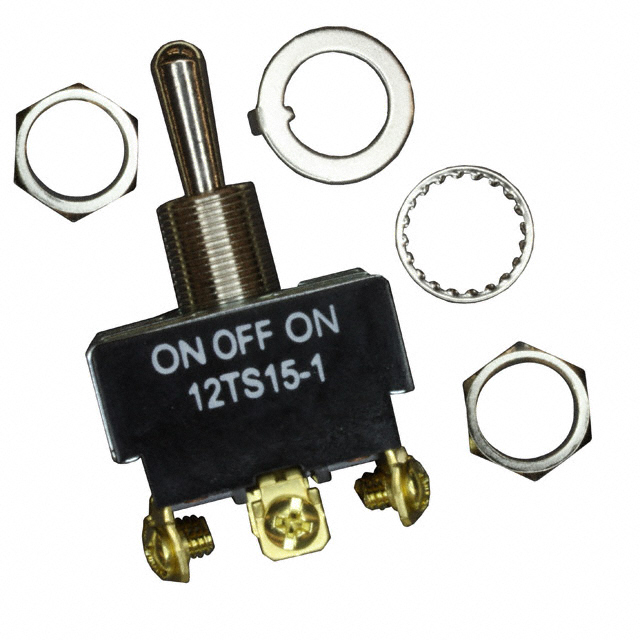

The Honeywell 12TS15-1 is a panel-mount toggle switch with DPDT (Double Pole Double Throw) circuit configuration, rated for 20A AC at 125V. This component is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing applications and new designs. The switch features a standard round actuator with screw terminal connections and operates across a temperature range of -54°C to 71°C. Substitute parts must maintain electrical compatibility while accommodating the obsolete status of the original component.

Key Parameters

Parameter	Value
Manufacturer Part Number	12TS15-1
Manufacturer	Honeywell Sensing and Productivity Solutions
Circuit Configuration	DPDT
Switch Function	On-Off-On
Current Rating (AC)	20A
Voltage Rating (AC)	125V
Mounting Type	Panel Mount
Actuator Type	Standard Round
Termination Style	Screw Terminal
Panel Cutout Diameter	12.40mm
Bushing Thread	15/32-32
Operating Temperature Range	-54°C to 71°C
Product Status	Obsolete
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution logic for the Honeywell 12TS15-1 is based on the following critical parameters:

Primary Compatibility Criteria:

Circuit configuration: DPDT
Switch function: On-Off-On
Mounting type: Panel Mount
Termination style: Screw Terminal
Bushing thread: 15/32-32

Electrical Rating Considerations: Substitute parts are grouped into two categories based on current and voltage ratings:

Category A - Full Electrical Equivalents (20A, 125V): Parts maintaining the original 20A AC and 125V AC ratings. These provide direct functional replacement without derating.

Category B - Reduced Current Rating (15A, 125V): Parts with 15A AC rating at 125V AC. These are suitable for applications where the load current does not exceed 15A, representing a conservative substitution approach.

Category C - Elevated Voltage Rating (20A, 250V): Parts rated for 250V AC at 20A AC. These provide enhanced voltage margin and are suitable for 125V applications through voltage derating principles.

All substitute parts maintain panel-mount configuration with compatible bushing threads and screw terminal connections. Actuator length variations (16.51mm original vs. 17.45mm substitutes) are within mechanical tolerance for standard panel cutout dimensions.

Parameter Comparison

Parameter	12TS15-1 (Honeywell)	2GM04-73/POLY (Carling)	2GM04-78 (Carling)	2GM54-73 BULK/POLY (Carling)	2GM54-73/POLY (Carling)	2GM54-73/SC BULK (Carling)	2GM54-78/HDW ASSM (Carling)	2GM54-NWH3 (Carling)	2GM64-73 (Carling)	2GM74-73 (Carling)	2GM74-78 (Carling)
Circuit Configuration	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT	DPDT
Switch Function	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On	On-Off-On
Current Rating (AC)	20A	20A	20A	15A	15A	15A	15A	15A	6A	17A	17A
Voltage Rating (AC)	125V	250V	250V	125V	125V	125V	125V	125V	125V	125V	125V
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
Actuator Type	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round	Standard Round
Actuator Length (mm)	16.51	17.45	17.45	17.45	17.45	17.45	17.45	17.45	17.45	17.45	17.45
Termination Style	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal	Screw Terminal
Panel Cutout Diameter (mm)	12.40	12.70	12.70	12.70	12.70	12.70	12.70	12.70	12.70	12.70	12.70
Bushing Thread	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32	15/32-32
Operating Temperature Range	-54°C to 71°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C	0°C to 85°C
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Electrical Life (Cycles)	Not specified	50,000	50,000	50,000	50,000	50,000	50,000	50,000	50,000	50,000	50,000

Engineering Selection Recommendations

For Direct Replacement (20A, 125V Requirement):

The Carling Technologies 2GM04-73/POLY and 2GM04-78 are the primary substitutes when full electrical equivalence is required. Both parts maintain 20A AC and 125V AC ratings with DPDT configuration and On-Off-On switching function. These parts are active products with ROHS3 compliance and 50,000-cycle electrical life specification. The 2GM04-78 is available in bulk packaging, while 2GM04-73/POLY offers alternative packaging. Panel cutout diameter increases from 12.40mm to 12.70mm, requiring panel modification or use of adapter bushings.

For Current-Derating Applications (15A Maximum Load):

When application load current does not exceed 15A AC, the Carling 2GM54 series provides suitable alternatives: 2GM54-73 BULK/POLY, 2GM54-73/POLY, 2GM54-73/SC BULK, 2GM54-78/HDW ASSM, and 2GM54-NWH3. All maintain 125V AC rating with DPDT configuration and 50,000-cycle life. These parts are active products with ROHS3 compliance. Selection among variants depends on packaging requirements and hardware assembly specifications.

For Reduced Current Applications (6A Maximum Load):

The Carling 2GM64-73 is suitable for applications with maximum load current of 6A AC at 125V. This part maintains DPDT configuration and panel-mount design with 50,000-cycle electrical life and ROHS3 compliance.

For Intermediate Current Applications (17A Maximum Load):

The Carling 2GM74 series (2GM74-73 and 2GM74-78) accommodates 17A AC at 125V, providing intermediate current rating between the 15A and 20A options. Both variants maintain DPDT configuration, panel-mount design, and 50,000-cycle electrical life with ROHS3 compliance.

Temperature Range Consideration:

All Carling substitute parts operate within 0°C to 85°C range, which is narrower than the original Honeywell part (-54°C to 71°C). Applications requiring operation below 0°C or above 71°C require verification of thermal performance or alternative component selection.

Compliance Status:

All substitute parts maintain RoHS compliance (ROHS3 standard) and are classified as active products, ensuring ongoing availability and supply chain stability compared to the obsolete Honeywell 12TS15-1.

Frequently Asked Questions (FAQ)

Q1: Can the Carling 2GM04-73/POLY directly replace the Honeywell 12TS15-1 without circuit modification?

A: The Carling 2GM04-73/POLY maintains identical DPDT circuit configuration, On-Off-On switching function, 20A AC current rating, and screw terminal connections. However, the panel cutout diameter increases from 12.40mm to 12.70mm, requiring panel modification or adapter bushing installation. Electrical circuit connections remain compatible without modification.

Q2: What is the impact of the 15A current rating in the Carling 2GM54 series compared to the original 20A rating?

A: The 2GM54 series is suitable only for applications where the maximum load current does not exceed 15A AC. If the application requires 20A AC switching capability, the 2GM04 series (20A rating) must be selected. Current derating ensures reliable switch operation within specified electrical limits.

Q3: Why do all Carling substitutes have a narrower operating temperature range (0°C to 85°C) compared to the Honeywell original (-54°C to 71°C)?

A: The temperature range difference reflects design specifications of different manufacturers. Applications requiring operation below 0°C must verify that the Carling substitute meets thermal performance requirements or select alternative components with extended low-temperature ratings.

Q4: Are there mechanical compatibility issues with the increased actuator length (17.45mm vs. 16.51mm)?

A: The 0.94mm increase in actuator length is within standard mechanical tolerance for panel-mount toggle switches. However, panel designs with tight actuator clearance should be verified. The panel cutout diameter increase (12.40mm to 12.70mm) is the primary mechanical consideration requiring panel modification.

Q5: What is the significance of the 50,000-cycle electrical life specification in Carling parts?

A: The Honeywell 12TS15-1 does not specify electrical life. The Carling substitutes provide 50,000-cycle specification, indicating tested reliability for switching operations. This specification supports design validation for applications with defined cycle count requirements.

Q6: Can the Carling 2GM04-78 (250V rating) be used in a 125V application?

A: Yes. The 2GM04-78 rated for 250V AC at 20A is suitable for 125V AC applications through voltage derating. The higher voltage rating provides additional safety margin. However, the 20A current rating remains the limiting factor for load selection.

Q7: What packaging options are available among the substitute parts?

A: Packaging varies by part number. The 2GM04-78 and 2GM54-73 BULK/POLY are specified for bulk packaging. The 2GM54-78/HDW ASSM includes hardware assembly. The 2GM04-73/POLY, 2GM54-73/POLY, 2GM54-73/SC BULK, and 2GM54-NWH3 offer alternative packaging configurations. Packaging selection depends on procurement and assembly requirements.

Q8: Are all substitute parts RoHS compliant?

A: Yes. All Carling substitute parts listed are ROHS3 compliant, meeting current environmental regulations. The original Honeywell 12TS15-1 is RoHS compliant under the earlier standard. ROHS3 compliance ensures compatibility with modern procurement and environmental requirements.

Q9: What is the inventory status of substitute parts?

A: All listed Carling substitute parts are active products with confirmed inventory availability ranging from 716 to 1129 pieces in stock, ensuring supply chain reliability compared to the obsolete Honeywell original.

Q10: Which substitute part should be selected for a new design application?

A: For new designs, select based on actual electrical requirements: (1) If 20A AC at 125V is required, use 2GM04-73/POLY or 2GM04-78; (2) If maximum load is 15A AC at 125V, use 2GM54 series variants; (3) If maximum load is 17A AC at 125V, use 2GM74 series; (4) If maximum load is 6A AC at 125V, use 2GM64-73. All selections should verify temperature range compatibility (0°C to 85°C) with application requirements.
