Equivalent & Substitute Parts for 12SM4-T2

Part Overview

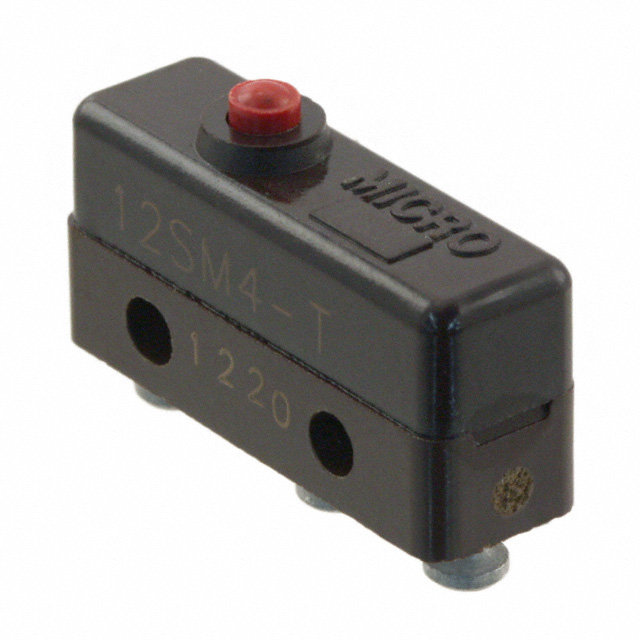

The 12SM4-T2 is a snap action SPDT switch manufactured by Honeywell Sensing and Productivity Solutions. This chassis mount switch features a round pin plunger actuator with solder turret termination, rated for 1A at 125V AC and 30V DC. The device is currently in active production status with full RoHS compliance and unlimited moisture sensitivity rating.

Substitute parts are necessary when the primary 12SM4-T2 becomes unavailable due to supply constraints, inventory depletion, or when alternative electrical specifications better suit specific application requirements while maintaining functional compatibility.

Substiute Parts

12SM4-T2

Honeywell Sensing and Productivity SolutionsIn Stock: 112212SM4-T2 Datasheet

Current PartRFQ

DB1C-A1AA

Hirose Electric Co LtdIn Stock: 919DB1C-A1AA Datasheet

SimilarRFQ

DC1C-A1AA

ZF ElectronicsIn Stock: 21897DC1C-A1AA Datasheet

SimilarRFQ

DC3C-A1AA

Hirose Electric Co LtdIn Stock: 1171DC3C-A1AA Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 12SM4-T2 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration must be SPDT
• Switch function must be On-Momentary
• Actuator type must be Round Pin Plunger
• Mounting type must be Chassis Mount
• Current rating must support minimum 1A at 125V AC
• Voltage rating must meet or exceed 125V AC and 30V DC
• Operating position must be 0.330" (8.4mm)
• Mechanical life must be 1,000,000 cycles or greater
• Operating temperature range must encompass -55°C to 125°C or be compatible with application requirements
• RoHS compliance status must be maintained

Secondary Considerations:

• Termination style variations (Solder Turret vs. Solder Lug) are acceptable if circuit board design accommodates the alternative
• MSL rating of 1 (Unlimited) is maintained across all listed substitutes
• ECCN and HTSUS classifications remain consistent

The substitute parts DB1C-A1AA, DC1C-A1AA, and DC3C-A1AA meet the primary electrical and mechanical compatibility criteria for the 12SM4-T2.

Parameter Comparison

Engineering Selection Recommendations

DC1C-A1AA (ZF Electronics) - Primary Active Substitute

The DC1C-A1AA is the recommended substitute for new designs and applications where the 12SM4-T2 is unavailable. This part maintains active production status, ensuring long-term supply reliability. It provides enhanced current capacity (5A AC versus 1A AC) and higher DC voltage rating (48V versus 30V), offering superior performance margins for applications operating near the 12SM4-T2 specifications. The DC1C-A1AA achieves ROHS3 compliance and maintains identical mechanical life rating and MSL classification. The termination style differs (Solder Lug versus Solder Turret), requiring circuit board design accommodation. Operating temperature range is -40°C to 120°C, which is acceptable for most applications but does not extend to the full -55°C lower limit of the 12SM4-T2.

DB1C-A1AA and DC3C-A1AA - Obsolete Status

Both DB1C-A1AA (Hirose Electric) and DC3C-A1AA (Hirose Electric) carry obsolete product status. These parts should not be selected for new designs or long-term production applications due to discontinued manufacturing status and uncertain future availability. Limited technical parameter data is provided for these parts, restricting detailed compatibility assessment.

Compliance and Regulatory Considerations

All substitute parts maintain EAR99 ECCN classification and 8536.50.7000 HTSUS code consistency with the 12SM4-T2. MSL rating of 1 (Unlimited) is preserved across all options, eliminating moisture sensitivity concerns in storage and handling.

Frequently Asked Questions (FAQ)

Q: Can DC1C-A1AA directly replace 12SM4-T2 in existing circuit boards?

A: DC1C-A1AA is electrically compatible with 12SM4-T2 for SPDT switching applications at 1A/125V AC. However, the termination style differs: DC1C-A1AA uses Solder Lug termination while 12SM4-T2 uses Solder Turret. Circuit board pad patterns must accommodate the alternative termination geometry. Mechanical mounting and actuator interface remain compatible due to identical 0.330" (8.4mm) operating position and Round Pin Plunger actuator type.

Q: What is the significance of the operating temperature range difference?

A: The 12SM4-T2 operates from -55°C to 125°C, while DC1C-A1AA operates from -40°C to 120°C. For applications requiring operation below -40°C or above 120°C, the 12SM4-T2 is the only suitable option among the listed substitutes. For applications within the -40°C to 120°C range, DC1C-A1AA is fully compatible.

Q: Why are DB1C-A1AA and DC3C-A1AA listed as substitutes if they are obsolete?

A: These parts are included in the substitute list based on the provided input data. However, obsolete status indicates discontinued manufacturing. These parts should only be considered for legacy system maintenance or repair applications where existing inventory exists. New designs must not incorporate obsolete parts.

Q: Does the higher current rating of DC1C-A1AA (5A AC) affect compatibility?

A: Higher current rating does not compromise compatibility. The DC1C-A1AA can safely handle 1A AC applications designed for the 12SM4-T2. The 5A AC rating provides additional performance margin and does not introduce functional incompatibility. DC current rating for DC1C-A1AA is 1A, matching the 12SM4-T2 specification.

Q: Are there any supply chain advantages to selecting DC1C-A1AA?

A: Yes. DC1C-A1AA maintains active production status with significantly higher current inventory (21,871 Pcs) compared to 12SM4-T2 (1,097 Pcs). This inventory level indicates better long-term availability and shorter lead times for procurement.

Q: What is the impact of the different pretravel and overtravel specifications?

A: DC1C-A1AA has pretravel of 0.040" (1.0mm) versus 12SM4-T2 pretravel of 0.020" (0.5mm), and overtravel of 0.025" (0.6mm) versus 0.003" (0.076mm). These differences affect actuation response characteristics. Applications requiring precise actuation response should evaluate whether the DC1C-A1AA pretravel and overtravel specifications are acceptable for the intended function.

Q: Is RoHS compliance maintained across all substitutes?

A: Yes. The 12SM4-T2 is RoHS Compliant, and DC1C-A1AA is ROHS3 Compliant. Both certifications satisfy RoHS requirements. DB1C-A1AA and DC3C-A1AA RoHS status is not specified in the provided data.
