Equivalent & Substitute Parts for Switchcraft 12BL5M

Part Overview

The Switchcraft 12BL5M is a 5-position circular connector plug with male pins designed for solder termination. This connector features a DIN 240-degree shell size, push-pull fastening, and is rated for 3A at 34VDC. The 12BL5M is classified as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations where this connector type is specified.

Substiute Parts

12BL5M

Switchcraft Inc.In Stock: 73112BL5M Datasheet

Current PartRFQ

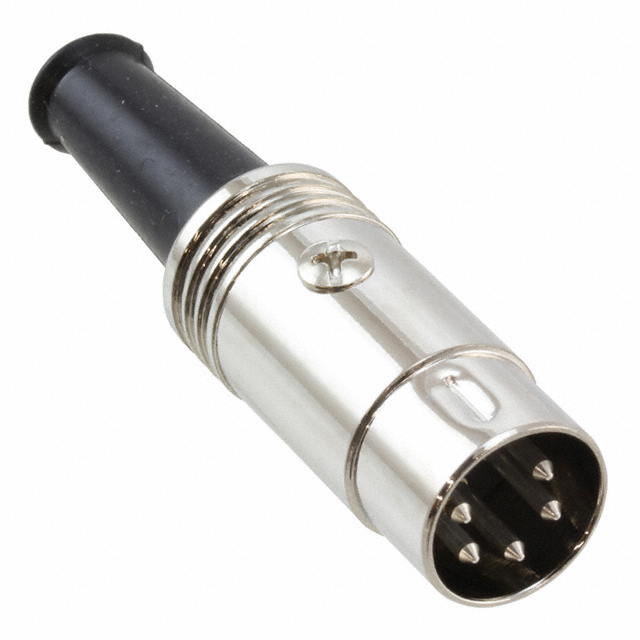

12BL5MX

Switchcraft Inc.In Stock: 132912BL5MX Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 12BL5M is determined by strict equivalence across the following critical parameters:

• Connector type and pin configuration (Plug, Male Pins, 5-position)
• Shell size and insert specification (DIN 240-degree)
• Electrical ratings (3A current, 34VDC voltage)
• Termination method (Solder)
• Fastening mechanism (Push-Pull)
• Physical construction (Zinc die cast shell, nickel finish, tin contact finish)
• Mechanical features (Backshell, cable clamp, strain relief)

The 12BL5MX meets all these criteria and is therefore a direct functional equivalent. Substitution is valid where the 12BL5M is specified, provided system design does not impose additional constraints related to product status or regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The 12BL5MX is the direct substitute for the obsolete 12BL5M. Both components are electrically and mechanically equivalent across all specified parameters. The primary distinction is product status and regulatory compliance:

The 12BL5M is obsolete and RoHS non-compliant. The 12BL5MX is an active product that meets ROHS3 compliance requirements. For new designs or systems requiring RoHS compliance, the 12BL5MX is the appropriate selection. For legacy system maintenance where RoHS compliance is not mandated, the 12BL5MX remains functionally interchangeable with the original 12BL5M specification.

Both components share identical electrical ratings, mechanical construction, and connector interface specifications, ensuring direct pin-for-pin and form-factor compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 12BL5MX be used as a direct replacement for the 12BL5M?

A: Yes. The 12BL5MX is electrically and mechanically equivalent to the 12BL5M. All critical parameters including connector type, pin count, shell size, electrical ratings, termination method, and mechanical features are identical.

Q: What is the primary difference between these two parts?

A: The 12BL5M is obsolete and RoHS non-compliant, while the 12BL5MX is an active product with ROHS3 compliance. Functionally, they are equivalent.

Q: Are there any compatibility concerns when substituting the 12BL5MX for the 12BL5M?

A: No compatibility concerns exist for electrical or mechanical interface. Both parts use identical DIN 240-degree shell sizes, 5-position configurations, solder termination, and push-pull fastening. Mating connectors and cable assemblies designed for the 12BL5M will function identically with the 12BL5MX.

Q: Does the packaging difference affect substitution?

A: Packaging format (bulk versus other configurations) does not affect electrical or mechanical performance. Packaging selection is determined by procurement and inventory requirements, not by functional compatibility.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution is valid when the following parameters match: connector type (plug, male pins), position count (5), shell size (DIN 240-degree), electrical ratings (3A, 34VDC), termination method (solder), fastening type (push-pull), and mechanical features (backshell, cable clamp, strain relief).
