TE Connectivity 1-284513-7 Terminal Block Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-284513-7 is a 17-position terminal block header with male pins, shrouded on four sides, featuring 0.150" (3.81mm) pitch and right-angle through-hole mounting. This component is classified as obsolete, making identification of equivalent substitute parts necessary for ongoing system maintenance and new design implementations where legacy compatibility is required.

Substiute Parts

1-284513-7

TE Connectivity AMP ConnectorsIn Stock: 11751-284513-7 Datasheet

Current PartRFQ

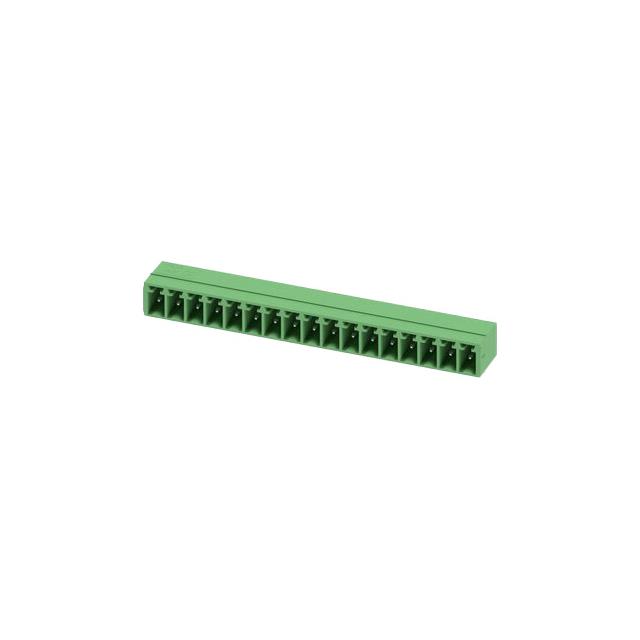

1841307

Phoenix ContactIn Stock: 6911841307 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-284513-7 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of positions: 17
• Pitch: 0.150" (3.81mm)
• Header orientation: 90°, Right Angle
• Type: Header, Male Pins, Shrouded (4 Side)
• Mounting type: Through Hole
• Termination style: Solder
• Contact tail length: 0.134" (3.40mm)
• Material flammability rating: UL94 V-0

Electrical Performance Parameters:

• Voltage - UL: 300 V (minimum requirement)
• Current - UL: 8 A or greater (substitute must meet or exceed application requirements)

The Phoenix Contact 1841307 satisfies all mandatory matching parameters and meets the electrical performance requirements for direct substitution in applications designed for the TE Connectivity 1-284513-7.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1841307 is a direct functional equivalent to the TE Connectivity 1-284513-7 for applications requiring a 17-position, 3.81mm pitch terminal block header with right-angle through-hole mounting and solder termination.

Selection Basis:

The substitute part maintains electrical performance at 300 V UL voltage rating. The current rating of the Phoenix Contact 1841307 is specified at 8 A (UL), which is lower than the original part's 11 A rating. Component selection should confirm that application current requirements do not exceed 8 A per contact.

The Phoenix Contact 1841307 is an active product with RoHS compliance, providing supply chain continuity and regulatory alignment for new designs. The TE Connectivity 1-284513-7, classified as obsolete, presents sourcing constraints for ongoing production and maintenance applications.

Mechanical compatibility is confirmed through matching pitch, position count, shrouding configuration, and contact tail length. The insulation height difference of 0.002" (0.05mm) is negligible for PCB layout and mechanical assembly purposes.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1841307 be used as a direct replacement for the TE Connectivity 1-284513-7 in existing designs?

A: Yes, the Phoenix Contact 1841307 is mechanically and electrically compatible for direct substitution in applications where the current requirement does not exceed 8 A per contact. The pitch, position count, mounting type, and shrouding configuration are identical. Verify that your application current does not exceed the substitute part's 8 A rating.

Q: What is the primary difference between these two parts?

A: The primary difference is the current rating. The TE Connectivity 1-284513-7 is rated at 11 A (UL), while the Phoenix Contact 1841307 is rated at 8 A (UL). Both parts maintain the same 300 V voltage rating and all mechanical dimensions. Additionally, the TE Connectivity part is obsolete, while the Phoenix Contact part is active and RoHS compliant.

Q: Are the insulation heights compatible for PCB mounting?

A: Yes. The TE Connectivity 1-284513-7 has an insulation height of 0.287" (7.30mm), and the Phoenix Contact 1841307 has an insulation height of 0.285" (7.25mm). The difference of 0.002" (0.05mm) is negligible for standard PCB layout and does not affect mechanical assembly or electrical performance.

Q: What certifications apply to both parts?

A: Both parts carry UL94 V-0 material flammability rating and are rated for 300 V UL voltage. The Phoenix Contact 1841307 is RoHS compliant, while the TE Connectivity 1-284513-7 is not applicable for RoHS classification. Both parts have Moisture Sensitivity Level 1 (Unlimited).

Q: Can I use the Phoenix Contact 1841307 in high-current applications originally designed for the TE Connectivity 1-284513-7?

A: Only if the application current per contact does not exceed 8 A. If your original design requires current above 8 A per contact, the Phoenix Contact 1841307 is not suitable. Consult the application schematic to confirm maximum current per contact before substitution.

Q: Are there any packaging differences between these parts?

A: The TE Connectivity 1-284513-7 packaging is not specified in the available data. The Phoenix Contact 1841307 is supplied in bulk packaging. Confirm packaging requirements for your procurement and assembly processes.
