1-284512-4 Terminal Block Header Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-284512-4 is a 14-position terminal block header with male pins, shrouded on four sides, featuring 0.138" (3.50mm) pitch and 90° right-angle orientation for through-hole mounting. This component is classified as Active product status and is designed for solder termination applications requiring secure electrical connections in industrial and commercial equipment.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in applications where component availability, lead time, or inventory considerations necessitate alternative sourcing.

Substiute Parts

1-284512-4

TE Connectivity AMP ConnectorsIn Stock: 9691-284512-4 Datasheet

Current PartRFQ

1844333

Phoenix ContactIn Stock: 12041844333 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-284512-4 is determined by strict alignment of the following critical parameters:

Functional Equivalence Requirements:

• 14-position configuration
• Male pin header type with 4-side shrouding
• 0.138" (3.50mm) pitch spacing
• 90° right-angle orientation
• Solder termination capability
• Through-hole mounting compatibility

Electrical Compatibility Requirements:

• Voltage rating of 300 V (UL standard)
• UL94 V-0 flammability classification
• Contact tail length of 0.134" (3.40mm)

Regulatory Compliance Requirements:

• ROHS3 compliance status
• EAR99 export classification
• HTSUS code 8536.69.4040

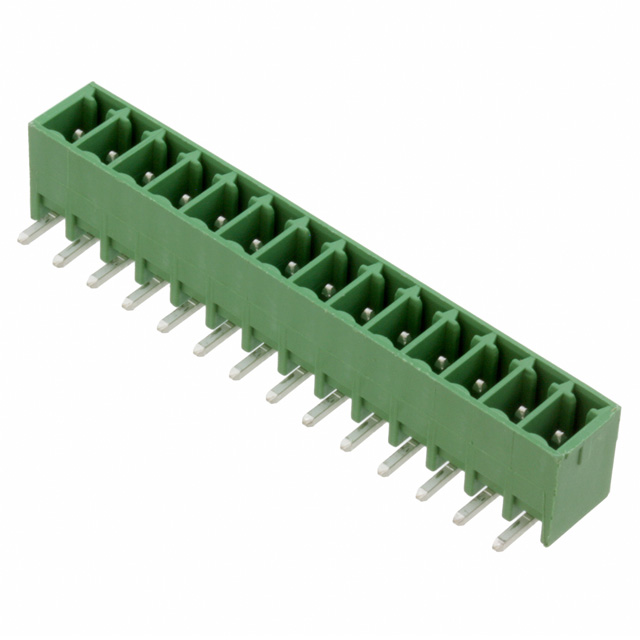

The substitute part 1844333 (Phoenix Contact COMBICON MC series) meets all functional, electrical, and mechanical parameters required for direct substitution in applications designed for the 1-284512-4.

Parameter Comparison

Engineering Selection Recommendations

Both the 1-284512-4 and 1844333 maintain Active product status, ensuring continued manufacturer support and availability. Selection between these components is based on the following engineering considerations:

Primary Selection Criteria:

The 1-284512-4 (TE Connectivity) and 1844333 (Phoenix Contact) are electrically and mechanically equivalent for applications requiring 14-position terminal block headers with 3.5mm pitch, 90° right-angle configuration, and solder termination.

Compliance Alignment:

Both components satisfy ROHS3 compliance requirements and maintain UL94 V-0 flammability ratings, ensuring regulatory compliance in industrial applications. Both components are classified under ECCN EAR99 and HTSUS code 8536.69.4040.

Electrical Performance:

The 1-284512-4 is rated for 11 A (UL standard) at 300 V. The 1844333 provides 12 A (IEC standard) and 8 A (UL standard) at 300 V (UL) and 250 V (IEC). For applications requiring UL certification at 300 V, both components are suitable. Applications requiring IEC compliance at higher current ratings (12 A) should reference the 1844333 specifications.

Mechanical Compatibility:

Insulation height variance between components (0.287" versus 0.285") is within acceptable manufacturing tolerance and does not affect PCB layout or mechanical fit in standard through-hole applications.

Inventory and Lead Time:

The 1-284512-4 maintains 955 pieces in stock. The 1844333 maintains 1157 pieces in stock. Selection may be influenced by immediate availability requirements.

Frequently Asked Questions (FAQ)

Q: Can the 1844333 (Phoenix Contact) directly replace the 1-284512-4 (TE Connectivity) in existing designs?

A: Yes. Both components share identical pitch (3.5mm), position count (14), orientation (90° right-angle), termination style (solder), and mounting type (through-hole). Electrical ratings (300 V UL) and flammability classifications (UL94 V-0) are equivalent. The 0.002" (0.05mm) difference in insulation height is within standard manufacturing tolerance and does not affect PCB layout compatibility.

Q: What are the key electrical differences between these components?

A: The 1-284512-4 is rated for 11 A at 300 V (UL standard). The 1844333 is rated for 12 A at 250 V (IEC standard) and 8 A at 300 V (UL standard). For applications requiring UL certification at 300 V, both components are suitable. Applications requiring higher current capacity should reference IEC ratings on the 1844333.

Q: Are both components RoHS compliant?

A: Yes. Both the 1-284512-4 and 1844333 are ROHS3 compliant and maintain Moisture Sensitivity Level 1 (Unlimited), indicating no special storage or handling requirements.

Q: What is the difference in housing material between these components?

A: The 1-284512-4 uses Polyamide (PA66), Nylon 6/6 housing material. The 1844333 uses Polybutylene Terephthalate (PBT) housing material. Both materials meet UL94 V-0 flammability requirements and are suitable for industrial terminal block applications.

Q: Can these components be used interchangeably in high-temperature applications?

A: The 1-284512-4 specifies an operating temperature range of -40°C to 110°C. Operating temperature specifications for the 1844333 are not provided in the available data. For applications requiring confirmed high-temperature performance, reference the 1-284512-4 specifications or contact the manufacturer for 1844333 thermal ratings.

Q: Are export restrictions different between these components?

A: No. Both components are classified under ECCN EAR99 and HTSUS code 8536.69.4040, indicating identical export classification and tariff treatment.

Q: What is the contact material composition for each component?

A: The 1-284512-4 uses Phosphor Bronze contact material. Contact material specifications for the 1844333 are not provided in the available data. Both components feature tin contact mating finish.
