TE Connectivity 1-281839-2 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-281839-2 is a 24-position rectangular connector receptacle housing designed for 0.100" (2.54mm) pitch applications. This component functions as a female socket housing for crimp-terminated contacts in dual-row configurations with detent lock fastening. The part is Active in product status with 828 units currently in stock. Equivalent substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when design flexibility permits component selection from the AMPMODU Mod IV series.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	24
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Detent Lock
Color	Black
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 1-281839-2 are identified based on strict parametric equivalence across all critical mechanical and electrical specifications. The following parameters must match identically for substitution eligibility:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 24
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Fastening Type: Detent Lock
Color: Black
Moisture Sensitivity Level: 1 (Unlimited)

Both substitute parts (1-87631-9 and 2-87631-0) satisfy all mandatory parametric requirements. These parts belong to the AMPMODU Mod IV series and maintain full compatibility with the original HE13/HE14 series housing in terms of mechanical interface and functional performance.

Parameter Comparison

Parameter	1-281839-2 (HE13/HE14)	1-87631-9 (AMPMODU Mod IV)	2-87631-0 (AMPMODU Mod IV)
Connector Type	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	24	24	24
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Fastening Type	Detent Lock	Detent Lock	Detent Lock
Color	Black	Black	Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Thermoplastic	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-55°C ~ 125°C	-65°C ~ 105°C	-65°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active
RoHS Status	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
ECCN	EAR99	EAR99	EAR99
HTSUS	8538.90.6000	8538.90.6000	8538.90.6000
Inventory Status	828 Pcs New Original In Stock	1393 Pcs New Original In Stock	2320 Pcs New Original In Stock

Engineering Selection Recommendations

Both substitute parts 1-87631-9 and 2-87631-0 are Active products with full RoHS compliance and EAR99 export classification, matching the regulatory status of the primary part 1-281839-2. All three parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture precautions are required during storage or handling.

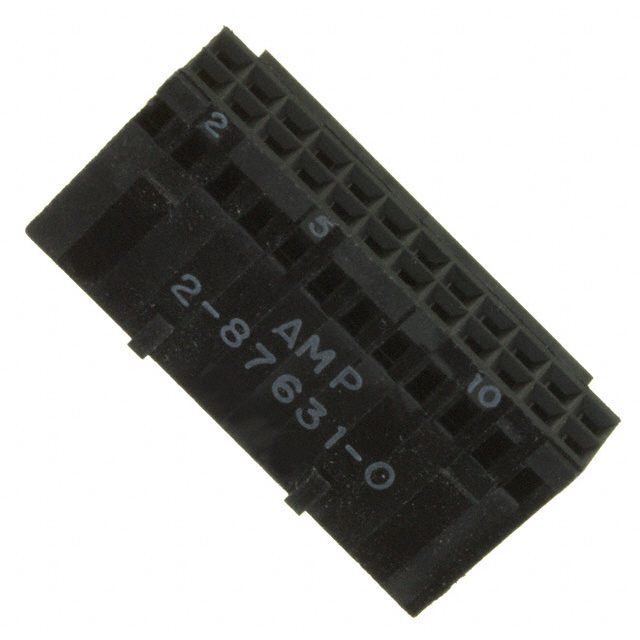

The primary distinction between substitute options lies in insulation material composition and operating temperature range. Part 1-87631-9 utilizes Thermoplastic insulation with an operating range of -65°C to 105°C. Part 2-87631-0 employs Polyamide (PA) Nylon Glass Filled insulation, also rated -65°C to 105°C. The original part 1-281839-2 specifies Polybutylene Terephthalate (PBT) Glass Filled insulation with a wider operating range of -55°C to 125°C.

Selection between the primary part and substitutes should be based on application-specific temperature requirements. Applications requiring operation above 105°C necessitate the original 1-281839-2. For applications within the -65°C to 105°C range, either substitute part provides equivalent functional performance. Part 2-87631-0 offers the highest current inventory availability at 2320 units.

Frequently Asked Questions (FAQ)

Q: Can 1-87631-9 and 2-87631-0 be used interchangeably with 1-281839-2?

A: Both substitute parts satisfy all critical parametric requirements for mechanical and electrical compatibility. Selection depends on application temperature range. The original part 1-281839-2 supports operation to 125°C, while both substitutes are rated to 105°C maximum. Within the -65°C to 105°C range, substitutes provide equivalent performance.

Q: What is the significance of the different insulation materials?

A: The original part uses Polybutylene Terephthalate (PBT) Glass Filled insulation. Substitute 1-87631-9 uses Thermoplastic material, and substitute 2-87631-0 uses Polyamide (PA) Nylon Glass Filled material. These material differences result in the operating temperature range variations noted. Material selection should align with application thermal requirements.

Q: Are there any compliance or regulatory differences between these parts?

A: All three parts carry identical export classification (EAR99) and tariff codes (8538.90.6000). The original part is ROHS3 Compliant, while both substitutes are RoHS Compliant. All parts carry Moisture Sensitivity Level 1 (Unlimited), requiring no special moisture handling procedures.

Q: Do these parts include contacts?

A: No. All three part numbers specify "Contacts Not Included" in their product documentation. Contacts must be sourced separately and crimped into the housing according to TE Connectivity specifications.

Q: What is the difference between the HE13/HE14 series and AMPMODU Mod IV series?

A: These represent different product series from TE Connectivity. The original part belongs to the HE13/HE14 series, while both substitutes belong to the AMPMODU Mod IV series. Despite series differences, all parts maintain identical mechanical pitch, row configuration, and mounting characteristics, enabling direct substitution within the specified temperature operating range.

Q: Which substitute part should be selected for maximum inventory availability?

A: Part 2-87631-0 provides the highest current stock level at 2320 units, compared to 1393 units for 1-87631-9 and 828 units for the original 1-281839-2.
