TE Connectivity Deutsch Connectors 1-2600034-0 Equivalent & Substitute Parts

Part Overview

The TE Connectivity Deutsch Connectors 1-2600034-0 is a 6-position rectangular connector receptacle housing from the DT-XT series. This component is designed for free-hanging, in-line applications with crimp contact termination and latch holder fastening. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing production requirements.

Substiute Parts

1-2600034-0

TE Connectivity Deutsch ConnectorsIn Stock: 7861-2600034-0 Datasheet

Current PartRFQ

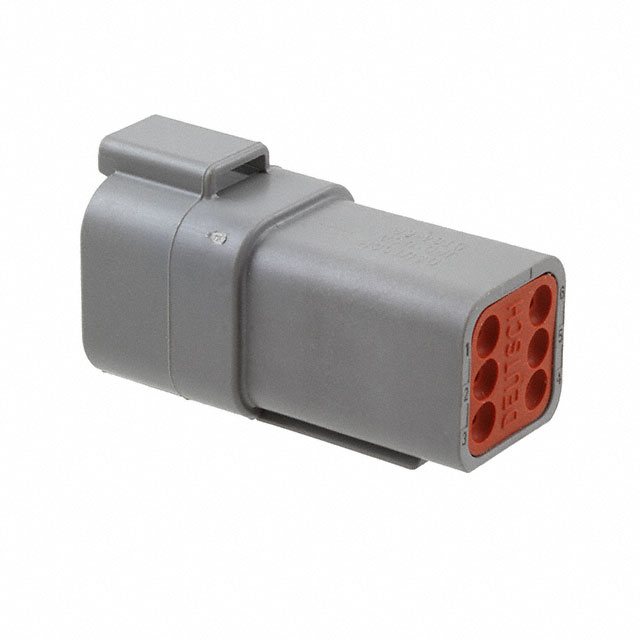

DT04-6P

TE Connectivity Deutsch ConnectorsIn Stock: 2119DT04-6P Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-2600034-0 is determined by alignment of the following critical parameters:

Electrical and Mechanical Compatibility Criteria:

• Connector type: Receptacle housing
• Contact type: Male pin accommodation
• Number of positions: 6
• Number of rows: 3
• Mounting configuration: Free hanging, in-line
• Contact termination method: Crimp
• Fastening mechanism: Latch holder
• Operating temperature range: -55°C ~ 125°C
• Insulation material composition: Polyamide (PA), nylon, glass-filled

Regulatory and Compliance Alignment:

• RoHS3 compliance
• REACH unaffected status
• ECCN classification: EAR99

The substitute part DT04-6P maintains all critical electrical and mechanical parameters required for functional equivalence, with the exception of pitch specification, which is not provided in the substitute part documentation. The substitute part operates within the identical temperature range and maintains equivalent insulation material properties.

Parameter Comparison

Engineering Selection Recommendations

The DT04-6P is the manufacturer-recommended substitute for the obsolete 1-2600034-0. Selection of this substitute part is supported by the following engineering factors:

Product Status Alignment: The DT04-6P maintains active product status, ensuring continued availability and manufacturer support. The 1-2600034-0 is classified as obsolete and no longer actively produced.

Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying current regulatory requirements for electronic component procurement. Both parts carry EAR99 ECCN classification.

Functional Equivalence: The substitute part maintains identical electrical and mechanical specifications across all critical parameters: 6-position receptacle housing, 3-row configuration, male pin contact type, crimp termination, latch holder fastening, and free-hanging in-line mounting. Operating temperature range remains -55°C ~ 125°C for both parts.

Material and Environmental Performance: Insulation material composition is identical (polyamide, nylon, glass-filled), ensuring equivalent environmental resistance and mechanical durability. Moisture sensitivity level classification is not applicable for the substitute part, indicating improved or equivalent moisture handling characteristics.

Supply Chain Continuity: The substitute part maintains significantly higher inventory availability (2100 pieces in stock versus 721 pieces for the obsolete part), supporting production continuity and reducing procurement lead times.

Frequently Asked Questions (FAQ)

Q: What are the primary reasons for substituting the 1-2600034-0?

A: The 1-2600034-0 is classified as obsolete. The DT04-6P is the active equivalent that maintains all critical electrical and mechanical specifications required for functional replacement.

Q: Are the electrical specifications identical between the two parts?

A: Yes. Both parts are 6-position receptacle housings with male pin contacts, 3-row configuration, crimp termination, and latch holder fastening. Both operate across the identical temperature range of -55°C ~ 125°C.

Q: What is the difference in pitch specification between the parts?

A: The main part 1-2600034-0 specifies a pitch of 0.177" (4.50mm). The substitute part DT04-6P does not provide pitch specification in the available documentation. Pitch verification against application requirements is necessary prior to final component selection.

Q: Do both parts meet current regulatory requirements?

A: Yes. Both parts are ROHS3 compliant and REACH unaffected, meeting current regulatory standards for electronic component procurement.

Q: What is the difference in color between the parts?

A: The main part 1-2600034-0 is black. The substitute part DT04-6P is gray. Color difference does not affect electrical or mechanical function.

Q: Are the packaging formats different?

A: The main part 1-2600034-0 packaging is not specified. The substitute part DT04-6P is supplied in bulk packaging.

Q: What is the difference in insulation material?

A: Both parts use identical insulation material: polyamide (PA), nylon, glass-filled composition.

Q: Does the substitute part include contacts?

A: No. The substitute part DT04-6P, like the main part 1-2600034-0, is supplied as a housing only. Contacts are not included and must be procured separately.

Q: What additional features does the substitute part provide?

A: The substitute part DT04-6P includes IP68 and IP6K9K ratings, providing enhanced environmental sealing and protection compared to the main part specification.

Q: Is the substitute part from the same manufacturer?

A: Yes. Both parts are manufactured by TE Connectivity Deutsch Connectors, ensuring design consistency and compatibility with existing connector ecosystems.
