SCHURTER 1241.6634.1122000 Equivalent & Substitute Parts

Part Overview

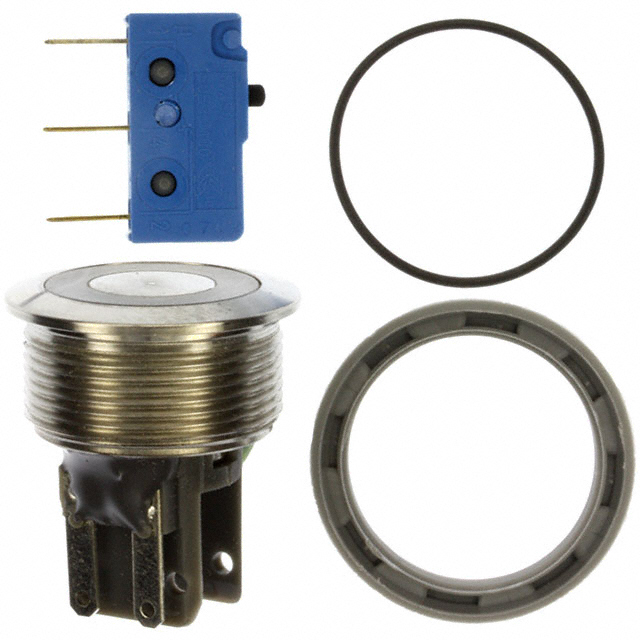

The SCHURTER 1241.6634.1122000 is an anti-vandal illuminated pushbutton switch with SPDT circuit configuration, rated for 5A at 125V AC. This panel-mount component features a round flush button actuator with green LED illumination at 24 VDC nominal voltage and quick-connect 0.110" (2.8mm) termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations where this switch type is required.

Substiute Parts

1241.6634.1122000

SCHURTER Inc.In Stock: 10461241.6634.1122000 Datasheet

Current PartRFQ

3-145-553

SCHURTER Inc.In Stock: 9093-145-553 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SCHURTER 1241.6634.1122000 is determined by strict equivalence across the following critical parameters:

Circuit configuration must remain SPDT to maintain electrical functionality in applications requiring changeover switching. Current and voltage ratings (5A at 125V AC) are non-negotiable for safe operation within specified load conditions. The switch function (On-Momentary) defines the operational behavior required by the application. Mounting type (panel mount, front) and panel cutout dimensions (22.10mm circular) ensure mechanical compatibility with existing enclosure designs. Anti-vandal and illuminated characteristics are functional requirements that must be preserved. Termination style (quick connect 0.110") must match to ensure proper connection without adapter requirements. Operating temperature range, mechanical life, and electrical life specifications establish the performance envelope for the application environment.

The SCHURTER 3-145-553 qualifies as a manufacturer-recommended substitute based on matching SPDT circuit configuration, 5A at 125V AC electrical ratings, and pushbutton switch functionality. This part is currently in active production status, providing supply continuity for the obsolete 1241.6634.1122000.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 3-145-553 is designated as the manufacturer-recommended substitute for the obsolete 1241.6634.1122000. Both components are manufactured by SCHURTER Inc. and share identical electrical specifications (SPDT, 5A, 125V AC). The substitute part maintains active production status, ensuring supply availability and continuity for applications currently using or requiring the original part.

Selection of the 3-145-553 as a replacement is supported by manufacturer recommendation and matching core electrical parameters. The transition from obsolete to active production status provides long-term supply security for maintenance and new implementations.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 3-145-553 directly replace the 1241.6634.1122000 in existing applications?

A: The 3-145-553 is the manufacturer-recommended substitute and shares identical SPDT circuit configuration and electrical ratings (5A at 125V AC). Verification of mechanical compatibility with existing panel cutout dimensions and termination requirements is necessary before installation.

Q: What is the primary reason for seeking a substitute for the 1241.6634.1122000?

A: The 1241.6634.1122000 is classified as obsolete. The 3-145-553 provides supply continuity as an active production alternative from the same manufacturer.

Q: Are there differences in illumination specifications between these parts?

A: The main part specifies green LED illumination at 24 VDC nominal. Illumination specifications for the 3-145-553 are not provided in the available data. Confirmation of illumination compatibility is required for applications where LED indication is a functional requirement.

Q: What packaging considerations apply to the substitute part?

A: Packaging information for the 3-145-553 is not specified in the available data. Packaging requirements should be confirmed with the manufacturer or distributor.

Q: Are both parts RoHS compliant?

A: The 1241.6634.1122000 is ROHS3 compliant. RoHS compliance status for the 3-145-553 is not provided in the available data and should be verified if regulatory compliance is required.
