SCHURTER 1241.6632.5120000 Equivalent & Substitute Parts

Part Overview

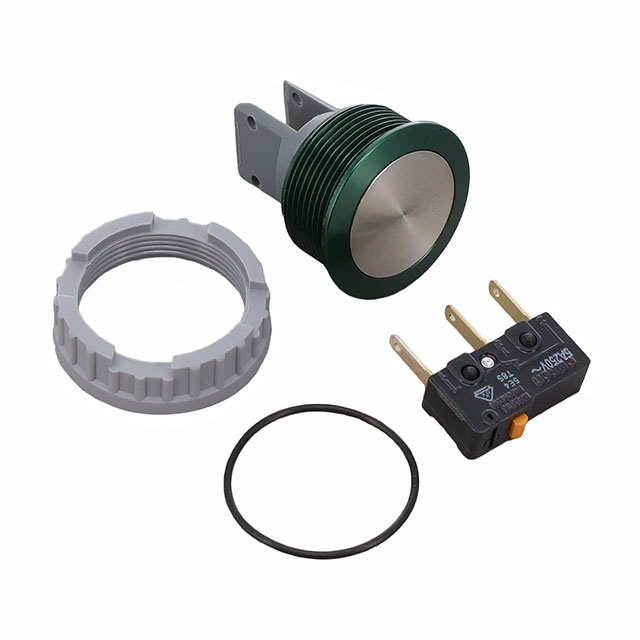

The SCHURTER 1241.6632.5120000 is an anti-vandal pushbutton switch with SPDT circuit configuration, rated for 5A at 250V AC. This component is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing maintenance, repair, and system continuity. The part features panel mount installation with a circular 22.10mm cutout and quick connect termination suitable for industrial control applications.

Substiute Parts

1241.6632.5120000

SCHURTER Inc.In Stock: 10361241.6632.5120000 Datasheet

Current PartRFQ

3-146-012

SCHURTER Inc.In Stock: 10703-146-012 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete SCHURTER 1241.6632.5120000 is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPDT)
• Current rating (5A AC)
• Voltage rating (125V AC minimum)
• Mounting type (Panel Mount, Front)
• Actuator type (Round, Button, Flush)
• Termination style (Quick Connect - 0.110")
• Panel cutout dimensions (Circular - 22.10mm Dia)
• Ingress protection rating (IP40)
• Operating temperature range (-25°C ~ 85°C)

The SCHURTER 3-146-012 meets these substitution criteria as an active product offering equivalent electrical and mechanical specifications within the SCHURTER product portfolio.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 3-146-012 is the recommended substitute for the obsolete 1241.6632.5120000. Both components are manufactured by SCHURTER Inc. and share identical electrical circuit configuration (SPDT), current rating (5A AC), and mechanical mounting specifications. The substitute part is currently in active production status with 984 units available in inventory.

The 3-146-012 provides enhanced voltage rating capability (250V AC versus 125V AC), which ensures compatibility in applications originally designed for the 1241.6632.5120000 while offering additional operational margin in higher voltage environments. Both parts utilize identical quick connect termination and panel mount configurations, eliminating the need for mechanical redesign or connector modification.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 3-146-012 directly replace the 1241.6632.5120000 in existing installations?

A: Yes. Both parts share identical SPDT circuit configuration, 5A AC current rating, panel mount specifications, and quick connect termination. The substitute part's higher voltage rating (250V AC) is backward compatible with applications rated for 125V AC operation.

Q: Are there mechanical compatibility concerns between these parts?

A: No. Both components feature identical round flush button actuators, quick connect 0.110" (2.8mm) termination, and circular 22.10mm panel cutout dimensions. Direct mechanical substitution is possible without panel modification.

Q: What is the inventory status for the substitute part?

A: The SCHURTER 3-146-012 is in active production with 984 units currently available in stock, ensuring reliable supply for replacement and new applications.

Q: Does the substitute part meet the same compliance standards?

A: The main part is ROHS3 compliant. Compliance certification details for the substitute part were not provided in the available technical documentation.
