SCHURTER 1241.6632.3120057 Equivalent & Substitute Parts

Part Overview

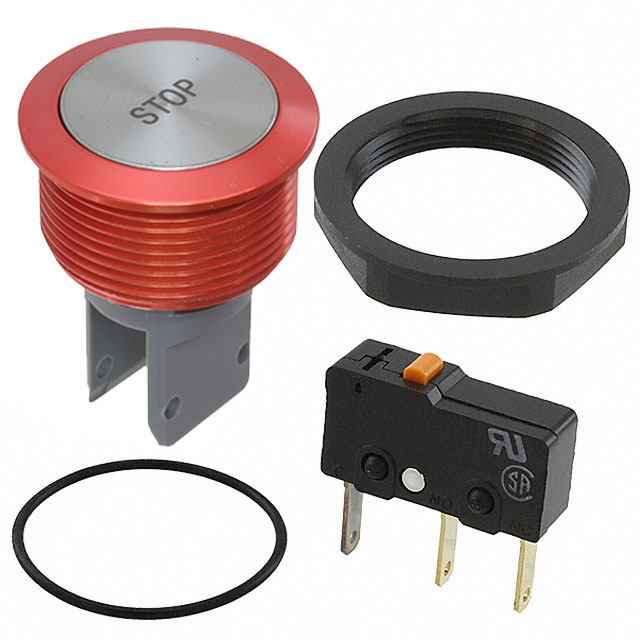

The SCHURTER 1241.6632.3120057 is an anti-vandal pushbutton switch with SPDT circuit configuration, rated for 5A at 250V AC. This panel-mount component features a round flush button actuator with red coloring and quick-connect termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and component procurement.

Substiute Parts

1241.6632.3120057

SCHURTER Inc.In Stock: 10471241.6632.3120057 Datasheet

Current PartRFQ

3-146-010

SCHURTER Inc.In Stock: 10293-146-010 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1241.6632.3120057 is determined by the following critical parameters:

• Circuit configuration: SPDT
• Current rating: 5A (AC)
• Voltage rating: 250V AC
• Mounting type: Panel Mount, Front
• Actuator type: Round, Button, Flush
• Termination style: Quick Connect - 0.110" (2.8mm)
• Ingress protection: IP40
• Operating temperature range: -25°C to 85°C

The SCHURTER 3-146-010 meets these electrical and mechanical specifications, establishing it as a functionally equivalent substitute. Both components are manufactured by SCHURTER Inc. and share identical switching characteristics and environmental ratings.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 3-146-010 is the recommended substitute for the obsolete 1241.6632.3120057. Both components are ROHS3 compliant and share identical electrical ratings, mechanical specifications, and environmental operating parameters. The primary distinction is product status: the 3-146-010 maintains active production status, ensuring long-term availability and supply chain continuity.

Selection of the 3-146-010 is appropriate for applications requiring SPDT switching at 5A/250V AC with panel-mount front installation and IP40 environmental protection. The electrical and mechanical compatibility eliminates the need for circuit redesign or mechanical re-engineering.

Frequently Asked Questions (FAQ)

Q: What makes the SCHURTER 3-146-010 a suitable substitute for the 1241.6632.3120057?

A: Both components share identical electrical ratings (5A/250V AC SPDT), mechanical mounting configuration (panel mount, front), actuator design (round flush button), termination style (quick connect 0.110"), and environmental specifications (IP40, -25°C to 85°C operating range). The 3-146-010 maintains active production status, addressing the obsolescence of the original part.

Q: Are there any compatibility concerns when replacing the 1241.6632.3120057 with the 3-146-010?

A: No compatibility concerns exist. Both components are manufactured by SCHURTER Inc. and meet identical specifications for circuit function, electrical ratings, mounting dimensions, and termination requirements. Direct substitution is supported without circuit or mechanical modifications.

Q: What is the difference between the two part numbers?

A: The 1241.6632.3120057 is classified as obsolete, while the 3-146-010 is in active production. Both components are functionally equivalent and meet the same electrical and mechanical standards.

Q: Can the 3-146-010 be used in existing designs originally specified for the 1241.6632.3120057?

A: Yes. The 3-146-010 is a direct functional equivalent with matching electrical ratings, mechanical specifications, and environmental ratings. No design modifications are required for integration into existing applications.
