SCHURTER 1241.6632.1110000 Equivalent & Substitute Parts

Part Overview

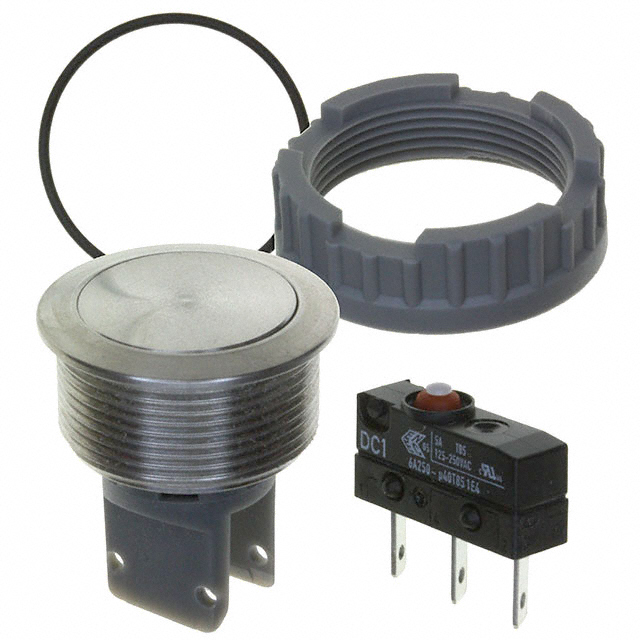

The SCHURTER 1241.6632.1110000 is an anti-vandal panel mount pushbutton switch with SPDT circuit configuration, rated for 100mA DC at 30V. This component is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system maintenance and new design implementations where this switch type is required.

Substiute Parts

1241.6632.1110000

SCHURTER Inc.In Stock: 8731241.6632.1110000 Datasheet

Current PartRFQ

3-145-481

SCHURTER Inc.In Stock: 9253-145-481 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SCHURTER 1241.6632.1110000 is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPDT)
• Current rating (100mA DC)
• Voltage rating (30V DC)
• Switch function (On-Momentary)
• Mounting type (Panel Mount, Front)
• Anti-vandal construction
• Actuator type (Round, Button, Flush)
• Termination style (Quick Connect - 0.110")
• Panel cutout dimensions (Circular - 22.10mm Dia)
• Ingress protection rating (IP40)
• Operating temperature range (-25°C ~ 85°C)
• Mechanical and electrical life specifications

The SCHURTER 3-145-481 qualifies as a substitute based on matching circuit configuration, current rating, voltage rating, and switch function. Both components are manufactured by SCHURTER Inc., ensuring design consistency and compatibility within the MSM series ecosystem.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 3-145-481 is the recommended substitute for the obsolete 1241.6632.1110000. The substitute part maintains active product status with SCHURTER Inc., ensuring continued availability and support. Both components share identical electrical specifications (SPDT, 100mA DC, 30V DC) and switch function characteristics (On-Momentary operation).

Selection of the 3-145-481 is appropriate for applications requiring replacement of failed units or redesign efforts where the original part is no longer procurable. The active status of the substitute part provides supply chain continuity and access to current manufacturing documentation.

Frequently Asked Questions (FAQ)

Q: Can the SCHURTER 3-145-481 directly replace the 1241.6632.1110000 in existing designs?

A: Yes. Both components share identical circuit configuration (SPDT), current rating (100mA DC), voltage rating (30V DC), and switch function (On-Momentary). Electrical compatibility is established across these critical parameters.

Q: What is the primary reason for substitution?

A: The 1241.6632.1110000 is classified as obsolete. The 3-145-481 maintains active product status, ensuring ongoing availability and manufacturing support from SCHURTER Inc.

Q: Are there packaging or mechanical differences between these parts?

A: Packaging information for the 3-145-481 is not specified in available data. Mechanical compatibility should be confirmed through detailed component documentation from SCHURTER Inc. prior to implementation in space-constrained applications.

Q: Do both parts meet the same compliance standards?

A: The 1241.6632.1110000 is ROHS3 compliant and REACH unaffected. Compliance status for the 3-145-481 should be confirmed with the manufacturer to ensure regulatory requirements are met for your specific application.

Q: What is the inventory status of these parts?

A: The 1241.6632.1110000 has 823 pieces in stock. The 3-145-481 has 888 pieces in stock. Both are available as new original components.
