3M 12-38-W Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The 3M 12-38-W is an active, non-insulated ring terminal connector designed for circular stud applications. This component is a crimp-style terminal rated for 14-16 AWG wire gauges with a 3/8" stud size. The part maintains ROHS3 compliance and features a brazed seam construction with tin-plated copper contact material. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring compatible ring terminal connectors with matching electrical and mechanical specifications.

Substiute Parts

12-38-W

3MIn Stock: 66712-38-W Datasheet

Current PartRFQ

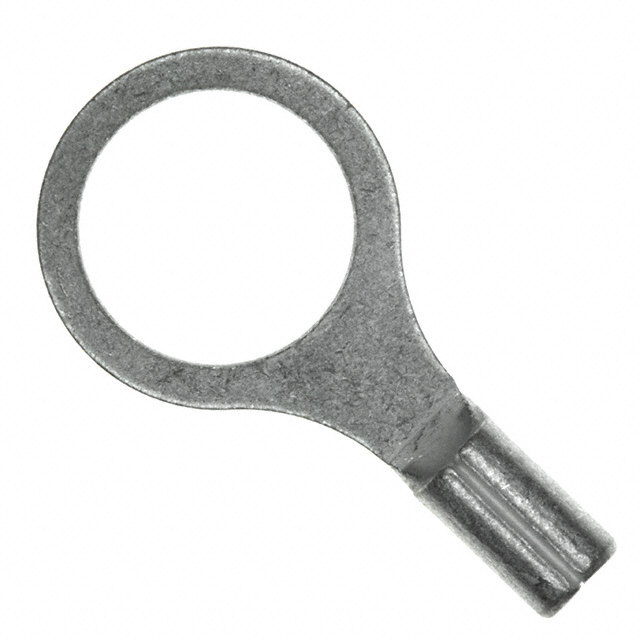

P14-38R-C

Panduit CorpIn Stock: 1632P14-38R-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 12-38-W is determined by the following critical parameters:

• Terminal Type: Must be circular ring configuration
• Stud Size: Must accommodate 3/8" stud connection
• Contact Material & Finish: Copper with tin plating ensures electrical compatibility
• Termination Method: Crimp-style termination for wire attachment
• Mounting Configuration: Free hanging, in-line orientation
• Regulatory Compliance: ROHS3 compliance required

The Panduit Corp P14-38R-C qualifies as a substitute based on matching stud size, terminal type, contact material, contact finish, termination method, mounting type, and regulatory compliance. The wire gauge range extends to 14-18 AWG, providing broader compatibility while maintaining mechanical and electrical equivalence for 14-16 AWG applications.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 12-38-W and Panduit P14-38R-C ring terminal connectors are active products with ROHS3 compliance and equivalent mechanical specifications for 3/8" stud applications. Selection between these parts should be based on:

• Wire Gauge Compatibility: The 3M 12-38-W is specified for 14-16 AWG wire. The Panduit P14-38R-C extends the wire gauge range to 14-18 AWG, providing broader application coverage while maintaining compatibility with 14-16 AWG wire sizes.
• Regulatory Compliance: Both parts meet ROHS3 requirements and are suitable for applications with environmental compliance mandates.
• Availability: Inventory levels and lead times may influence selection. The Panduit P14-38R-C currently shows higher stock availability (1599 pcs vs. 652 pcs).
• Dimensional Tolerance: Minor variations in outer edge width and overall length exist between manufacturers but do not affect stud compatibility or functional performance in standard applications.

Frequently Asked Questions (FAQ)

Q: Can the Panduit P14-38R-C replace the 3M 12-38-W in all applications?

A: Yes, for applications using 14-16 AWG wire with 3/8" stud connections. The Panduit part maintains identical stud size, contact material, contact finish, termination method, and mounting configuration. The extended wire gauge range (14-18 AWG) does not compromise compatibility with 14-16 AWG wire.

Q: What are the critical parameters that must match for substitution?

A: Terminal type (circular ring), stud size (3/8"), contact material (copper), contact finish (tin), termination method (crimp), mounting type (free hanging in-line), and regulatory compliance (ROHS3) must remain constant for direct substitution.

Q: Are there dimensional differences between these parts?

A: Minor dimensional variations exist. The 3M 12-38-W has an outer edge width of 0.560" (14.22mm) and overall length of 0.930" (23.62mm), while the Panduit P14-38R-C measures 0.530" (13.46mm) and 1.000" (25.40mm) respectively. Both maintain the same 0.030" (0.76mm) thickness and are mechanically compatible with 3/8" studs.

Q: What is the significance of the brazed seam and serrated termination features?

A: The brazed seam provides structural integrity and electrical continuity in the ring terminal. The Panduit part includes serrated termination, which enhances wire grip during the crimp process. Both features support reliable electrical connection and mechanical retention.

Q: Are both parts non-insulated?

A: Yes, both the 3M 12-38-W and Panduit P14-38R-C are non-insulated ring terminals. Applications requiring insulated terminals require different part selections.
