TE Connectivity 1-229913-1 D-Sub 50 Position Receptacle Connector Equivalent & Substitute Parts

Part Overview

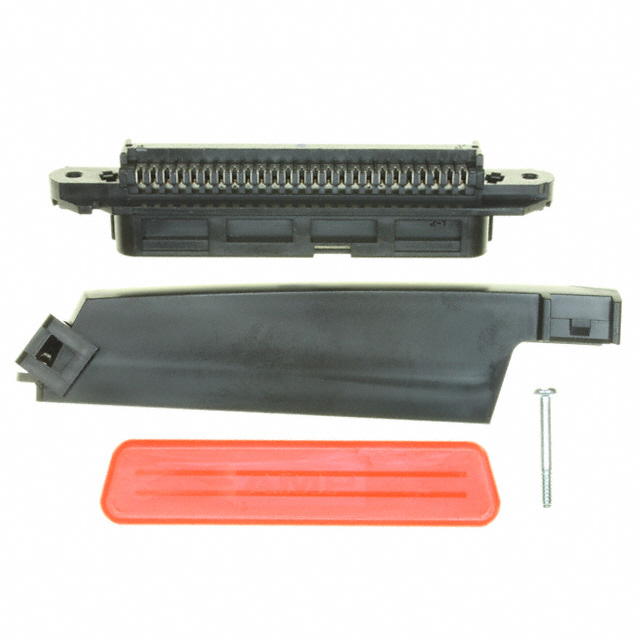

The TE Connectivity AMP Connectors 1-229913-1 is a 50 position receptacle connector featuring right angle IDC (Insulation Displacement Contact) termination in the CHAMP .085 series. This connector is designed for free hanging (in-line) applications with outer shroud contacts and includes integrated backshell, cable clamp, dust cover, and mounting hardware. The part is currently classified as obsolete, necessitating identification of active equivalent components to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

1-229913-1

TE Connectivity AMP ConnectorsIn Stock: 10781-229913-1 Datasheet

Current PartRFQ

1-5229913-1

TE Connectivity AMP ConnectorsIn Stock: 12971-5229913-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 1-229913-1 is based on electrical and mechanical parameter equivalence within the D-Sub D-shaped connector category. The substitute part must maintain identical specifications across the following critical parameters:

• Connector Type and Position Count: Receptacle configuration with 50 positions in 2 rows
• Mounting and Termination: Free hanging (in-line) right angle orientation with IDC termination
• Connector Series and Style: CHAMP .085 series with outer shroud contacts
• Contact Properties: Gold finish at 30.0µin (0.76µm) thickness
• Mechanical Features: Housing/Shell (4-40) flange with integrated backshell, cable clamp, dust cover, and mounting hardware
• Environmental Classification: Moisture Sensitivity Level 1 (Unlimited)

The identified substitute part maintains full electrical and mechanical compatibility with the original component specification.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1-5229913-1 serves as the direct active equivalent to the obsolete 1-229913-1. Selection of the substitute part is supported by the following engineering considerations:

Product Status: The substitute part 1-5229913-1 maintains active product status with TE Connectivity, ensuring ongoing availability, technical support, and supply chain continuity. The original part 1-229913-1 is classified as obsolete and subject to discontinuation.

Regulatory Compliance: The substitute part 1-5229913-1 is ROHS3 compliant, meeting current environmental and regulatory requirements for electronic components in most jurisdictions. The original part is RoHS non-compliant and may present compliance challenges for new designs or applications subject to RoHS directives.

Electrical and Mechanical Equivalence: Both parts are manufactured by TE Connectivity within the same CHAMP .085 series and maintain identical specifications for connector type, position count, mounting configuration, termination method, contact properties, and integrated features. This equivalence ensures direct functional interchangeability in existing designs.

Packaging and Inventory: The substitute part is supplied in box packaging with higher current inventory levels (1271 pieces) compared to the original part (982 pieces), supporting reliable procurement for production requirements.

Frequently Asked Questions (FAQ)

Q: Can the 1-5229913-1 substitute directly replace the 1-229913-1 in existing designs?

A: Yes. Both connectors are electrically and mechanically equivalent within the CHAMP .085 series. The 50 position receptacle configuration, right angle IDC termination, outer shroud contact style, gold contact finish, and integrated features are identical. Direct substitution is supported without design modification.

Q: What is the difference between the original and substitute part numbers?

A: The primary difference is product status. The 1-229913-1 is obsolete, while the 1-5229913-1 is active. The substitute part incorporates ROHS3 compliance, whereas the original is RoHS non-compliant. The base product number for the substitute is 5229913. All functional and mechanical specifications remain equivalent.

Q: Are there packaging differences between these parts?

A: The original part 1-229913-1 has no specified packaging designation. The substitute part 1-5229913-1 is supplied in box packaging. This packaging difference does not affect connector performance or compatibility.

Q: Does the ROHS3 compliance of the substitute part affect compatibility?

A: No. ROHS3 compliance of the substitute part represents an improvement in regulatory status and does not introduce incompatibility. The substitute part meets or exceeds the environmental standards applicable to the original part.

Q: Are the contact finish specifications identical?

A: Yes. Both parts feature gold contact finish at 30.0µin (0.76µm) thickness, ensuring equivalent electrical performance and contact reliability.

Q: What is the Moisture Sensitivity Level for both parts?

A: Both the original 1-229913-1 and substitute 1-5229913-1 are classified as Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or use.

Q: Can the 1-5229913-1 be used in applications originally designed for the 1-229913-1?

A: Yes. The substitute part maintains full compatibility with applications designed for the original part. Identical connector type, position count, mounting method, termination technology, and integrated features ensure functional equivalence.
