TE Connectivity AMP Connectors 1217198-1 Equivalent & Substitute Parts

Part Overview

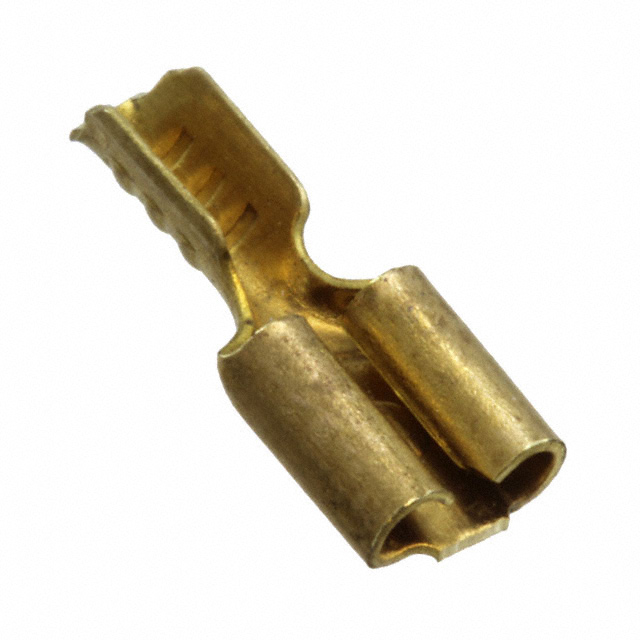

The TE Connectivity AMP Connectors 1217198-1 is a 0.110" (2.79mm) Quick Connect Female 22-26 AWG Crimp Connector with non-insulated design, part of the Faston series. This terminal is classified as Obsolete, indicating discontinued production and limited availability. The part is designed for free-hanging in-line mounting applications requiring crimp termination on wire gauges between 22 and 26 AWG. Due to its obsolete status, identifying equivalent substitute parts with identical electrical and mechanical specifications is essential for maintaining design compatibility and ensuring continued component availability for production and repair applications.

Substiute Parts

1217198-1

TE Connectivity AMP ConnectorsIn Stock: 7681217198-1 Datasheet

Current PartRFQ

61818-1

TE Connectivity AMP ConnectorsIn Stock: 44631161818-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 1217198-1 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 61818-1 qualifies as a direct equivalent based on the following matching criteria:

Matching Parameters:

• Tab Width: 0.110" (2.79mm)
• Tab Thickness: 0.016" (0.41mm)
• Tab Length: 0.140" (3.56mm)
• Wire Gauge Range: 22-26 AWG
• Gender: Female
• Termination: Crimp
• Insulation: Non-Insulated
• Mounting Type: Free Hanging (In-Line)
• Contact Material: Brass
• Series: Faston
• RoHS Compliance: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)

The substitute part maintains identical form, fit, and function characteristics, ensuring direct interchangeability in applications originally designed for the 1217198-1.

Parameter Comparison

Engineering Selection Recommendations

The 61818-1 is the direct equivalent substitute for the obsolete 1217198-1. Selection of the 61818-1 is based on the following engineering criteria:

Product Status Consideration: The 1217198-1 is classified as Obsolete, indicating end-of-life status and unavailability for new production. The 61818-1 maintains Active product status, ensuring continued availability and supply chain reliability.

Compliance Alignment: Both parts maintain identical RoHS3 compliance and EAR99 export classification, satisfying regulatory requirements without modification to existing designs or certifications.

Electrical and Mechanical Equivalence: All critical parameters determining connector function and interchangeability are identical between the two parts, including tab dimensions, wire gauge compatibility, termination method, and contact material composition.

Packaging Availability: The 61818-1 is available in Cut Tape (CT) packaging with significantly higher inventory levels (446,277 pieces), providing superior supply chain accessibility compared to the limited stock of the obsolete 1217198-1 (672 pieces).

The 61818-1 provides direct form, fit, and function replacement without design modification or re-qualification requirements.

Frequently Asked Questions (FAQ)

Q: Can the 61818-1 be used as a direct replacement for the 1217198-1 in existing designs?

A: Yes. The 61818-1 is electrically and mechanically equivalent to the 1217198-1 across all specified parameters. Tab dimensions, wire gauge range, termination method, contact material, and mounting characteristics are identical, enabling direct substitution without design modification.

Q: What is the primary reason for substituting the 1217198-1?

A: The 1217198-1 is classified as Obsolete, indicating discontinued production. The 61818-1 is an Active product with equivalent specifications and significantly higher inventory availability, ensuring reliable supply for current and future production requirements.

Q: Are there any differences in compliance or regulatory status between these parts?

A: No. Both parts maintain identical RoHS3 compliance, MSL rating of 1 (Unlimited), and EAR99 export classification. No compliance modifications are required when substituting the 61818-1 for the 1217198-1.

Q: Does packaging differ between the two parts?

A: Yes. The 1217198-1 packaging is not specified, while the 61818-1 is supplied in Cut Tape (CT) packaging. This packaging difference does not affect electrical or mechanical compatibility; it reflects standard industry packaging for active production parts.

Q: What wire gauges are compatible with the 61818-1?

A: The 61818-1 accommodates wire gauges from 22 to 26 AWG, identical to the 1217198-1 specification. Crimp termination must be performed using tooling rated for this wire gauge range.

Q: Are the tab dimensions identical between these connectors?

A: Yes. Both parts feature a 0.110" (2.79mm) tab width, 0.016" (0.41mm) tab thickness, and 0.140" (3.56mm) tab length. These dimensions ensure compatibility with mating connectors and receptacles designed for the Faston series 0.110" quick connect standard.

Q: What is the contact material composition?

A: Both the 1217198-1 and 61818-1 utilize brass as the contact material, providing consistent electrical conductivity and corrosion resistance across the substitution.
