3M 12-14S-W Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The 3M 12-14S-W is a circular ring terminal connector designed for 14-16 AWG wire gauges with a 1/4" stud connection. This non-insulated, crimp-style terminal features a brazed seam construction and tin-plated copper contact material. The part is actively manufactured and ROHS3 compliant, with 727 units currently in stock. Equivalent and substitute parts are identified when identical or functionally compatible specifications are required for applications where the primary part is unavailable or when design flexibility permits alternative manufacturers.

Substiute Parts

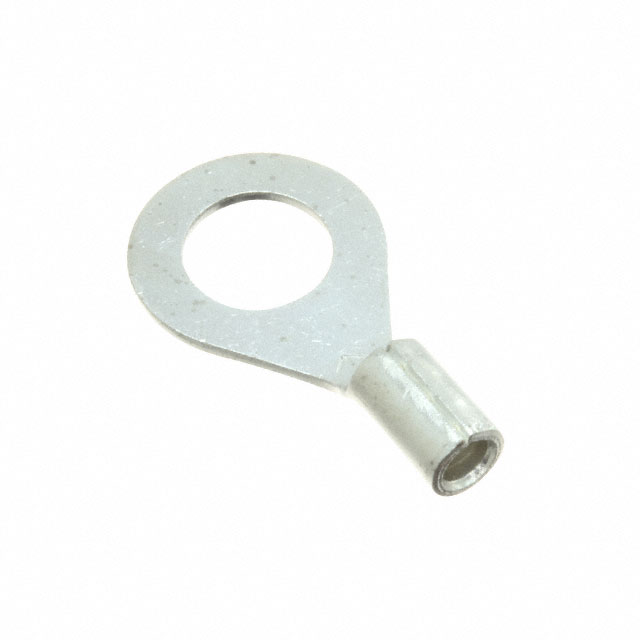

12-14S-W

3MIn Stock: 78712-14S-W Datasheet

Current PartRFQ

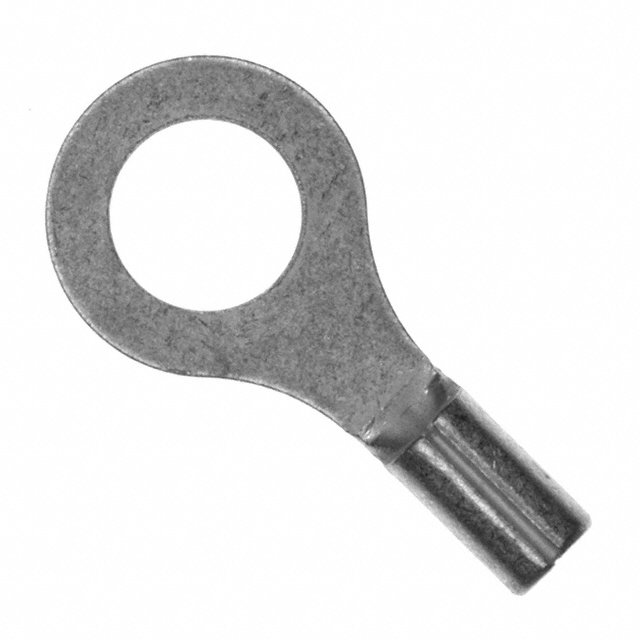

P14-14R-C

Panduit CorpIn Stock: 1364P14-14R-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 12-14S-W is determined by the following critical parameters:

• Terminal Type & Stud Size: Must be circular terminal with 1/4" stud to ensure mechanical compatibility with mating hardware
• Wire Gauge Range: Acceptable wire gauge must overlap with or encompass 14-16 AWG
• Termination Method: Must be crimp-style termination
• Contact Material & Finish: Copper with tin plating ensures electrical performance and corrosion resistance
• Insulation Classification: Non-insulated construction must be maintained
• Compliance: ROHS3 compliance required for regulatory alignment

The Panduit Corp P14-14R-C meets these substitution criteria with compatible mechanical and electrical specifications.

Parameter Comparison

Engineering Selection Recommendations

Both the 3M 12-14S-W and Panduit P14-14R-C are active products with ROHS3 compliance and EAR99 ECCN classification. The Panduit P14-14R-C accommodates a wider wire gauge range (14-18 AWG versus 14-16 AWG), providing design flexibility for applications using 14-16 AWG wire. The Panduit part includes serrated termination as an additional feature. Dimensional variations are minimal, with outer width and overall length differences within 0.010" and 0.020" respectively. Both parts maintain identical contact material, finish, thickness, and mounting characteristics. Selection between these parts depends on application-specific wire gauge requirements and feature preferences.

Frequently Asked Questions (FAQ)

Q: Can the Panduit P14-14R-C replace the 3M 12-14S-W in all applications?

A: The Panduit P14-14R-C is compatible with 3M 12-14S-W applications using 14-16 AWG wire. The Panduit part's extended wire gauge range (14-18 AWG) does not restrict its use in 14-16 AWG applications. Both parts share identical stud size, contact material, finish, and mounting type.

Q: What is the significance of the serrated termination feature on the Panduit part?

A: Serrated termination on the Panduit P14-14R-C provides enhanced mechanical grip during the crimp process. This feature does not affect compatibility with standard crimp tooling designed for circular ring terminals with 1/4" studs.

Q: Are there dimensional differences between these parts?

A: Minor dimensional variations exist. The Panduit P14-14R-C has an outer width of 0.460" (11.68mm) compared to 0.470" (11.94mm) for the 3M part, and an overall length of 0.910" (23.11mm) compared to 0.890" (22.61mm). These differences do not affect mechanical compatibility with standard 1/4" stud hardware.

Q: Do both parts meet the same regulatory requirements?

A: Yes. Both the 3M 12-14S-W and Panduit P14-14R-C are ROHS3 compliant with EAR99 ECCN classification and identical HTSUS codes (8536.90.4000).

Q: What packaging options are available?

A: Both parts are supplied in bulk packaging. The 3M 12-14S-W has 727 units in stock, while the Panduit P14-14R-C has 1285 units in stock.
