TE Connectivity AMP Connectors 120637-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 120637-1 is a 144 Position Receptacle connector featuring female sockets with a 0.079" (2.00mm) board edge pitch. This backplane connector utilizes press-fit termination and right-angle mounting through the board. The part belongs to the Z-PACK series and is designed for applications requiring high-density interconnection on backplane assemblies.

Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative stock sources.

Substiute Parts

120637-1

TE Connectivity AMP ConnectorsIn Stock: 1100120637-1 Datasheet

Current PartRFQ

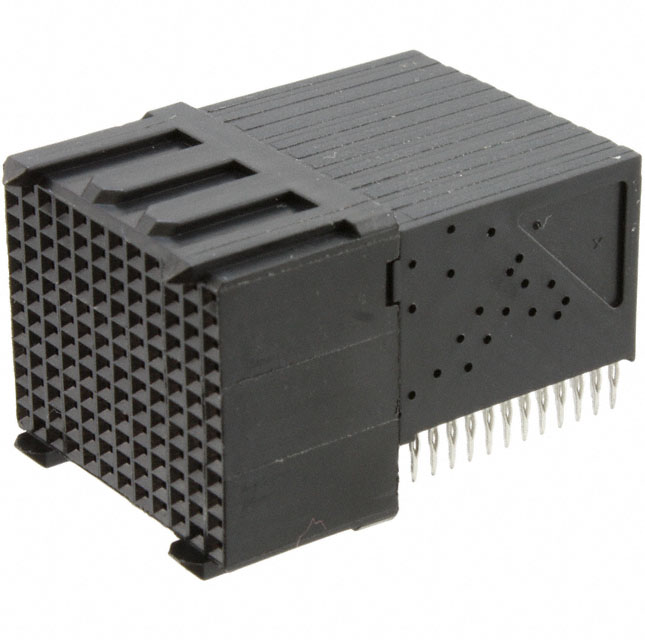

5120637-1

TE Connectivity AMP ConnectorsIn Stock: 9295120637-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 120637-1 is determined by strict equivalence across the following critical parameters:

• Connector Type and Configuration: Receptacle with female sockets
• Position Count: 144 positions
• Pitch Specification: 0.079" (2.00mm) board edge spacing
• Row Configuration: 12 rows
• Mounting and Termination: Board edge, through hole, right angle orientation with press-fit termination
• Series Classification: Z-PACK series designation
• Manufacturer: TE Connectivity AMP Connectors

The substitute part 5120637-1 meets all these criteria and is therefore classified as a direct equivalent. Substitution is valid when these parameters remain constant across the application requirement.

Parameter Comparison

Engineering Selection Recommendations

Both 120637-1 and 5120637-1 are manufactured by TE Connectivity AMP Connectors and share identical core electrical and mechanical specifications for backplane connector applications. The substitute part 5120637-1 carries Active product status and is certified ROHS3 compliant, indicating current production and regulatory compliance.

Selection between these parts should be based on:

• Availability: Current inventory levels and lead time requirements
• Packaging Requirements: The substitute part 5120637-1 is supplied in Tube packaging
• Regulatory Compliance: The substitute part 5120637-1 provides documented ROHS3 compliance and MSL Level 1 rating
• Supply Chain Continuity: Both parts are sourced from the same manufacturer, ensuring consistent quality and specifications

Frequently Asked Questions (FAQ)

Q: Can 5120637-1 be used as a direct replacement for 120637-1?

A: Yes. Both parts are 144-position receptacle connectors with 0.079" (2.00mm) pitch, board edge through-hole right-angle mounting, and press-fit termination. They are electrically and mechanically equivalent for backplane connector applications.

Q: What is the difference between these two part numbers?

A: The primary difference is packaging. Part 5120637-1 is supplied in Tube packaging, while 120637-1 packaging is not specified in the available data. Additionally, 5120637-1 includes documented ROHS3 compliance and MSL Level 1 certification.

Q: Are there any compatibility concerns when substituting 5120637-1 for 120637-1?

A: No compatibility concerns exist. Both connectors share identical position count, pitch, mounting type, and termination method. They are designed for the same Z-PACK series backplane connector applications.

Q: What does the connector style designation "B 12" indicate for part 5120637-1?

A: The "B 12" designation refers to the specific connector style configuration within the Z-PACK series, indicating the 12-row arrangement of the 144-position receptacle.

Q: Is moisture sensitivity a concern for these connectors?

A: Part 5120637-1 carries an MSL Level 1 rating, indicating unlimited moisture sensitivity tolerance. Standard handling and storage practices are sufficient for this component.

Q: What is the contact finish specification for these connectors?

A: Part 5120637-1 specifies gold contact finish with 30.0µin (0.76µm) thickness, providing corrosion resistance and reliable electrical contact for backplane applications.
