Equivalent & Substitute Parts for Honeywell 11SM3-T2 Snap Action Switch

Part Overview

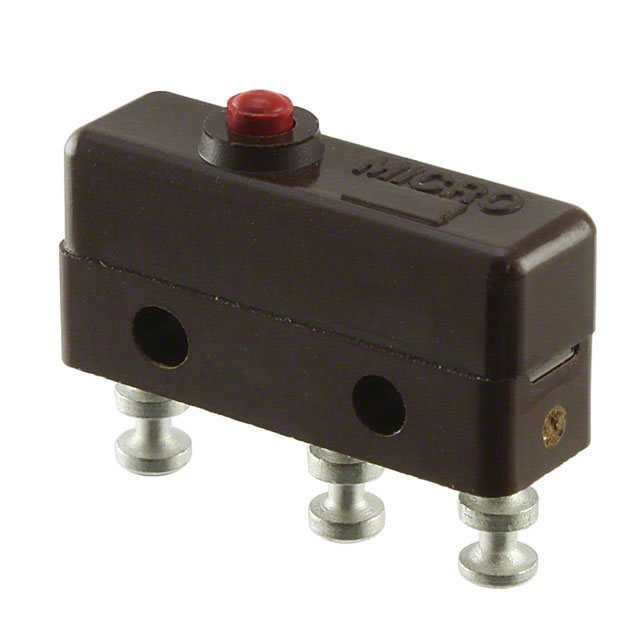

The Honeywell 11SM3-T2 is an SPDT snap action switch rated for 5A at 250V AC with chassis mount configuration and solder turret termination. This switch is currently in active production status. Substitute parts may be required due to supply chain constraints, inventory availability, or specific application requirements where alternative electrical or mechanical parameters are acceptable within system design tolerances.

Substiute Parts

11SM3-T2

Honeywell Sensing and Productivity SolutionsIn Stock: 116111SM3-T2 Datasheet

Current PartRFQ

DB1C-A1AA

Hirose Electric Co LtdIn Stock: 919DB1C-A1AA Datasheet

SimilarRFQ

DB2CA1AA

ZF ElectronicsIn Stock: 20959DB2CA1AA Datasheet

SimilarRFQ

DC3C-A1AA

Hirose Electric Co LtdIn Stock: 1171DC3C-A1AA Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Honeywell 11SM3-T2 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration must be SPDT
• Switch function must be On-Momentary
• Actuator type must be Round Pin Plunger
• Mounting type must be Chassis Mount
• Mechanical life must support 10,000,000 cycles minimum

Acceptable Parameter Variations:

• Current rating may differ if application requirements permit
• Voltage ratings (AC/DC) may differ if within system design specifications
• Termination style may vary (Solder Turret, Solder Lug acceptable)
• Operating force and release force may vary within mechanical design tolerance
• Operating temperature range may be narrower if application environment permits
• Product status may be Active or Obsolete depending on supply requirements

The substitute parts DB1C-A1AA, DB2CA1AA, and DC3C-A1AA share the core SPDT circuit configuration and On-Momentary function with compatible mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

DB2CA1AA (ZF Electronics) - Primary Active Substitute: This part maintains active production status and ROHS3 compliance. It shares SPDT circuit configuration, On-Momentary function, and identical 0.330" operating position with the 11SM3-T2. The 10A current rating at 125V AC exceeds the original 5A at 250V AC specification in terms of current capacity but operates at lower voltage. This part is suitable for applications where AC operation at 125V or lower is acceptable and current requirements do not exceed 10A. Mechanical life rating of 10,000,000 cycles matches the original specification.

DB1C-A1AA (Hirose Electric Co Ltd) - Obsolete Status: This substitute carries obsolete product status. Limited technical parameter data is provided. Selection of this part should be restricted to legacy system maintenance where original component sourcing is unavailable and design re-qualification is not feasible.

DC3C-A1AA (Hirose Electric Co Ltd) - Obsolete Status: This substitute carries obsolete product status. Limited technical parameter data is provided. Selection of this part should be restricted to legacy system maintenance where original component sourcing is unavailable and design re-qualification is not feasible.

Compliance Considerations: All substitute parts share EAR99 ECCN classification and 8536.50.7000 HTSUS code with the original part. MSL rating of 1 (Unlimited) is consistent across all options, indicating no moisture sensitivity constraints for storage or handling.

Frequently Asked Questions (FAQ)

Q: Can DB2CA1AA replace 11SM3-T2 in a 250V AC application? A: DB2CA1AA is rated for 125V AC maximum. It cannot be used in applications requiring 250V AC operation. Voltage derating below the component rating is not an acceptable engineering practice.

Q: What is the significance of the 10A rating on DB2CA1AA versus the 5A rating on 11SM3-T2? A: The higher current rating on DB2CA1AA indicates greater current-carrying capacity. However, the lower AC voltage rating (125V versus 250V) represents a constraint. Substitution is valid only if the application operates at 125V AC or lower and does not exceed 10A current draw.

Q: Why are DB1C-A1AA and DC3C-A1AA listed as obsolete? A: These parts are no longer in active production. They are included as historical reference for legacy system maintenance only. New designs should not incorporate obsolete components.

Q: Are there termination style differences between the substitute parts? A: DB2CA1AA uses Solder Lug termination while 11SM3-T2 uses Solder Turret termination. These are different connection methods requiring different PCB pad layouts. Mechanical and electrical compatibility must be verified during design integration.

Q: Do all substitute parts have the same operating temperature range? A: No. The 11SM3-T2 operates from -55°C to 125°C. DB2CA1AA operates from -40°C to 120°C. If the application requires operation below -40°C or above 120°C, DB2CA1AA is not suitable.

Q: What does MSL 1 (Unlimited) mean for these switches? A: MSL 1 indicates the component has unlimited shelf life under standard storage conditions. No special moisture control measures are required during storage, handling, or transportation.

Q: Is the 0.330" operating position identical across all parts? A: The 11SM3-T2 and DB2CA1AA both specify 0.330" (8.4mm) operating position. Operating position data is not provided for DB1C-A1AA and DC3C-A1AA, so mechanical compatibility cannot be confirmed for these parts.
