TE Connectivity 1-1969597-4 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-1969597-4 is a 14-position rectangular connector receptacle housing from the VAL-U-LOK series, designed for free-hanging in-line applications with crimp termination and latch lock fastening. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector accommodates female socket contacts with a 0.165" (4.20mm) pitch in a 2-row configuration and operates across the industrial temperature range of -40°C to 105°C.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	14
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Operating Temperature	-40°C ~ 105°C
Insulation Material	Polyamide (PA66), Nylon 6/6
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the 1-1969597-4 is determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (14), pitch (0.165"/4.20mm), number of rows (2), row spacing (0.165"/4.20mm), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All substitute parts maintain these electrical and mechanical specifications. Operating temperature range (-40°C to 105°C), RoHS3 compliance, and MSL 1 rating are consistent across all alternatives. Variations in color (natural, white, beige) and insulation material designation (PA66 versus PA) do not affect functional interchangeability. Substitute parts are sourced from TE Connectivity AMP Connectors, Molex, CNC Tech, and Samtec Inc., with active product status preferred over obsolete classification.

Parameter Comparison

Part Number	Manufacturer	Series	Product Status	Positions	Pitch	Rows	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
1-1969597-4	TE Connectivity AMP	VAL-U-LOK	Obsolete	14	0.165" (4.20mm)	2	Natural	PA66, Nylon 6/6	-40°C ~ 105°C	ROHS3	4101
1-1586019-4	TE Connectivity AMP	VAL-U-LOK	Active	14	0.165" (4.20mm)	2	Natural	PA, Nylon	-40°C ~ 105°C	ROHS3	4746
1-1586765-4	TE Connectivity AMP	VAL-U-LOK	Active	14	0.165" (4.20mm)	2	White	PA, Nylon	-40°C ~ 105°C	ROHS3	5037
1-1969603-4	TE Connectivity AMP	VAL-U-LOK	Active	14	0.165" (4.20mm)	2	Natural	PA, Nylon	-40°C ~ 105°C	ROHS3	998
1-1969614-4	TE Connectivity AMP	VAL-U-LOK	Active	14	0.165" (4.20mm)	2	Natural	PA66, Nylon 6/6	-40°C ~ 105°C	ROHS3	912
1-794954-4	TE Connectivity AMP	VAL-U-LOK	Active	14	0.165" (4.20mm)	2	Natural	PA, Nylon	-40°C ~ 105°C	ROHS3	62706
0039012140	Molex	Mini-Fit Jr 5557	Active	14	0.165" (4.20mm)	2	Natural	PA66, Nylon 6/6	-40°C ~ 105°C	ROHS3	20152
4281-2-14-D	CNC Tech	—	Active	14	0.165" (4.20mm)	2	White	PA66, Nylon 6/6	-40°C ~ 105°C	ROHS3	2292

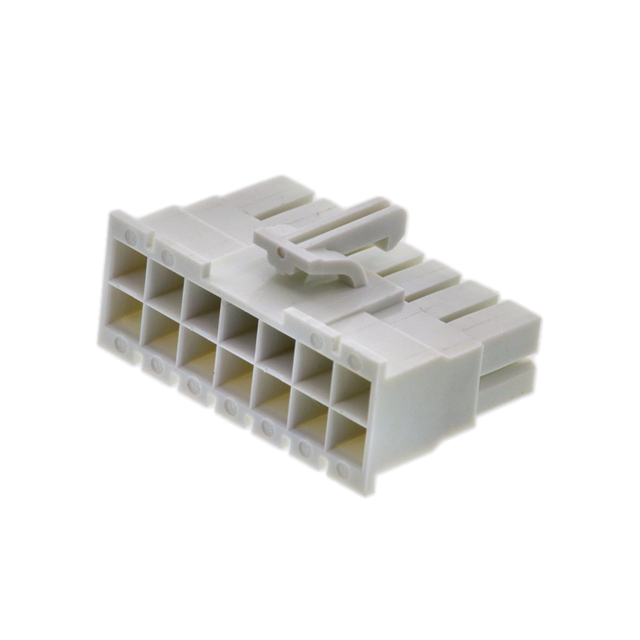

IPBD-07-D	Samtec Inc.	Power Mate® IPBD	Active	14	0.165" (4.20mm)	2	Beige	PA, Nylon	—	ROHS3	797

Engineering Selection Recommendations

For applications requiring direct replacement of the obsolete 1-1969597-4, TE Connectivity AMP Connectors part 1-1969614-4 provides the closest match with identical insulation material specification (PA66, Nylon 6/6) and active product status. This part maintains all electrical and mechanical parameters while ensuring continued availability.

When color specification is not critical to the application, TE Connectivity 1-1586019-4 or 1-794954-4 offer superior inventory availability (4746 and 62706 units respectively) with active product status and full ROHS3 compliance. Part 1-794954-4 is particularly suitable for high-volume requirements due to extensive stock levels.

For applications where white housing is required, TE Connectivity 1-1586765-4 or CNC Tech 4281-2-14-D both provide active status with ROHS3 compliance. The TE Connectivity option maintains series consistency within VAL-U-LOK, while the CNC Tech alternative offers an independent manufacturer source.

Cross-manufacturer substitution is available through Molex part 0039012140 (Mini-Fit Jr 5557 series) and Samtec Inc. part IPBD-07-D (Power Mate® IPBD series). Both maintain all critical electrical and mechanical parameters with ROHS3 compliance and active product status. The Molex option provides the highest inventory availability among non-TE Connectivity alternatives at 20152 units.

All substitute parts are RoHS3 compliant with MSL 1 rating and operate across the -40°C to 105°C temperature range, ensuring regulatory and environmental compatibility with the original specification.

Frequently Asked Questions (FAQ)

Q: Can 1-1969597-4 be directly replaced with any of the listed substitutes?

A: Yes. All listed substitute parts maintain identical electrical and mechanical specifications: 14 positions, 0.165" (4.20mm) pitch, 2-row configuration, female socket contacts, crimp termination, and latch lock fastening. Functional interchangeability is confirmed across all alternatives.

Q: Does color variation affect connector compatibility?

A: No. Color differences (natural, white, beige) are cosmetic and do not affect electrical or mechanical performance. Selection should be based on application requirements and visual identification needs.

Q: What is the difference between PA66 and PA insulation material designations?

A: Both polyamide (PA) and polyamide 6/6 (PA66) are polyamide-based materials meeting the same functional requirements for this connector category. The designation difference reflects material specification variations that do not affect interchangeability for this application.

Q: Why is 1-794954-4 recommended for high-volume applications?

A: Part 1-794954-4 maintains active product status with 62706 units in inventory, providing the highest stock availability among TE Connectivity VAL-U-LOK alternatives. This ensures supply continuity for large-scale production requirements.

Q: Are cross-manufacturer substitutes (Molex, CNC Tech, Samtec) fully compatible?

A: Yes. Molex 0039012140, CNC Tech 4281-2-14-D, and Samtec IPBD-07-D all maintain the critical parameters: 14 positions, 0.165" (4.20mm) pitch, 2 rows, female socket contacts, crimp termination, and latch lock fastening. All are ROHS3 compliant with MSL 1 rating.

Q: What inventory considerations should guide part selection?

A: TE Connectivity 1-794954-4 offers the highest availability (62706 units), followed by Molex 0039012140 (20152 units) and TE Connectivity 1-1586765-4 (5037 units). For immediate requirements, these options provide superior supply assurance.

Q: Is the obsolete status of 1-1969597-4 a concern for existing designs?

A: Yes. Obsolete status indicates discontinued production. Designs currently using 1-1969597-4 should transition to active alternatives such as 1-1969614-4, 1-1586019-4, or 1-794954-4 to ensure long-term component availability and supply chain stability.

Q: Do all substitutes meet the same compliance standards?

A: All listed substitutes are ROHS3 compliant with MSL 1 (Unlimited) moisture sensitivity rating. Operating temperature range is -40°C to 105°C across all TE Connectivity and cross-manufacturer alternatives, with the exception of IPBD-07-D where operating temperature is not specified in available data.
