TE Connectivity 1-1969595-8 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-1969595-8 is an 18-position rectangular connector receptacle housing from the Economy Power 2.5 series. This component serves as the housing structure for receptacle connectors in applications requiring panel-mount, snap-in installation with crimp termination. The part is currently active in production with 1084 units in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required but alternative housing colors or inventory availability necessitate component selection alternatives.

Substiute Parts

1-1969595-8

TE Connectivity AMP ConnectorsIn Stock: 11111-1969595-8 Datasheet

Current PartRFQ

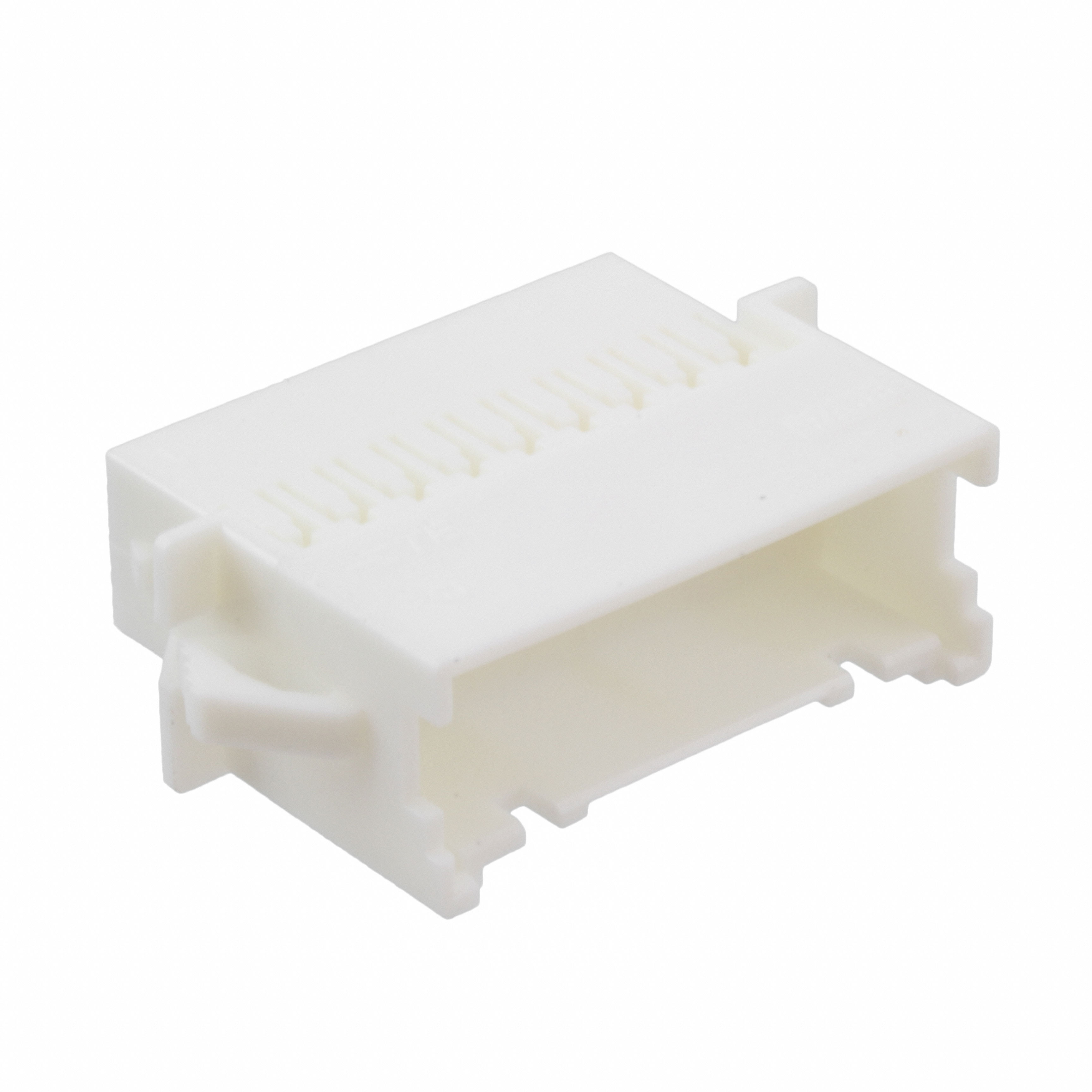

1-1969594-8

TE Connectivity AMP ConnectorsIn Stock: 8811-1969594-8 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the TE Connectivity 1-1969595-8 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Connector type (Receptacle)
• Contact type (Male Pin)
• Number of positions (18)
• Pitch (0.098" / 2.50mm)
• Number of rows (2)
• Row spacing (0.098" / 2.50mm)
• Contact termination method (Crimp)

Mechanical Parameters:

• Mounting type (Panel Mount, Snap-In)
• Fastening type (Latch Holder)
• Insulation material (Polyamide/Nylon)

Environmental Parameters:

• Operating temperature range (-55°C ~ 105°C)
• Moisture sensitivity level (MSL 1)

Regulatory Parameters:

• RoHS compliance status

The substitute part 1-1969594-8 maintains identical electrical, mechanical, and environmental specifications. The only difference is the housing color (White versus Natural), which does not affect functional compatibility or performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Both the 1-1969595-8 and 1-1969594-8 are active production parts from TE Connectivity with full regulatory compliance. Selection between these parts is based on the following criteria:

Primary Selection Criteria:

1. Housing Color Requirement: The main part features Natural color housing, while the substitute features White color housing. Select based on application-specific color requirements or design specifications.

2. Inventory Availability: The main part (1-1969595-8) has 1084 units in stock, while the substitute (1-1969594-8) has 845 units available. Inventory levels may influence procurement decisions for high-volume applications.

3. Regulatory Compliance: Both parts meet RoHS requirements. The main part carries RoHS Compliant status, while the substitute carries ROHS3 Compliant status. Both certifications satisfy current regulatory requirements.

4. Functional Equivalence: All electrical, mechanical, and environmental parameters are identical. Either part functions identically in applications requiring 18-position, 2.50mm pitch receptacle connectors with panel-mount snap-in installation.

Frequently Asked Questions (FAQ)

Q: Are these parts electrically interchangeable?

A: Yes. The 1-1969595-8 and 1-1969594-8 are electrically identical. Both accommodate 18 male pin contacts at 0.098" (2.50mm) pitch with identical row spacing, termination method, and fastening mechanism.

Q: What is the only functional difference between these parts?

A: The housing color differs. The 1-1969595-8 features Natural color, while the 1-1969594-8 features White color. This is a cosmetic difference with no impact on electrical performance or mechanical compatibility.

Q: Can I use the White housing (1-1969594-8) in place of the Natural housing (1-1969595-8)?

A: Yes, provided your application does not have specific color requirements. All mechanical, electrical, and environmental specifications are identical.

Q: Do these connectors include contacts?

A: No. Both parts are housings only. Contacts must be sourced separately and installed via crimp termination.

Q: What is the operating temperature range for both parts?

A: Both parts operate across -55°C to 105°C, making them suitable for industrial and automotive applications requiring extended temperature ranges.

Q: Are both parts RoHS compliant?

A: Yes. The 1-1969595-8 carries RoHS Compliant certification, while the 1-1969594-8 carries ROHS3 Compliant certification. Both meet current regulatory requirements.

Q: What mounting configuration do these connectors support?

A: Both parts support panel-mount installation with snap-in attachment and latch holder fastening. This configuration allows for tool-free installation and removal.

Q: What is the pitch specification, and why is it important?

A: Both parts feature 0.098" (2.50mm) pitch with 2-row configuration and identical row spacing. Pitch determines contact spacing and is critical for mating with corresponding plug connectors.

Q: What insulation material is used in these housings?

A: Both parts use Polyamide (PA) Nylon insulation material, providing durability and thermal stability across the operating temperature range.

Q: What is the Moisture Sensitivity Level (MSL) rating?

A: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions for storage or handling.
