TE Connectivity AMP Connectors 1-179029-0 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1-179029-0 is a 200 Position Connector Plug with Center Strip Contacts designed for Surface Mount applications. This rectangular connector features gold-plated contacts and is part of the Free Height (FH) series. The component is currently Active in product status and maintains an inventory of 1040 pieces in new original condition. Substitute parts are identified when packaging configurations differ, compliance certifications vary, or alternative sourcing is required while maintaining identical electrical and mechanical specifications.

Substiute Parts

1-179029-0

TE Connectivity AMP ConnectorsIn Stock: 10701-179029-0 Datasheet

Current PartRFQ

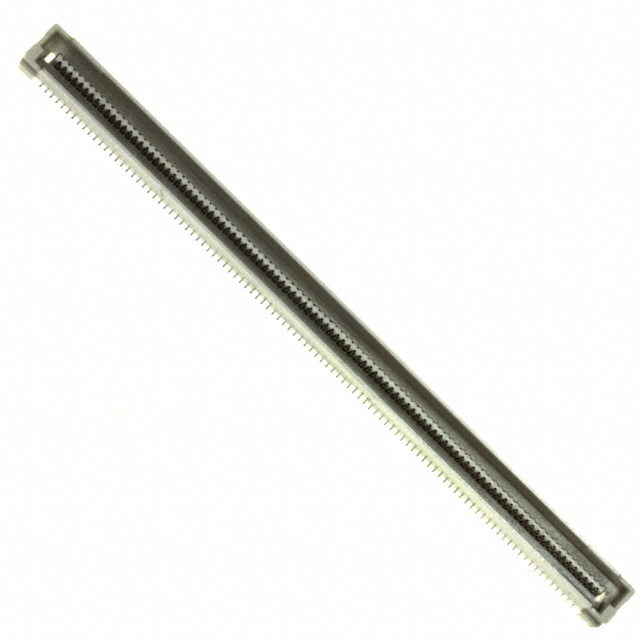

1-5179029-0

TE Connectivity AMP ConnectorsIn Stock: 25281-5179029-0 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-179029-0 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Number of Positions: 200
• Pitch: 0.031" (0.80mm)
• Number of Rows: 2
• Contact Finish: Gold
• Contact Finish Thickness: 8.00µin (0.203µm)

Mechanical Parameters:

• Connector Type: Plug, Center Strip Contacts
• Mounting Type: Surface Mount
• Height Above Board: 0.220" (5.59mm)
• Mated Stacking Heights: 6mm, 10mm, 14mm, 18mm
• Features: Board Guide
• Series: Free Height (FH)

Environmental Parameters:

• Moisture Sensitivity Level (MSL): 1 (Unlimited)

The substitute part 1-5179029-0 maintains identical electrical and mechanical specifications. Differences exist only in packaging configuration and compliance certifications, which do not affect functional interchangeability in the application.

Parameter Comparison

Engineering Selection Recommendations

Both the 1-179029-0 and 1-5179029-0 are Active products from TE Connectivity AMP Connectors and are functionally equivalent for all electrical and mechanical applications. Selection between these parts is based on the following criteria:

Packaging Consideration: The substitute part 1-5179029-0 is supplied in Tube packaging, whereas the main part 1-179029-0 packaging is not specified. Tube packaging is standard for automated assembly processes and high-volume production environments.

Compliance Status: The substitute part 1-5179029-0 carries ROHS3 Compliance certification and REACH Unaffected status, providing explicit regulatory compliance documentation. The main part 1-179029-0 lists RoHS Status as Not applicable and REACH Status as Vendor Undefined. Applications requiring documented compliance with ROHS3 or REACH regulations should specify the 1-5179029-0.

Inventory Availability: The substitute part 1-5179029-0 maintains higher inventory levels (2480 pieces) compared to the main part 1-179029-0 (1040 pieces), supporting extended lead time requirements and volume orders.

Frequently Asked Questions (FAQ)

Q: Are the 1-179029-0 and 1-5179029-0 electrically identical?

A: Yes. Both parts maintain identical electrical specifications including 200 positions, 0.031" (0.80mm) pitch, 2-row configuration, gold contact finish at 8.00µin thickness, and identical mated stacking heights of 6mm, 10mm, 14mm, and 18mm.

Q: Are the 1-179029-0 and 1-5179029-0 mechanically identical?

A: Yes. Both parts are Surface Mount connectors with identical mechanical specifications including 0.220" (5.59mm) height above board, Board Guide features, and Free Height (FH) series designation.

Q: What is the primary difference between these two parts?

A: The primary differences are packaging configuration and compliance certifications. The 1-5179029-0 is supplied in Tube packaging and carries ROHS3 Compliance and REACH Unaffected certifications, while the 1-179029-0 packaging is not specified and compliance status is undefined or not applicable.

Q: Can I substitute 1-5179029-0 for 1-179029-0 in my design?

A: Yes, the 1-5179029-0 is a direct functional substitute for 1-179029-0. All electrical and mechanical parameters are identical, ensuring compatibility in the same application.

Q: Which part should I select for a new design?

A: Selection depends on specific requirements. If ROHS3 compliance documentation is required, select 1-5179029-0. If packaging preference or inventory availability is the determining factor, evaluate based on your procurement and assembly processes.

Q: What is the Moisture Sensitivity Level (MSL) for both parts?

A: Both parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or shelf life.

Q: Are both parts currently in production?

A: Yes, both parts maintain Active product status with TE Connectivity AMP Connectors.
