TE Connectivity AMP Connectors 1-1735447-1 Equivalent & Substitute Parts

Part Overview

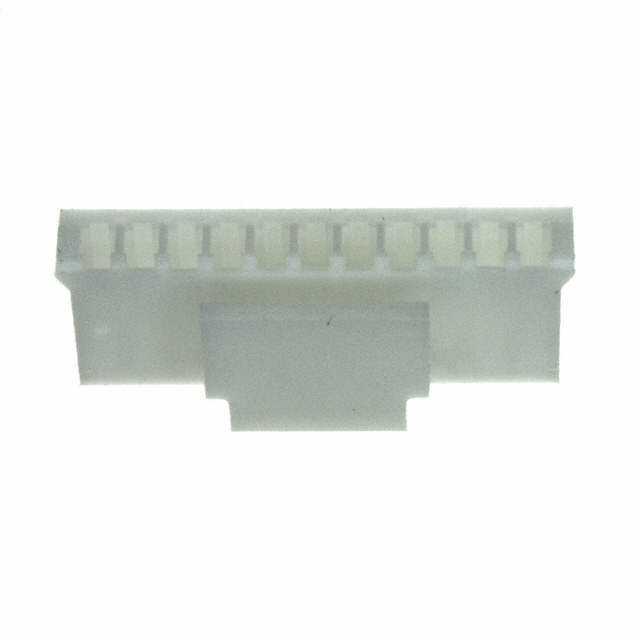

The TE Connectivity AMP Connectors 1-1735447-1 is an 11-position rectangular connector receptacle housing designed for high-performance interconnect applications. This connector operates within the High Performance Interconnect (HPI) series and features a 2.00mm pitch with crimp contact termination and latch lock fastening. The part is currently active in production and maintains full ROHS3 compliance with unlimited moisture sensitivity rating (MSL 1). Alternative equivalent parts are necessary when primary inventory is unavailable, when specific insulation material requirements differ, or when operating temperature ranges require extended specifications beyond the standard -25°C to 85°C range.

Substiute Parts

1-1735447-1

TE Connectivity AMP ConnectorsIn Stock: 10221-1735447-1 Datasheet

Current PartRFQ

0355071100

MolexIn Stock: 119800355071100 Datasheet

Parametric EquivalentRFQ

SJH2K-11HG

JAMIn Stock: 6099SJH2K-11HG Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 1-1735447-1 is determined by strict alignment with the following core parameters: connector type (receptacle), contact type (female socket), number of positions (11), pitch (2.00mm), number of rows (1), mounting type (free hanging in-line), contact termination (crimp), and fastening type (latch lock). All identified substitute parts meet these mandatory criteria without exception.

The Molex 0355071100 and JAM SJH2K-11HG both satisfy all core electrical and mechanical parameters required for direct substitution. Variations in secondary parameters such as insulation material composition, operating temperature range, and color do not affect functional compatibility within the specified substitution category. Both substitute parts maintain ROHS3 compliance and are classified as active products with established production status.

Parameter Comparison

Engineering Selection Recommendations

All three rectangular connector receptacle housings maintain active production status and full ROHS3 compliance, establishing them as valid alternatives within the 11-position, 2.00mm pitch category.

TE Connectivity 1-1735447-1 serves as the primary reference specification with thermoplastic insulation material and an operating temperature range of -25°C to 85°C. This part is suitable for standard industrial and commercial applications within the specified thermal envelope.

Molex 0355071100 provides an extended operating temperature range of -40°C to 105°C with polyester insulation material. This substitute is appropriate for applications requiring enhanced thermal performance or operation in extreme cold environments. The Sherlock 35507 series designation indicates compatibility with established Molex connector ecosystems. REACH status is documented as unaffected, providing additional regulatory clarity.

JAM SJH2K-11HG offers polyamide (PA66) nylon 6/6 insulation material with an operating temperature range of -40°C to 85°C. The white color designation distinguishes this part visually from the natural-colored alternatives. Moisture sensitivity level is not applicable for this part, indicating different material handling requirements during storage and assembly.

Selection between these three parts depends on specific application requirements: thermal operating range, insulation material compatibility with adjacent components, color coding requirements, and regulatory documentation needs.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0355071100 be used as a direct replacement for the TE Connectivity 1-1735447-1?

A: Yes. Both parts share identical core specifications: 11-position receptacle housing, 2.00mm pitch, female socket contacts, crimp termination, latch lock fastening, and free hanging in-line mounting. The extended operating temperature range (-40°C to 105°C) of the Molex part encompasses the TE Connectivity operating range (-25°C to 85°C), ensuring functional compatibility.

Q: What is the significance of the different insulation materials?

A: The TE Connectivity part uses thermoplastic insulation, the Molex part uses polyester, and the JAM part uses polyamide (PA66) nylon 6/6. These materials differ in chemical resistance, mechanical properties, and thermal stability. Selection should align with the specific environmental conditions and adjacent material compatibility requirements of the application.

Q: Does the color difference between the natural and white housings affect electrical performance?

A: No. Color is a visual identification feature only and does not affect electrical or mechanical performance. The white JAM SJH2K-11HG housing provides identical functional characteristics to the natural-colored alternatives.

Q: Are contacts included with these connector housings?

A: No. All three parts are housings only. Contacts must be sourced separately and are not included in the package.

Q: What does MSL 1 (Unlimited) mean for the TE Connectivity and Molex parts?

A: MSL 1 indicates the lowest moisture sensitivity level, meaning these parts have unlimited shelf life and do not require special moisture-controlled storage conditions. The JAM part lists MSL as not applicable, indicating different material composition that does not require moisture sensitivity classification.

Q: Which part should be selected for applications operating below -25°C?

A: Both the Molex 0355071100 (-40°C minimum) and JAM SJH2K-11HG (-40°C minimum) are suitable for low-temperature applications. The TE Connectivity 1-1735447-1 is rated only to -25°C and should not be used in colder environments.

Q: Are all three parts ROHS3 compliant?

A: Yes. All three parts maintain ROHS3 compliance, confirming adherence to restricted substance regulations for lead, cadmium, mercury, hexavalent chromium, and specified brominated flame retardants.
