TE Connectivity 1-172332-9 Rectangular Connector Housing Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-172332-9 is a 9-position rectangular connector housing from the Mini-Universal MATE-N-LOK series. This receptacle housing features a 0.163" (4.14mm) pitch configuration with panel mount, snap-in mounting capability and crimp contact termination. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system integration. Substitute parts maintain identical electrical and mechanical specifications while offering active product status and improved availability.

Substiute Parts

1-172332-9

TE Connectivity AMP ConnectorsIn Stock: 8831-172332-9 Datasheet

Current PartRFQ

1-172161-9

TE Connectivity AMP ConnectorsIn Stock: 65321-172161-9 Datasheet

Parametric EquivalentRFQ

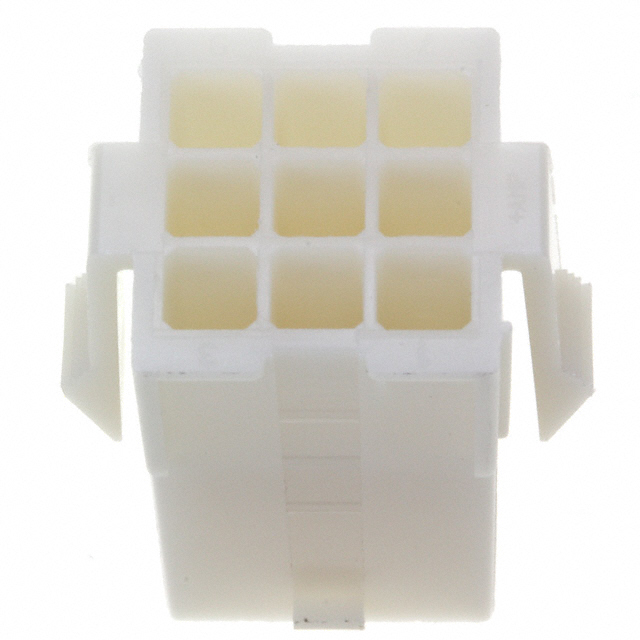

172161-1

TE Connectivity AMP ConnectorsIn Stock: 9306172161-1 Datasheet

Parametric EquivalentRFQ

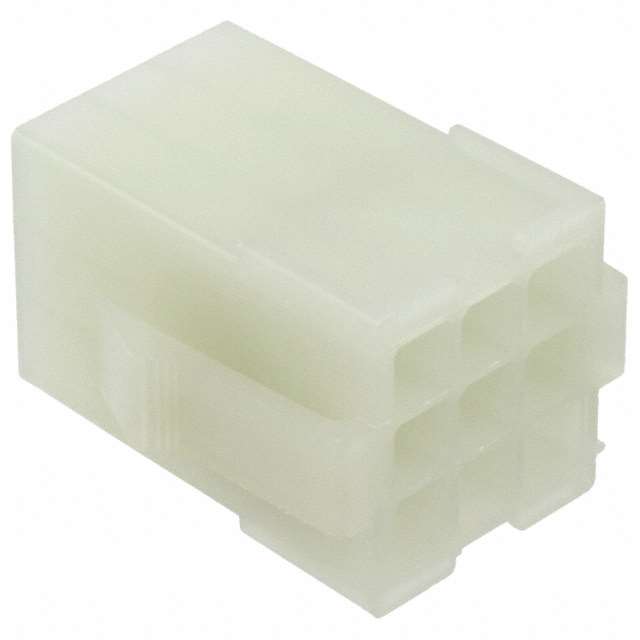

172332-1

TE Connectivity AMP ConnectorsIn Stock: 4824172332-1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1-172332-9 are qualified based on strict parametric equivalence across all electrical and mechanical specifications. The substitution logic is based on the following critical parameters that must remain constant:

• Connector type: Receptacle
• Number of positions: 9
• Pitch configuration: 0.163" (4.14mm)
• Number of rows: 3
• Row spacing: 0.163" (4.14mm)
• Mounting type: Panel Mount, Snap-In
• Contact termination: Crimp
• Fastening type: Locking Ramp
• Insulation material: Polyamide (PA66), Nylon 6/6
• Operating temperature range: -20°C ~ 105°C
• Series: Mini-Universal MATE-N-LOK

Substitute parts 1-172161-9, 172161-1, and 172332-1 maintain full parametric equivalence to the main part across all specified electrical and mechanical parameters. Variations in color (Black versus Natural) and packaging format (Bulk) do not affect functional interchangeability within the Mini-Universal MATE-N-LOK connector system.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts (1-172161-9, 172161-1, and 172332-1) are qualified replacements for the obsolete 1-172332-9 based on complete parametric equivalence and active product status.

1-172161-9 is the direct functional equivalent with matching black color specification. This part carries ROHS3 Compliant certification, representing the most current regulatory compliance standard. Selection of this part is appropriate when color specification and enhanced compliance status are required.

172161-1 and 172332-1 are functionally equivalent alternatives with natural color specification. Both parts carry RoHS Compliant certification. These parts are suitable for applications where color is not a critical specification or where natural color is acceptable. The natural color variants provide higher inventory availability (9200 and 4795 units respectively) compared to the black variant.

All substitute parts maintain identical electrical performance, mechanical compatibility, and thermal operating range. Selection between alternatives should be based on color requirement and compliance certification level appropriate to the application.

Frequently Asked Questions (FAQ)

Q: Can 1-172161-9 be used as a direct replacement for 1-172332-9?

A: Yes. The 1-172161-9 maintains complete parametric equivalence across all electrical and mechanical specifications. The primary difference is product status (Active versus Obsolete) and RoHS certification level (ROHS3 versus RoHS). Both parts are black receptacle housings with 9 positions, 0.163" pitch, and identical mounting and termination specifications.

Q: What is the difference between the black and natural color variants?

A: The black variant (1-172332-9 and 1-172161-9) and natural color variants (172161-1 and 172332-1) are functionally identical across all electrical and mechanical parameters. Color selection is determined by application requirements and visual identification needs. All variants maintain the same operating temperature range, insulation material, and connector specifications.

Q: Are all substitute parts compatible with existing Mini-Universal MATE-N-LOK connector systems?

A: Yes. All substitute parts are members of the Mini-Universal MATE-N-LOK series and maintain identical pitch, row spacing, mounting type, and fastening specifications. They are fully compatible with existing connector systems designed for 9-position, 0.163" pitch receptacle housings.

Q: What does the packaging difference (Bulk) mean for part selection?

A: The substitute parts are supplied in bulk packaging format. This affects procurement quantity and handling but does not impact the functional or mechanical specifications of the connector housing itself. The housing specifications remain identical regardless of packaging format.

Q: Why is the main part 1-172332-9 classified as obsolete?

A: Obsolete status indicates the part is no longer in active production. The substitute parts listed maintain identical specifications and are actively manufactured, providing continuity for applications currently using the obsolete part.

Q: Are there any temperature or environmental limitations when substituting these parts?

A: No. All parts, including the main part and substitutes, operate across the identical temperature range of -20°C to 105°C. All parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions. Environmental operating conditions remain unchanged across all equivalent parts.
