TE Connectivity 1-1634624-0 BNC Connector Equivalent & Substitute Parts

Part Overview

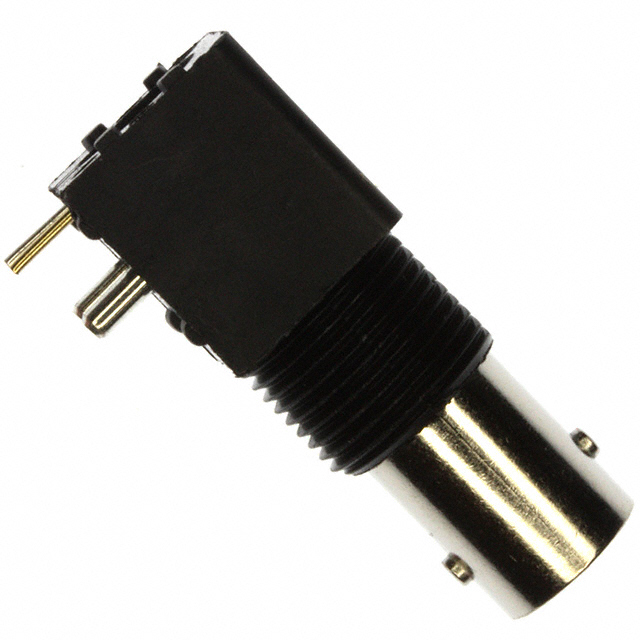

The TE Connectivity 1-1634624-0 is a BNC connector jack designed for 75-ohm coaxial RF applications. This female socket connector features right-angle panel mount configuration with through-hole solder termination and bayonet lock fastening. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and procurement planning.

Substiute Parts

1-1634624-0

TE Connectivity AMP ConnectorsIn Stock: 10951-1634624-0 Datasheet

Current PartRFQ

1-1634622-0

TE Connectivity AMP ConnectorsIn Stock: 9541-1634622-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the TE Connectivity 1-1634624-0 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Impedance: 75 Ohms (required for RF signal integrity)
• Frequency - Max: 2 GHz (operational bandwidth limit)
• Voltage Rating: 500 V (electrical stress tolerance)

Mechanical Parameters:

• Connector Style: BNC (physical interface standard)
• Connector Type: Jack, Female Socket (mating interface)
• Mounting Type: Panel Mount, Through Hole, Right Angle (PCB integration method)
• Fastening Type: Bayonet Lock (connection mechanism)

Termination Parameters:

• Contact Termination: Solder (electrical connection method)
• Shield Termination: Solder (shielding connection method)

Environmental Parameters:

• Operating Temperature: -55°C ~ 85°C (thermal operating range)
• Mating Cycles: 500 (mechanical durability specification)

The substitute part 1-1634622-0 maintains full equivalence across all critical parameters, confirming direct substitutability for the obsolete 1-1634624-0.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1-1634622-0 is a direct functional equivalent to the 1-1634624-0 across all critical electrical, mechanical, and environmental parameters. Both connectors are classified as obsolete products, indicating that neither part is in active production.

Compliance Considerations:

Both parts maintain RoHS compliance and carry identical ECCN (EAR99) and HTSUS classifications, confirming regulatory equivalence for procurement and export purposes. The substitute part carries REACH Affected status, whereas the main part lists REACH status as vendor undefined. This distinction requires verification against specific application requirements and regional regulatory frameworks.

Inventory Availability:

The substitute part 1-1634622-0 is available with 887 units in stock, compared to 1,068 units of the main part. Both parts are classified as new original inventory.

Series Designation:

The main part carries dual series designation (ZDC, Greenpar), while the substitute is designated as Greenpar series only. This difference does not affect electrical or mechanical compatibility.

Selection between these parts should be based on inventory availability, REACH compliance requirements for the specific application region, and any legacy system documentation that may reference series designation.

Frequently Asked Questions (FAQ)

Q: Can the 1-1634622-0 be used as a direct replacement for the 1-1634624-0 in existing designs?

A: Yes. The 1-1634622-0 maintains identical electrical specifications (75-ohm impedance, 2 GHz maximum frequency, 500 V rating), mechanical configuration (BNC jack, female socket, right-angle panel mount, through-hole solder termination), and environmental operating parameters (-55°C to 85°C, 500 mating cycles). Direct substitution is supported without design modification.

Q: What is the significance of the series designation difference between these parts?

A: The main part is designated as both ZDC and Greenpar series, while the substitute is Greenpar series only. This difference reflects manufacturing lineage but does not affect connector performance, compatibility, or electrical characteristics. Both parts are functionally equivalent.

Q: Are there compliance differences between these two parts?

A: Both parts are RoHS compliant and carry identical ECCN and HTSUS classifications. The substitute part carries REACH Affected status, while the main part lists REACH status as vendor undefined. Applications subject to REACH regulations should confirm compliance requirements with the specific application region and end-use classification.

Q: What does the obsolete product status mean for these connectors?

A: Both parts are classified as obsolete, indicating they are no longer in active production by TE Connectivity. Inventory availability is limited to existing stock. Long-term procurement planning should account for potential future unavailability of both parts.

Q: Are the physical dimensions and PCB footprints identical between these connectors?

A: Both connectors share identical mounting specifications: panel mount, through-hole, right-angle configuration with bayonet lock fastening. PCB integration requirements are equivalent. Specific dimensional data should be referenced from TE Connectivity technical documentation for precise layout planning.

Q: What is the difference in inventory levels between these parts?

A: The main part 1-1634624-0 has 1,068 units in stock, while the substitute 1-1634622-0 has 887 units available. Both are classified as new original inventory. Procurement decisions should account for current availability and project timeline requirements.
